5. A 45° line represents a stereo signal that is perfectly panned (or a phase value of 0°, as shown in
figure 51). Anything differing from the 45° slant will begin to be out of phase. A line that lays perfectly
horizontal (along the X axis) shows two signals that are perfectly out-of-phase and that will cancel
each other out when played in mono. A vertical line (a line that runs along the Y axis) shows the
two signals are in perfect mono.
6. The actual phase of the signal will be displayed to the right of display. The phase is displayed and
updated in 1 degree increments.

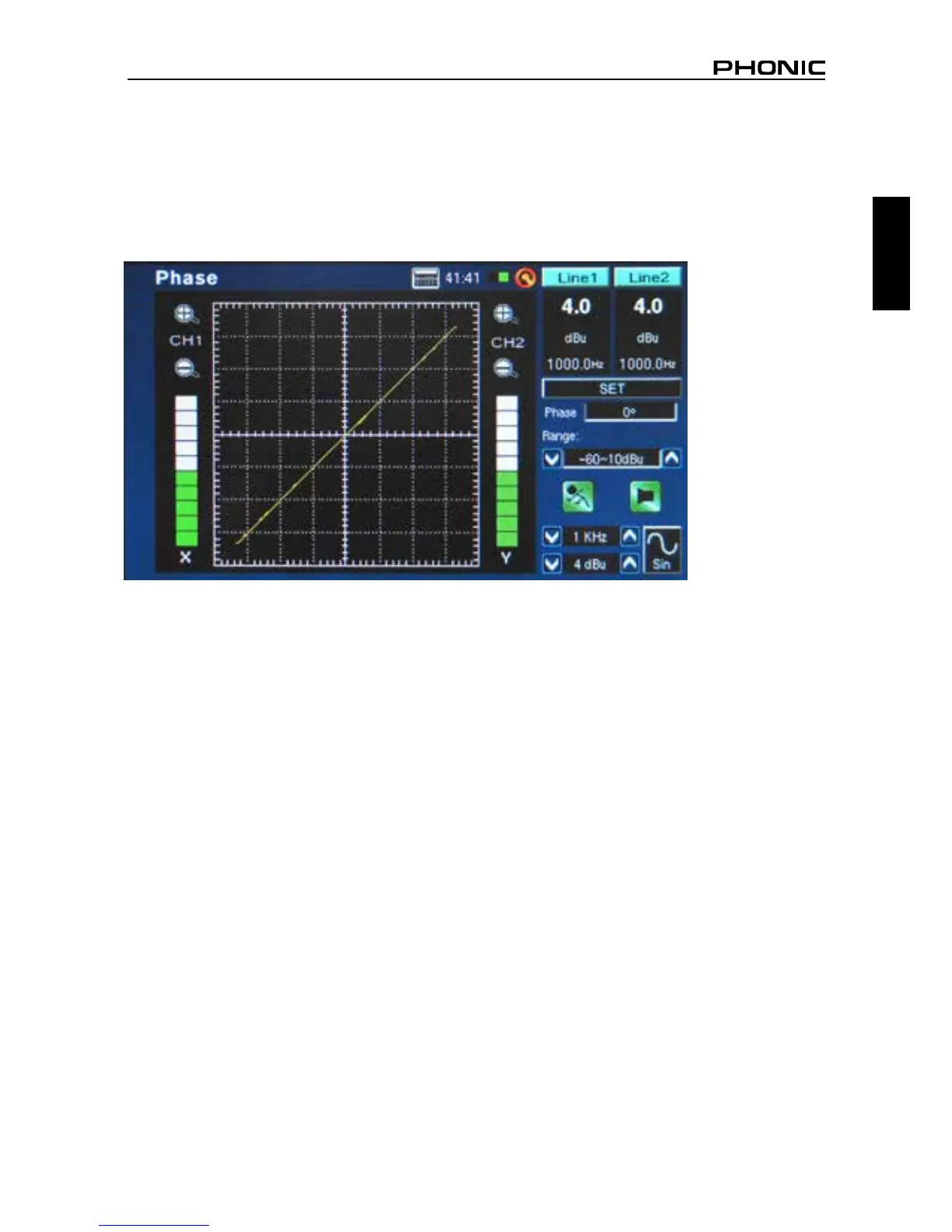

figure 51
