Introduction to piCOMPACT®23 SMART IO-Link Ready 2 channel
3. Introduction to piCOMPACT
®
23 SMART IO-Link Ready 2
channel
3.1 Manufacturer
Piab AB
P.O. Box 4501
SE-18304 TÄBY
SWEDEN
3.1.1 Identification label
Each unit is identified by a label with identification
information. For any communication with Piab AB or
service centers always refer to the label information.
3.2 Product overview
Overview, IO-Link Ready 2 channels
E
A
G
B
A
B
C
D
E
F
G
I

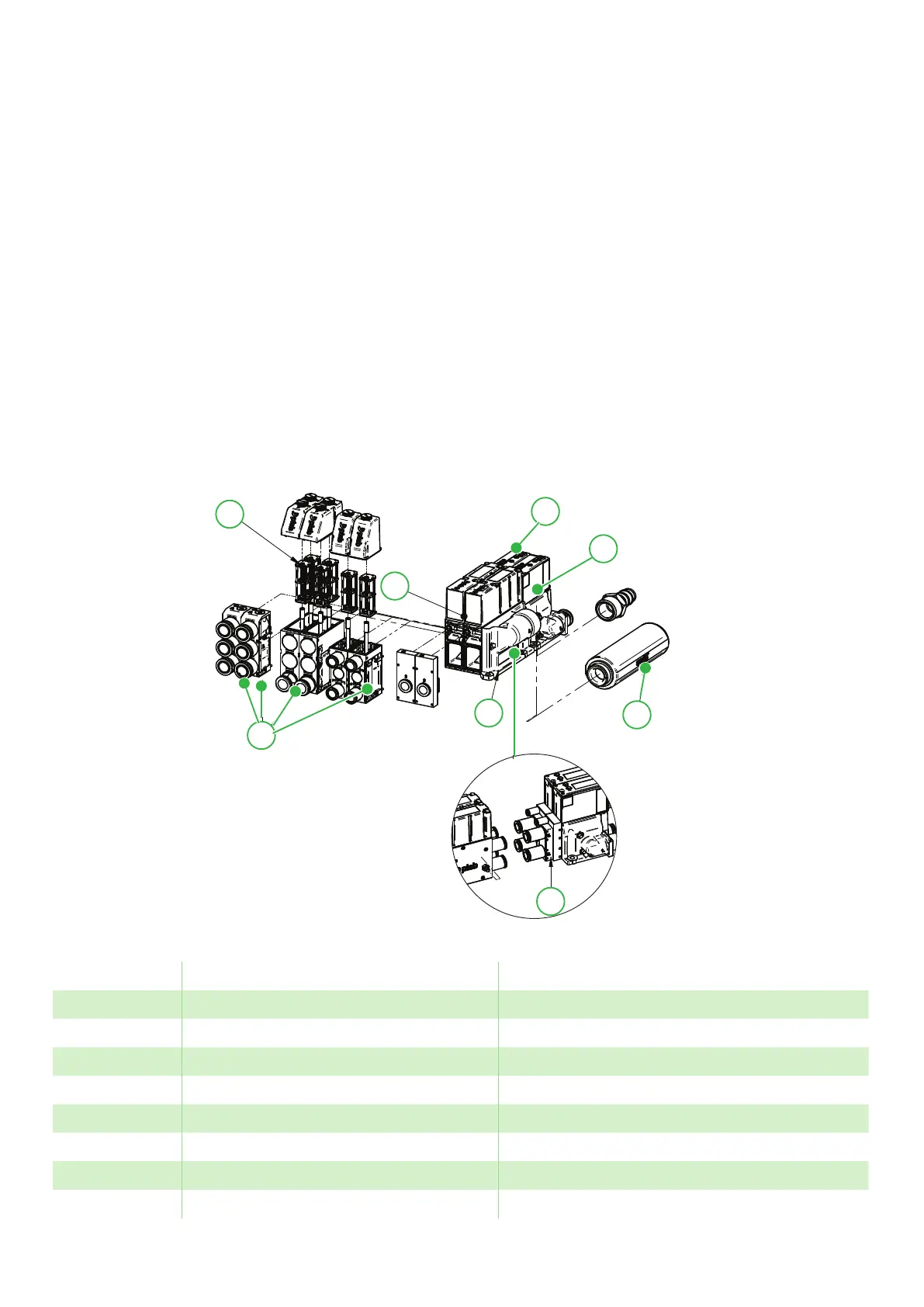

Figure 1 Overview, IO-Link Ready 2 channels
Pos. Description Note
A Vacuum connection block
B Vacuum filter
C IO-Link
D Valve module
E 1x COAX® cartridge / 2x COAX® cartridge
F Gable Exhaust on the side,not for split, G 3/4” threads
G Side mounted silencer Exhaust on the side
I Connection block Only for split
