PIAGGIO Fly 150 4T - Turn Signal Lights Diagram

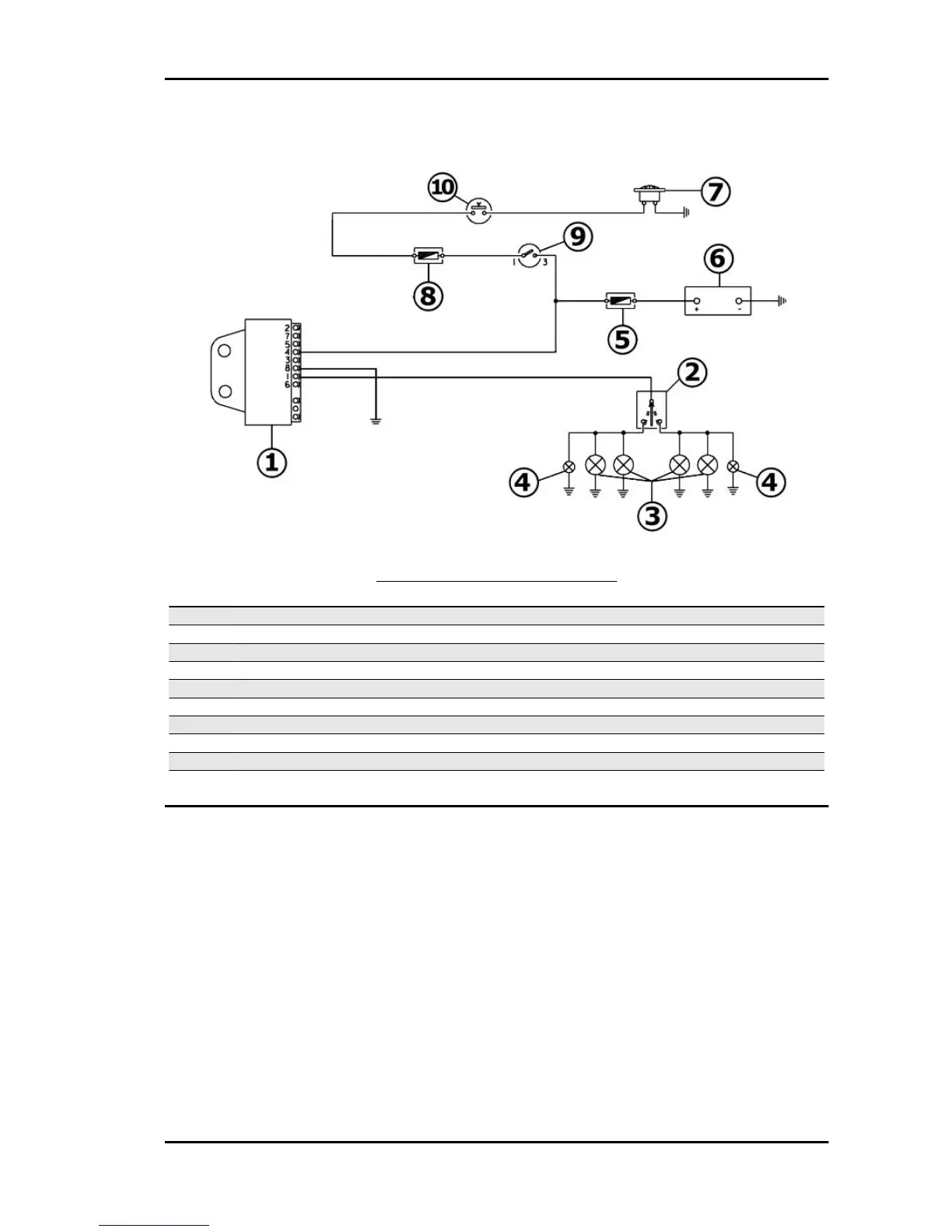

Turn signal lights
TURN INDICATORS AND HORN
Specification Desc./Quantity
1 electronic control unit
2 Indicators switch
3 4 Turn indicator bulbs 12V-10W
4 Turn signal warning light bulbs 12V - 2W
5 Main fusible 15A
6 Battery 12V-9Ah
7 Horn
8 Fuse 7.5 A
9 Key switch
10 Horn button
Fly 125 - 150 4T Electrical system
