This section describes the operations to be carried out on the engine and the tools to be used.
Automatic transmission
Transmission cover

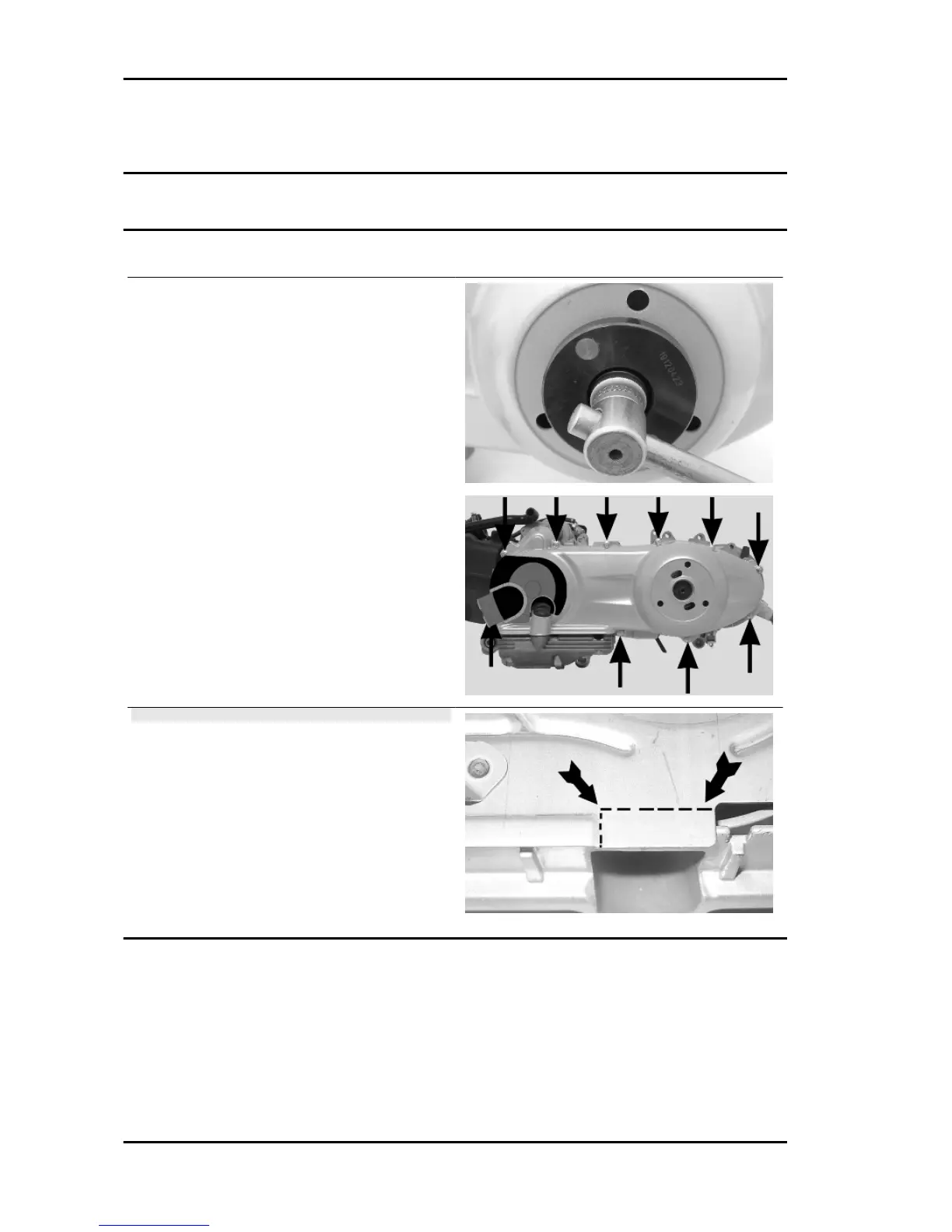

- To remove the transmission cover it is necessary
to remove the rear plastic cover first by inserting a
screwdriver in the corresponding slotted holes.
Using the clutch bell lock wrench, remove the driv-
en pulley axle locking nut and recover the washer.
- Remove the cap/dipstick from the engine oil filling
hole.
- Remove the 10 screws and the earth cable fas-
tened under one of them.
- Remove the transmission cover. If this operation
is performed directly on the vehicle, it is necessary
to remove the cooling air coupling and the three air
filter housing retainers.
Specific tooling
020423Y driven pulley lock wrench
CAUTION
Maybe a first batch of vehicles features an air
manifold bulkhead with the tail highlighted in the
figure. While removing the transmission cover,
take care not to deform this tongue with the fixed
driving half-pulley.
Engine Fly 125 - 150 4T
ENG - 84
