6 - 8
06_017

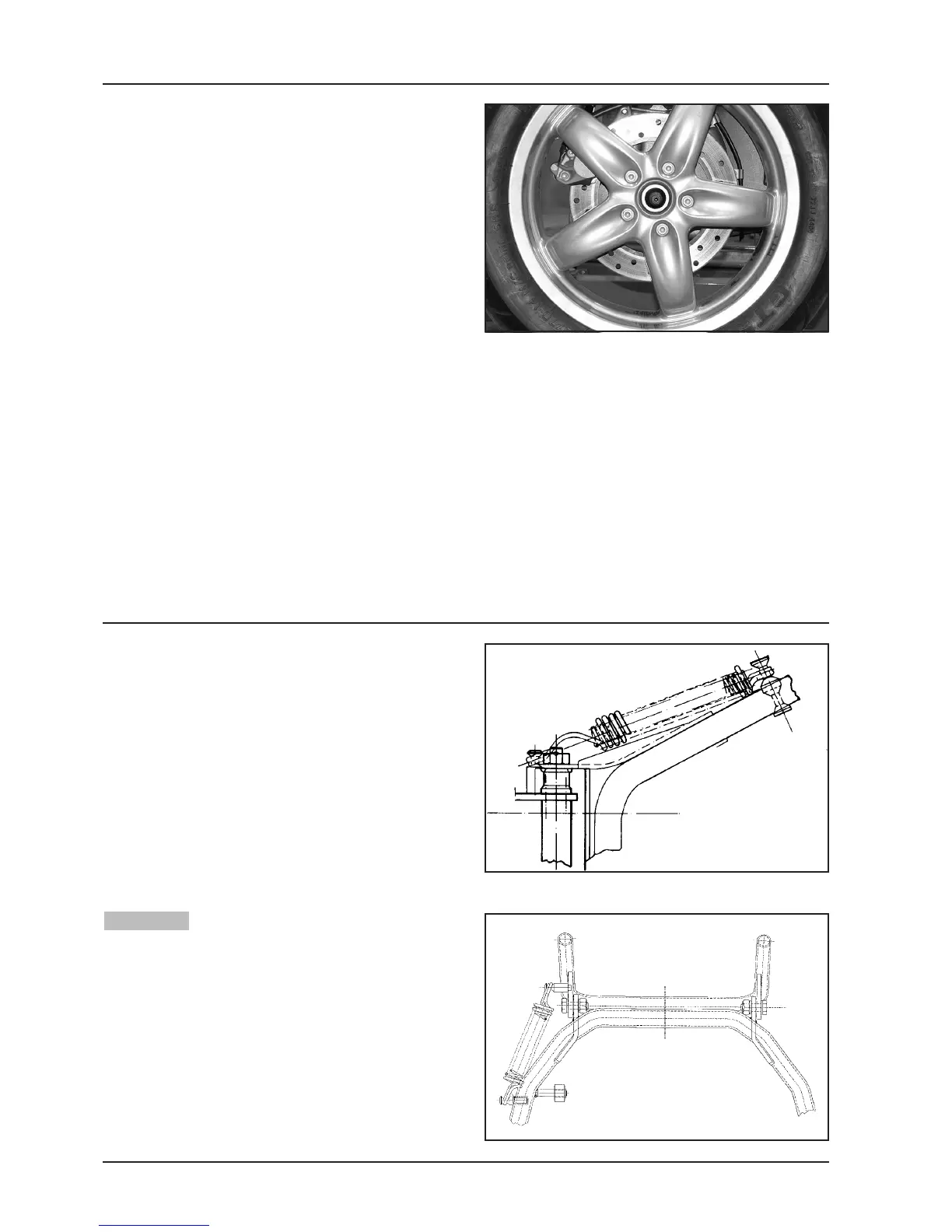

Central stand (Basic model)
Removal
- Release the springs.
- Unloose the r.h. and l.h. nut.
- Remove the screws.
Fitting
Perform the above procedure in reverse order and then
move the seal rings into their seats.
06_018
Rear wheel
Removal
- Remove the shock absorber as previously described.
- Remove the silencer and the bracket as described in
Chapter 5-Engine.
- Remove the 5 screws fixing the rear wheel to the hub.
- Take down the wheel.
Fitting
Fit the wheel using the reverse procedure to the re-
moval. Tighten the rear wheel fixing screws and the
axle locknut with the prescribed torques.
Tightening torque:
Rear wheel rim screws: 20 - 25 N·m
Front and rear suspensions
06_019
Warning
- Lubricate the following parts with TU-
TELA Z2 grease: spring connection pins, bushes on
stand clamps.
Tightening torques:
Central stand bolt: 25 - 30 N·m
