SECTION 2 - TECHNICAL DESCRIPTION
pickering
ISOLATED MILLIVOLT THERMOCOUPLE SIMULATOR 41-761
50mV/div
3.7ms
50mV/div
4ms
50mV/div
800µs

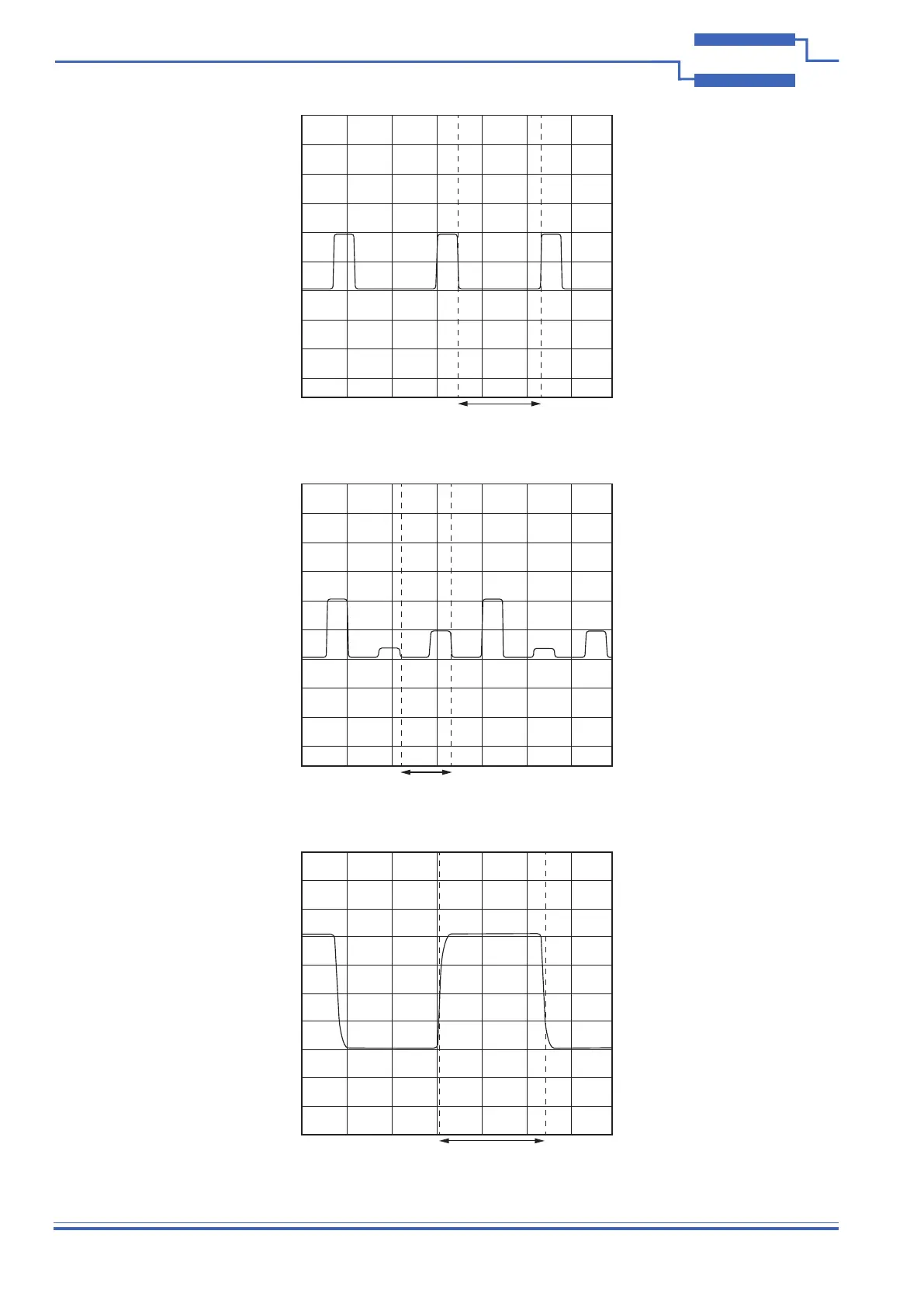

Figure 2.3 - Voltage Change: 0mV to 100mV 3.7ms Auto Range
Figure 2.4 - Voltage Change: 15mV to 45mV to 100mV 4ms per operation Auto Range
Figure 2.5 - Voltage Change: -100mV to 100mV 800µs Auto Range
