ISOLATED MILLIVOLT THERMOCOUPLE SIMULATOR 41-761
SECTION 8 - ACCESSORIES
COMPENSATION BLOCK
The Compensation Block is a accessory specically designed for the 41-761 Isolated Millivolt Thermocouple
Simulator Module. This block will give the user the temperature of the front panel junction of the module to cabling.
This data can then be combined with other factors, temperature on the other end of the cable for example, to
compensate the thermocouple hence increase the accuracy.
This compensation block is designed with four high precision (max +/-0.5ºC) and resolution (up to +0.0625ºC)
temperature sensors laid out in four sections, with minimum conductance between sections, aims to give the user
the temperature on different channels in different sections.
Figure 8.1 shows the pin allocations for the Compensation Block and Figures 8.2 and 8.3 show the Soft Front Panel
for the Thermocouple Simulator with and without the Compensation Block attached to the module. Table 8.1 shows
the relationship between the compensation temperatures on the Soft Front Panel and the Thermocouple Simulator
channnel numbers.
Vcold32 Vcold31 Vcold30 Vcold29 FP_GND Vo32 Vo31 Vo30 Vo29 Vcold24 Vcold23 Vcold22 Vcold21 FP_GND Vo24 Vo23 Vo22 Vo21
Vcold25 Vcold26 Vcold27 Vcold28 FP_GND Vo25 Vo26 Vo27 Vo28 Vcold17 Vcold18 Vcold19 Vcold20 FP_GND Vo17 Vo18 Vo19 Vo20
Vcold16 Vcold15 Vcold14 Vcold13
FP_GND
Vo16 Vo15 Vo14 Vo13
Vcold8 Vcold7 Vcold6 Vcold5
FP_GND
Vo8 Vo7 Vo6 Vo5
Vcold9
Vcold10 Vcold11 Vcold12
FP_GND
Vo9
Vo10 Vo11 Vo12
Vcold1 Vcold2 Vcold3 Vcold4
FP_GND
Vo1 Vo2 Vo3 Vo4
Cal0 CalCold FP_GND

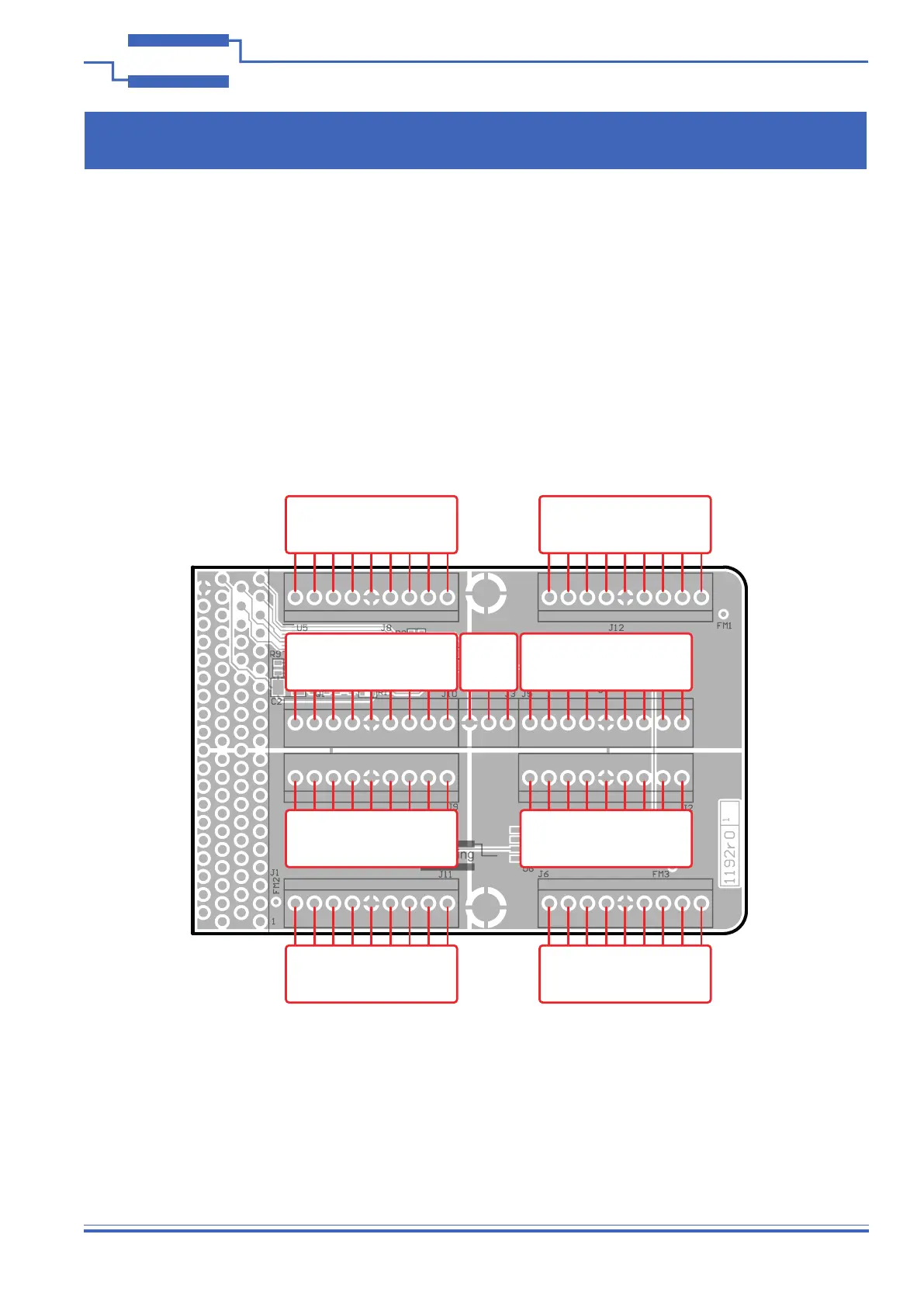

Figure 8.1 - Pinout for the 40-965-912 Compensation Block
