Page 8.10
SECTION 8 - ACCESSORIES
pickering
ISOLATED MILLIVOLT THERMOCOUPLE SIMULATOR 41-761

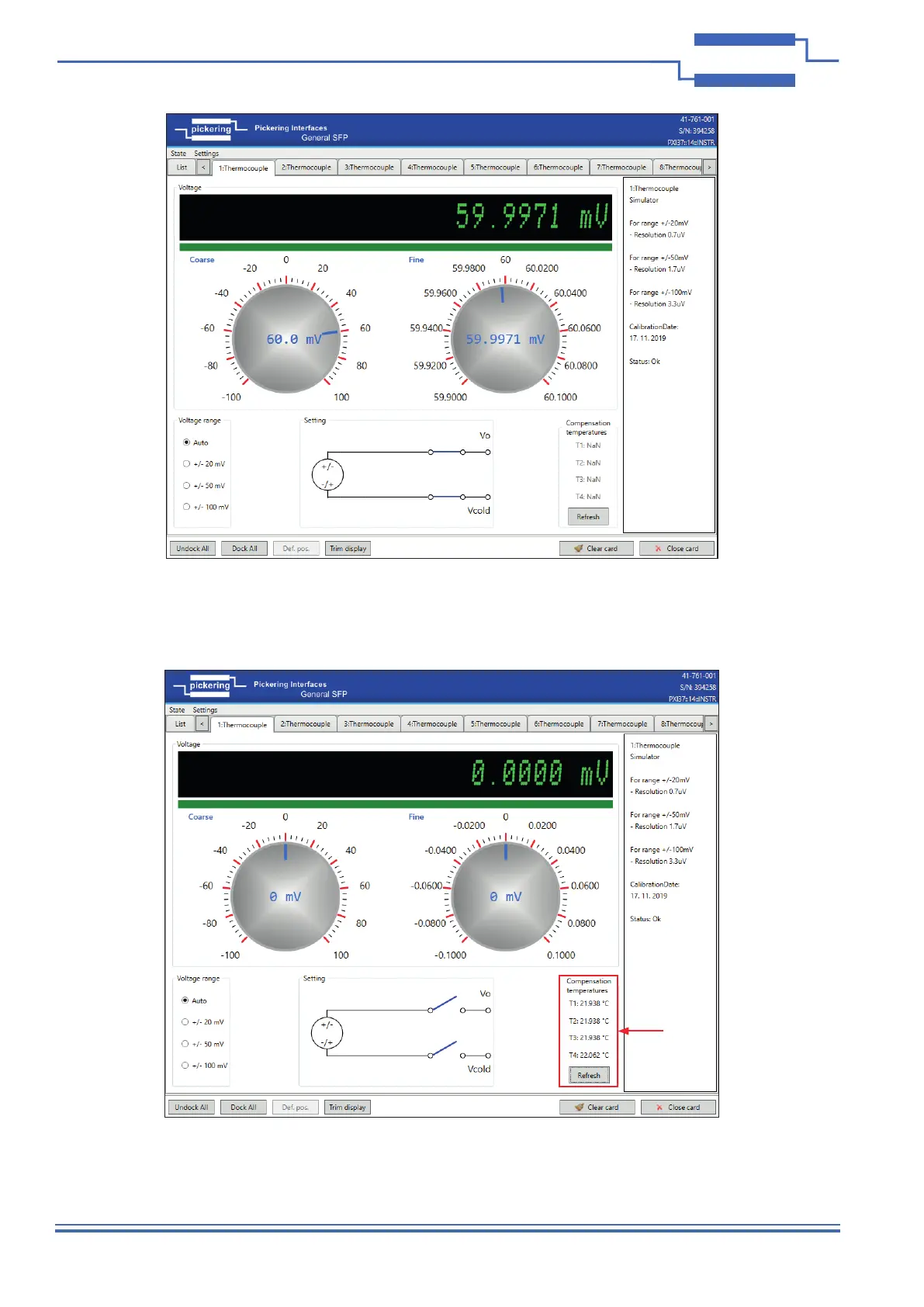

Figure 8.2 - Soft Front Panel for the Isolated Millivolt Thermocouple Simulator Module
Without Compensation Block
Figure 8.3 - Soft Front Panel for the Isolated Millivolt Thermocouple Simulator Module
With Compensation Block Attached
Showing T1, T2, T3 & T4 Compensation Temperatures
