Pickering 41-761 - SECTION 2 - TECHNICAL DESCRIPTION; Isolation Switches; Thermocouple Simulation

Page 2.4
SECTION 2 - TECHNICAL DESCRIPTION
pickering
ISOLATED MILLIVOLT THERMOCOUPLE SIMULATOR 41-761
Vo1
Vcold1
Channel 2
Channel 1
Vo2
Vcold2
Vo32
Vcold32
Channel 32
41-761 UUT

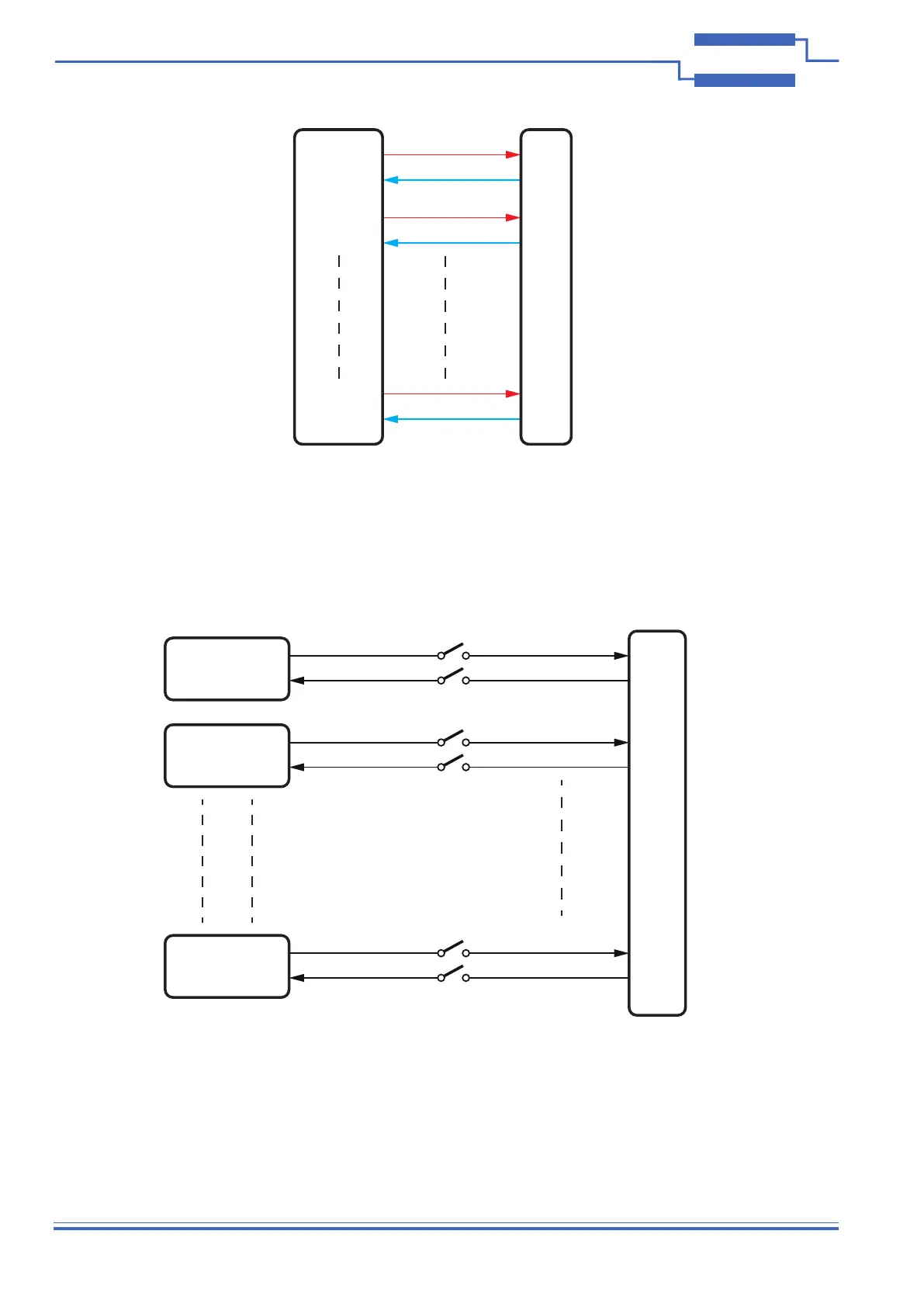

Figure 2.3 - Using The 41-761 Connected Directly To The UUT For Thermocouple Simulation
Isolation Switches
The 41-761 isolation switches on each channel provide the ability to disconnect the channels from the UUT, providing
the benet of not requiring the removal of cabling when wanting to isolate the UUT.
Figure 2.4 - 41-761 Diagram Showing Isolation Switches
78-Pin D-Type
Front Panel
Connector
Voltage
Generator 1
Vo1
Channel 2
Channel 32
Channel 1
Vo2
Vo32
Voltage
Generator 2
Voltage
Generator 32
Vcold1
Vcold2
Vcold32
Thermocouple Simulation
The 41-761 connections to the front panel are copper based. Users should consider the consequences of using
thermocouple materials for connection to 41-761 channels.
