ISOLATED MILLIVOLT THERMOCOUPLE SIMULATOR 41-761
Isolated Thermocouple Simulator – 41-761
pickeringtest.com
Ordering Information
PRELIMINARY DATA
Mating Connectors & Cabling
For connecting the Thermocouple Simulator module to the device
under test we recommend the following cables:
78-pin D-type to 32 mini copper
thermocouple plugs, 1m length*
A078DFR-32M002T5A100
78-pin D-type to 24 mini copper
thermocouple plugs, 1m length*
A078DFR-24M002T5A100
78-pin D-type to 16 mini copper
thermocouple plugs, 1m length*
A078DFR-16M002T5A100
78-pin D-type to 8 mini copper
thermocouple plugs, 1m length*
A078DFR-08M002T5A100
*Other lengths are available.
Other 78-pin cable/connector products are available but may
reduce the performance of the product.
For applications requiring specic thermocouple wiring and
connector types. please contact your local Pickering Sales Ofce.
Product Order Codes
Isolated Millivolt Thermocouple Simulator
32 Channel
24 Channel
16 Channel
8 Channel
41-761-001
41-761-002
41-761-003
41-761-004
Accessories
Compensation Block 40-965-912
Product Customization
Pickering PXI modules are designed and manufactured on our own
exible manufacturing lines, giving complete product control and
enabling simple customization to meet very specic requirements.
All customized products are given a unique part number, fully
documented and may be ordered at any time in the future. Please
contact your local sales ofce to discuss.
Pickering Interfaces is dedicated to developing its Millivolt
Thermocouple Simulation range. If there are any sensor
types or features that are not currently available, please
contact your local sales ofce with details.

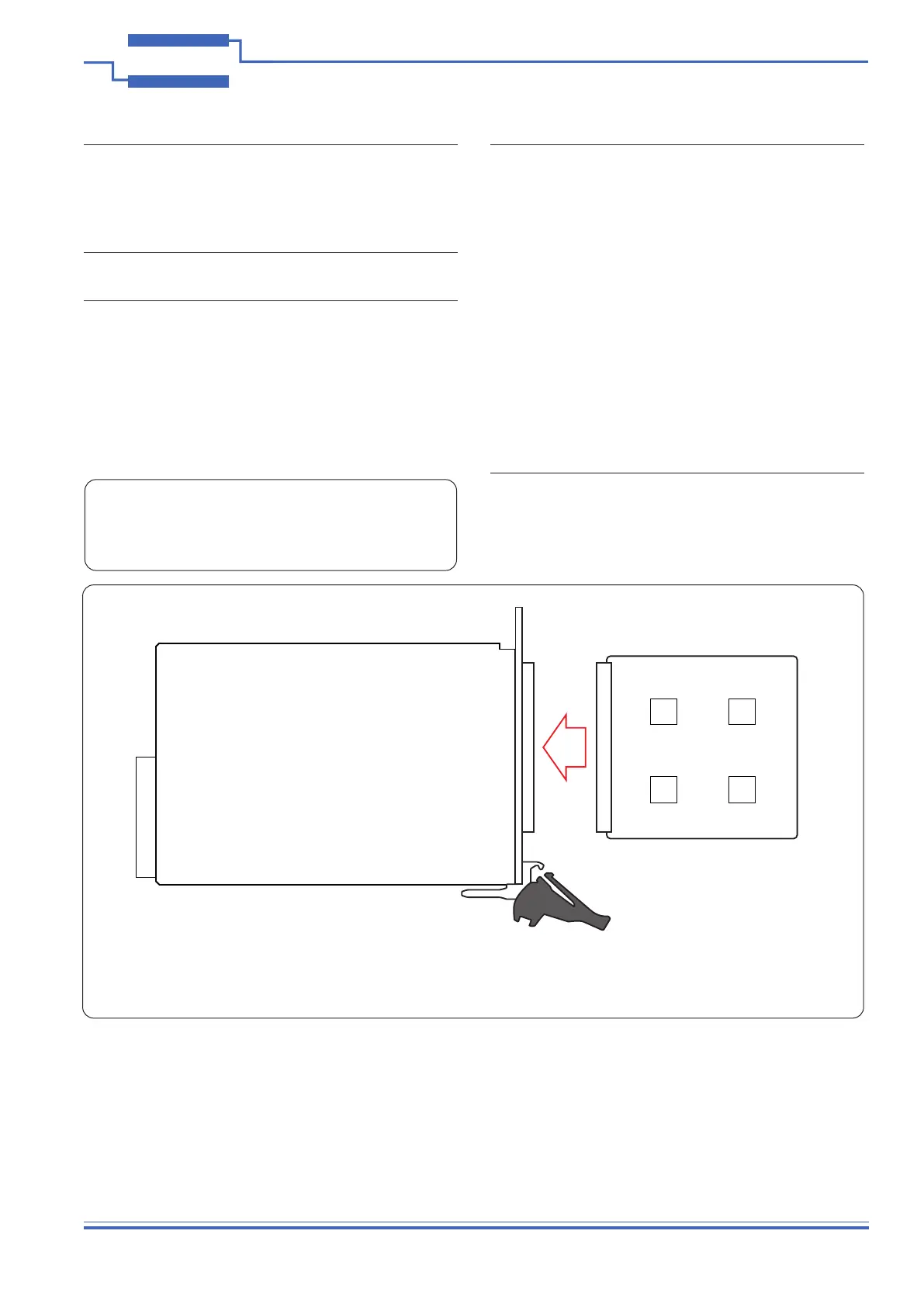

41-761 Isolated Millivolt
Thermocouple
Simulator Module
Temperature
Sensor
Temperature
Sensor
Temperature
Sensor
Temperature
Sensor
40-965-912 Compensation Block
The Compensation Block accessory (40-965-912) allows the temperature of the front panel junction to be read
back through the provided driver, enabling compensation of settings to increase accuracy.
