PILLAR MACHINE H49 - Page 14

PROGRAMMING
Connued

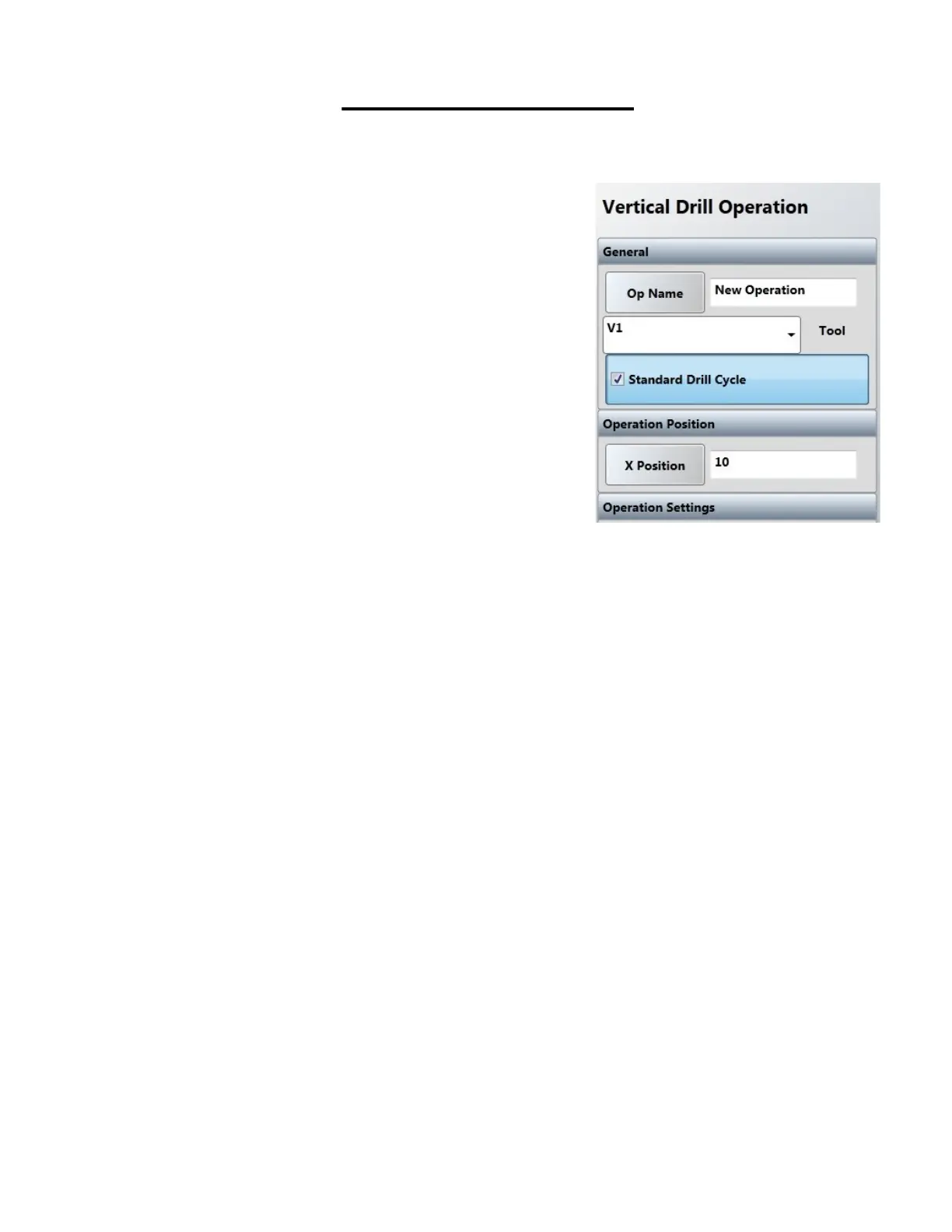

Vercal drill operaons can be selected on your HPJV. This allows us to use
the vercal drill to place holes in the top face of the board. Drill depth is
referenced from the face of the board, and adjusted by a mechanical DRO.
It is important to remember the centerline adjustment for the enre car-
riage also impacts this drill depth reading.
Use X posion to place the vercal hole in relaon to the side fences. And
the mechanical DRO adjustment sets the hole posion from the backfence.
Repeat and part length condions may also be set on this operaon.
