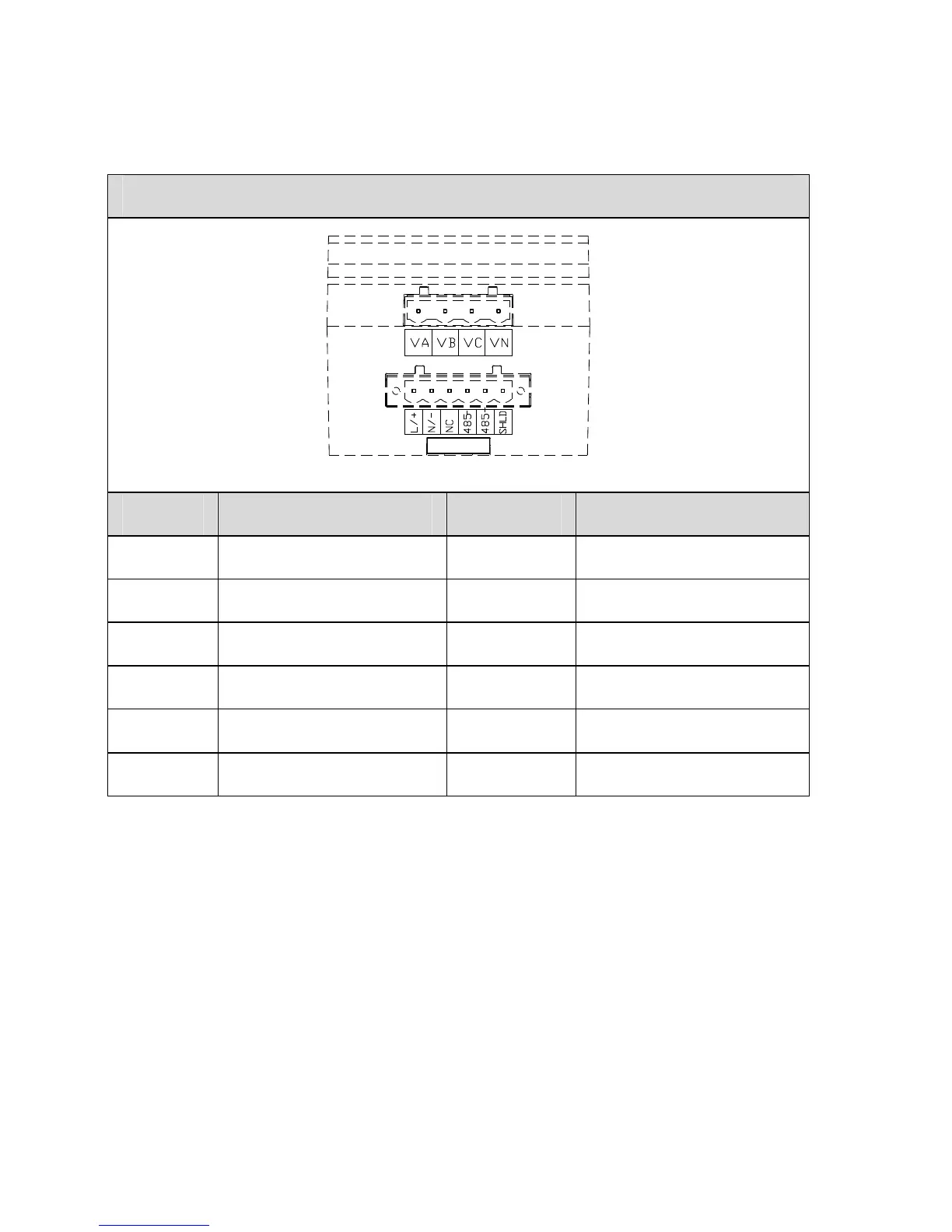

4.3 Terminal Definition

Upward View for bottom terminal

Mark Definition Mark Definition

L/+ Power supply Positive VA Phase A voltage

N/- power supply negative VB Phase B voltage

NC Null VC Phase C voltage

485- RS485- VN Neutral Voltage

485+ RS485+

SHLD Communic-ation Shield
