11
5. Display and operation

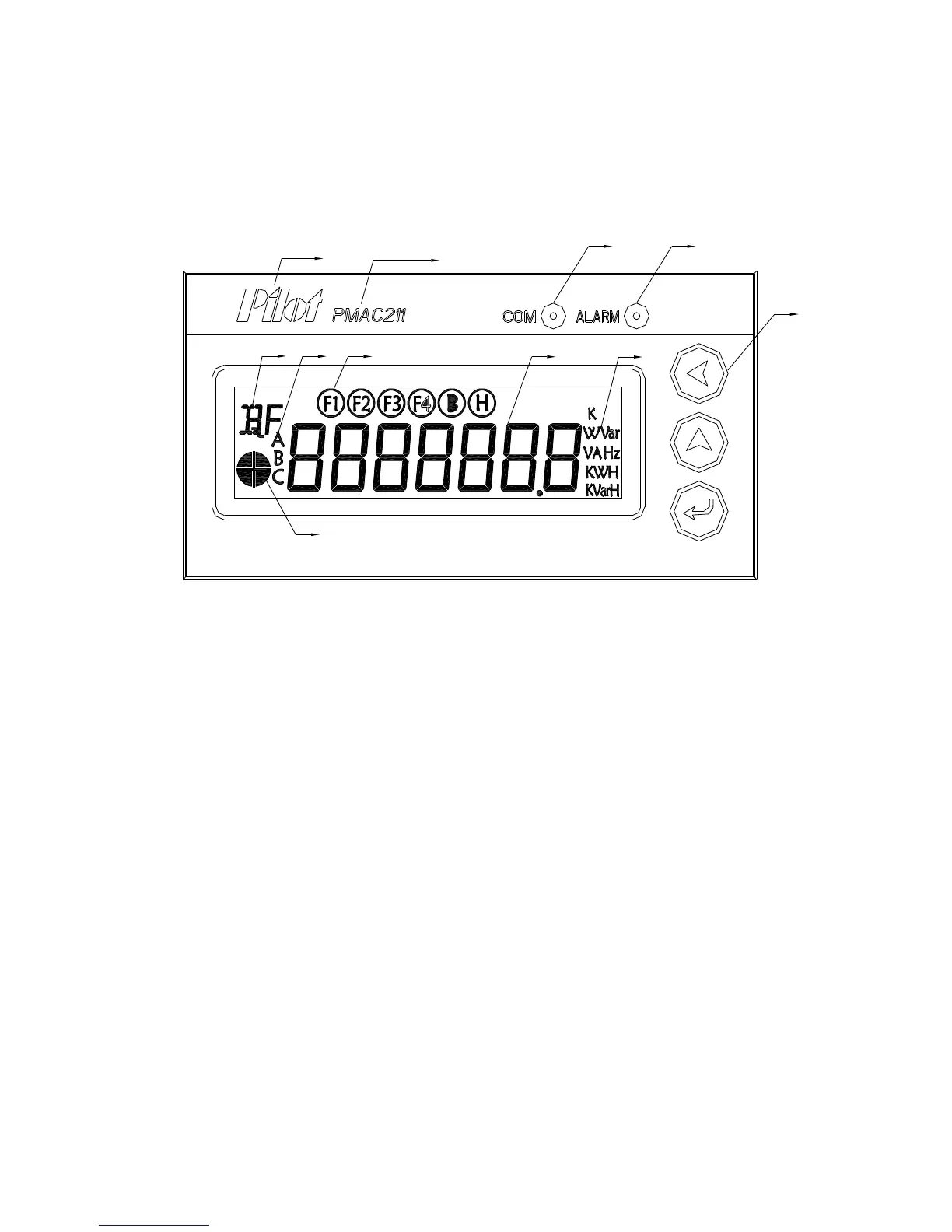

5.1 Introduction for display
②③① ④
⑤
⑥
⑦ ⑧
⑨
Brand
Model
Introduction for display:
①:Prompt for real -time data type
②:Prompt for circuit, for example: F1 means 1
st
circuit, F4 means 4
th
circuit
③:3 phase prompt, for example: when display voltage data, display F1 and B prompt,
means 1
st
circuit phase B voltage
④:Real-time data display area
⑤:Real-time data unit
⑥:Distinguish alarm threshold value, when display upper hemicycle, means up
per alarm, when display bottom hemicycle, means low alarm
⑦:Communication indication light ;
⑧:Alarm indication light;
⑨:Button;
