PINARELLO NYTRO - Mounting and Dismounting the Drive Pack in the eBike

QUICK GUIDE
8
CICLI PINARELLO S.R.L. | Viale della Repubblica, 12 - 31020 Villorba (TV) - Italia
C.F. - R.I. - P.IVA IT 05994100963 | tel. +39 0422 42 08 77 | fax +39 0422 42 18 16 | www.pinarello.com
Step 1
Step 2

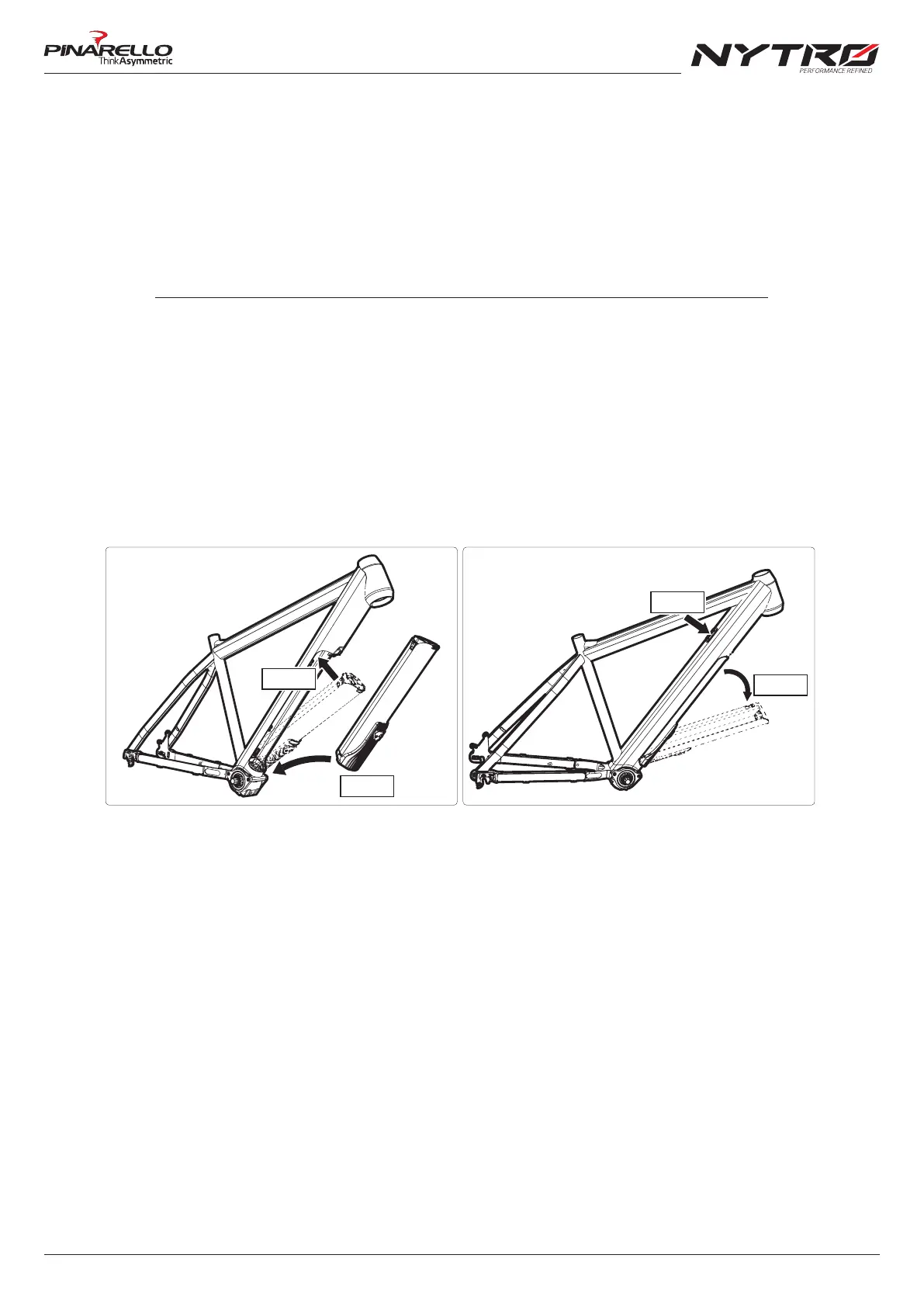

After inserting the Battery Pack in the Drive pack, lay the interface to Bottom
Bracket over the open interface to Drive pack right underneath your eBike
downtube.
Now bring the upper part of the Drive pack inside the downtube until the
fastening hook hooks in.
Make sure the Drive pack is tightly anchored within the downtube and does
not come out.
Action A
Step 1
Step 2
Action B
To Dismount the Drive pack, Hold the mounted Drive pack with one hand
and press the release button with the other hand.
You can now remove the Drive pack easily.
Important!
Make sure that you are holding your Drive pack when dismounting it,
otherwise the Drive pack may fall freely from the frame.
Note:
Sometimes pushing up the Drive pack against the frame before pressing the
release button may result in a smoother dismounting.
7. MOUNTING AND DISMOUNTING THE DRIVE
PACK IN THE EBIKE
