Pinnacle Protemp PT-35-HS - Unpacking; Wiring Diagrams

Unpacking Heater
Remove the heater and all of the packaging materials from
the shipping carton.
NOTE: Save the box and packaging materials for future
storage.

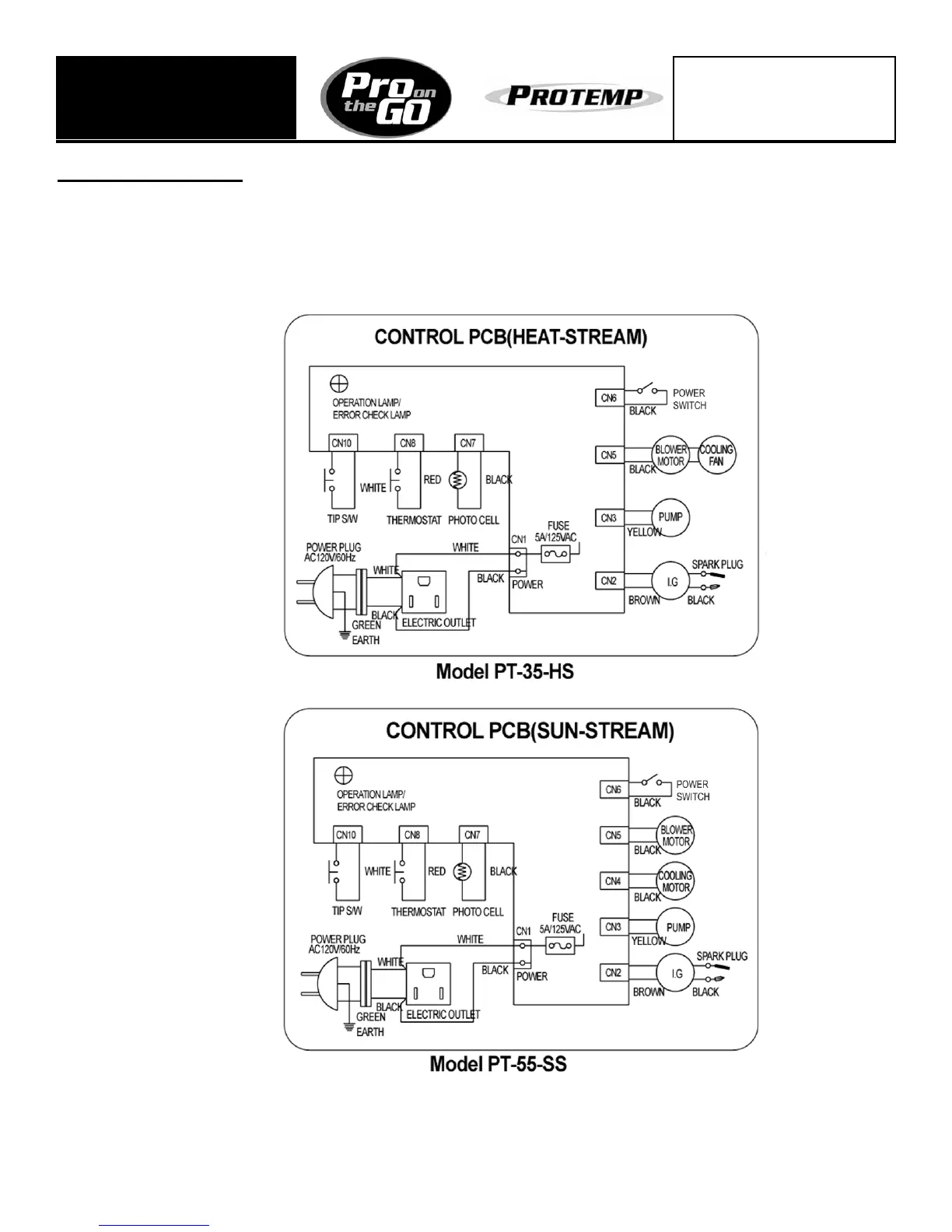

Figure 7. Wiring Diagram for model PT-55-SS
NEVER LEAVE HEATER
UNATTENDED WHILE BURN-
ING, OR WHILE CONNECTED
TO A POWER SOURCE.
Ultra-Portable
Kerosene Heaters
Page 6 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual
Figure 6. Wiring Diagram for model PT-35-HS
