DP-50 Instruction Manual
(6) Input Impedance:
Differential: 54 MΩ / 1.2 pF
Between terminals and ground: 27 MΩ / 2.3 pF
(7) Output: ≦ +/- 7.0 V
(8) Output Impedance: 50 Ω
(9) Rise Time: 7 ns for x 200, x 500, and x 1000; 14 ns for x 100
(10) Rejection Rate on Common Mode:
60 Hz: ＞ 80 dB ; 100 Hz: ＞ 60 dB ; 1 MHz: ＞ 50 dB
(11) Power Supply: Only External 9 V DC power supply .
(12) Consumption: 35 mA max (0.4 WATT)

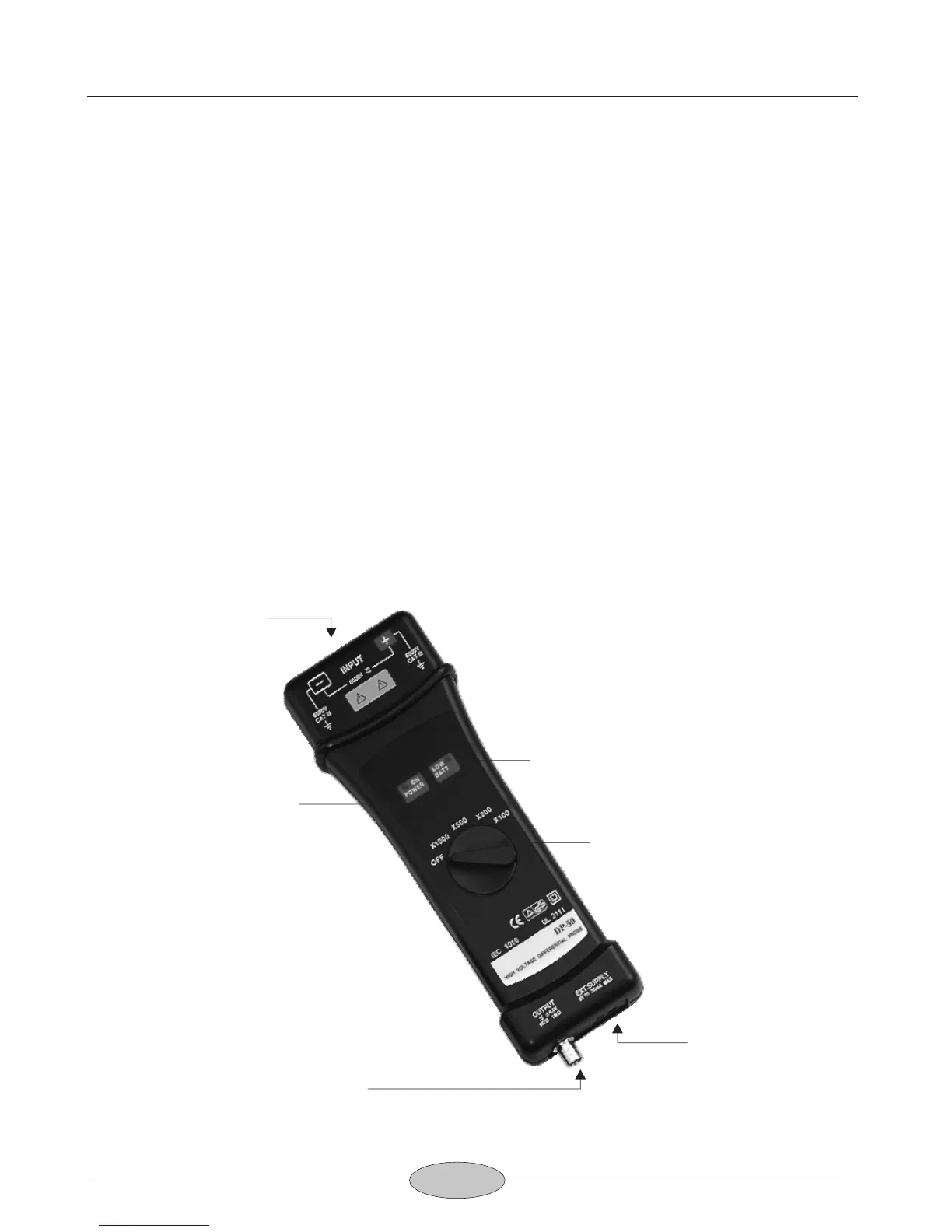

3. PANEL DESCRIPTION
Power ON/OFF Indication
Attenuation Function Switch
Low Power Indication
Input Connector
Output Connector
External Power Source
