Pioneer Eclipse PE420BU - Electrical Schematic (Base Model w;o Options)

Pioneer Eclipse PE420BU

68 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

30

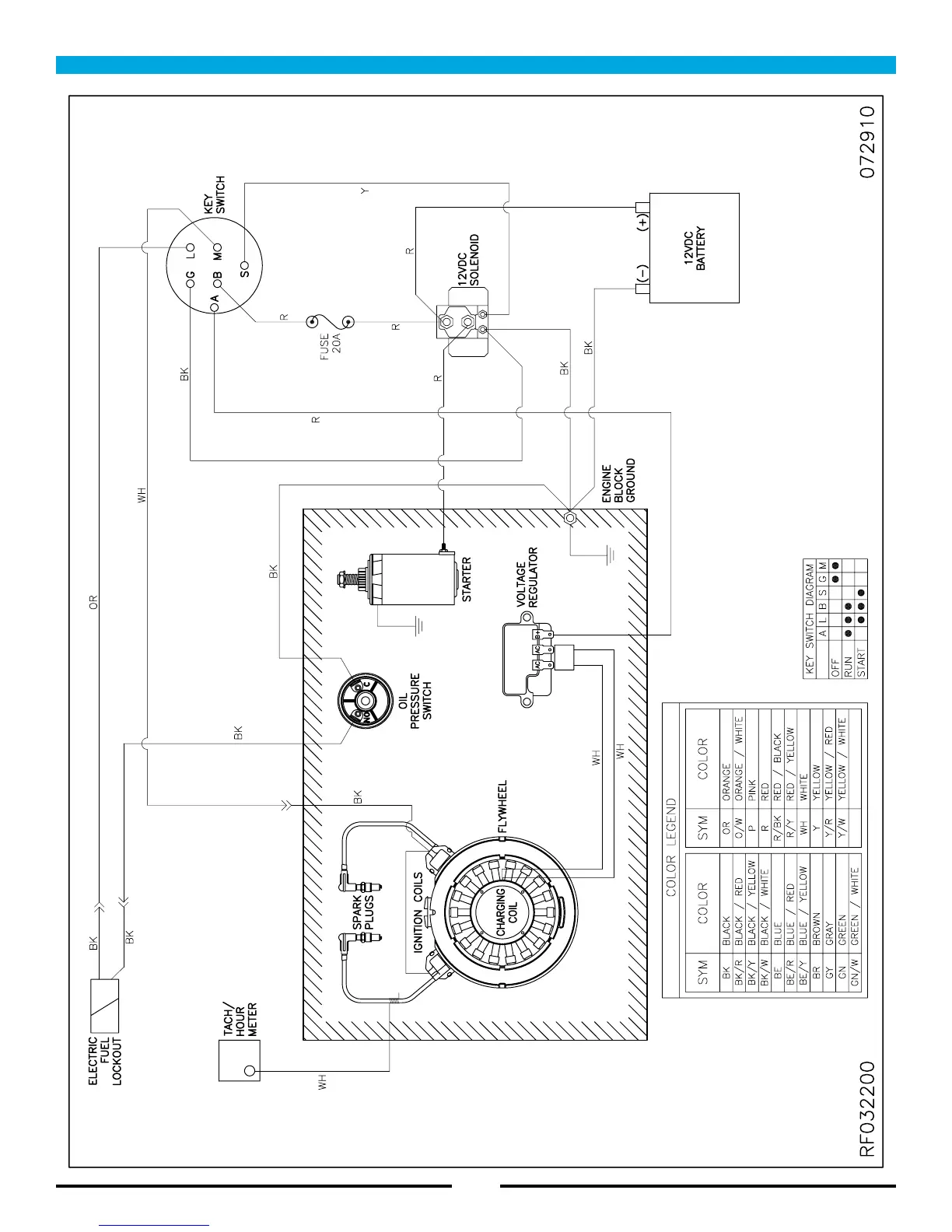

Electrical Schematic (Base Model w/o Options)

Table of Contents

Instructions for Use3
Table of Contents5
Quick Reference Specifications6
Safety Precautions7
Refueling and Storage of Fuel Cylinders9
Operator Responsibility9
Canadian Safety Requirements10
Test for Operator-Ear Sound Pressure Level11
Test for Hand Arm Vibration11
Machine Preparation12
- Unpacking the Machine12
- Filling the LP Cylinder12
- Installing the LP Cylinder12
- Controls and Instruments13
- Ignition Switch14
- Clutch Switch Lever (Optional)14
- Engine Throttle14
- Hour Meter / Tachometer14
- Ecosense Emission Monitoring (Optional)15
- Safestop (Optional)15
- Rok-Bak & Pad Change16
- Wheel Adjustment16
- Handle Adjustment16
- Fuse17
- Dust Bag (Optional)17
- Dust Box (40" Models)17
How the Machine Works18
Pre-Operation Checklist18
LP Fuel Cylinder18
Installing the LP Fuel Cylinder18
Starting the Machine19
Idling and Stopping the Machine19
Burnishing19
Machine Troubleshooting20
Maintenance21
- Scheduled Maintenance Chart21
- Oil Level Inspection22
- Oil Change22
- Oil Filter Replacement22
- Spark Plug Inspection and Replacement23
- Air Filter Inspection and Replacement23
- Engine Dust Filter24
- Valve Clearance & Re-Torque Heads24
- Valve Seating24
- Head Bolt Maintenance24
- Cooling Fin Maintenance24
- Inspect Fuel Hose and Connections24
- Inspect Pad and Pad Holders25
- Belt Maintenance25
- Belt Replacement25
- Belt Replacement (40" Models)26
- Battery Maintenance27
- Machine Storage27
- Repacking the Machine27
- Transporting the Machine27
Machine Specifications28
Parts Manual29
- Electrical Schematic (Base Model)30
- Connections (Base Model)31
- Electrical Schematic (W/ Clutch & Ecosense)33
- Connections (W/ Ecosense)34
- Electrical Schematic (W/ Safestop)36
- Connections (W/ Safestop)37
- Engine Assembly40
- Handle Assembly42
- Old Deck Assembly44
- Old Main Assembly46
- Deck Assembly48
- Main Assembly50
- Regulator & Solenoid Assembly52
- Skirt & Pad Holder Assembly54
- 40" Deck Assembly56
- 40" Dust Collection58
- 40" Main Assembly60
- 40" Torsion Bar Adjustment62
Small off Road Engine Certification Warranty64
Safety Awareness Form65
Limited Warranty67
Manufacturer's Warranty67
