Pioneer A-331 - Page 4

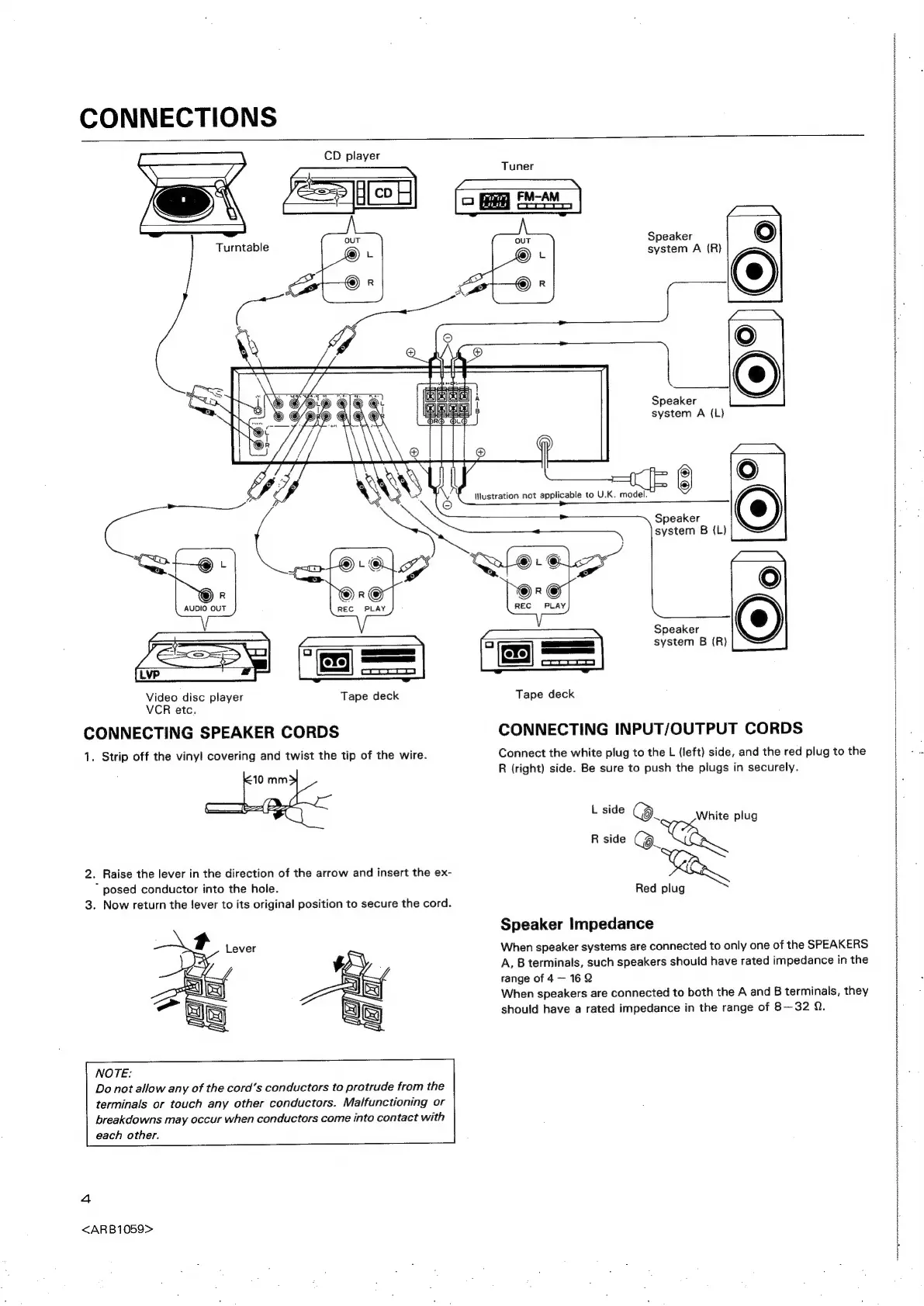

CONNECTIONS
cD =e
Turntable
Tuner
(= tam BAA |
Speaker
© system A (R)
©)
©
J oe
Speaker
system A (L)
Fe |2
Video disc player Tape deck
VCR etc.
CONNECTING SPEAKER CORDS
1. Strip off the vinyl covering and twist the tip of the wire.
10 mm
2. Raise the lever in the direction of the arrow and insert the ex-
posed conductor into the hole.
3. Now return the lever to its original position to secure the cord.
Speaker
system B (L)
NOTE:
Do
not
allow
any
of
the
cord’s
conductors
to
protrude
from
the
terminals
or
touch
any
other
conductors.
Malfunctioning
or
breakdowns
may
occur
when
conductors
come
into
contact
with
each
other.
4
<ARB1059>
©
Ns es
Speaker
system B (R)
Tape deck
CONNECTING INPUT/OUTPUT CORDS
Connect the white plug to the L (left) side, and the red plug to the
R (right) side. Be sure to push the plugs in securely.
Lside (@
R side @.
White plug
Red plug
Speaker Impedance
When
speaker
systems
are
connected
to
only
one
of
the
SPEAKERS
A,
B
terminals,
such
speakers
should
have
rated
impedance
in
the
range
of
4
— 162
When
speakers
are
connected
to
both
the
A
and
B
terminals,
they
should
have
a
rated
impedance
in
the
range
of
8—32
Q.
