AVH-X1500DVD/XNUC

1234

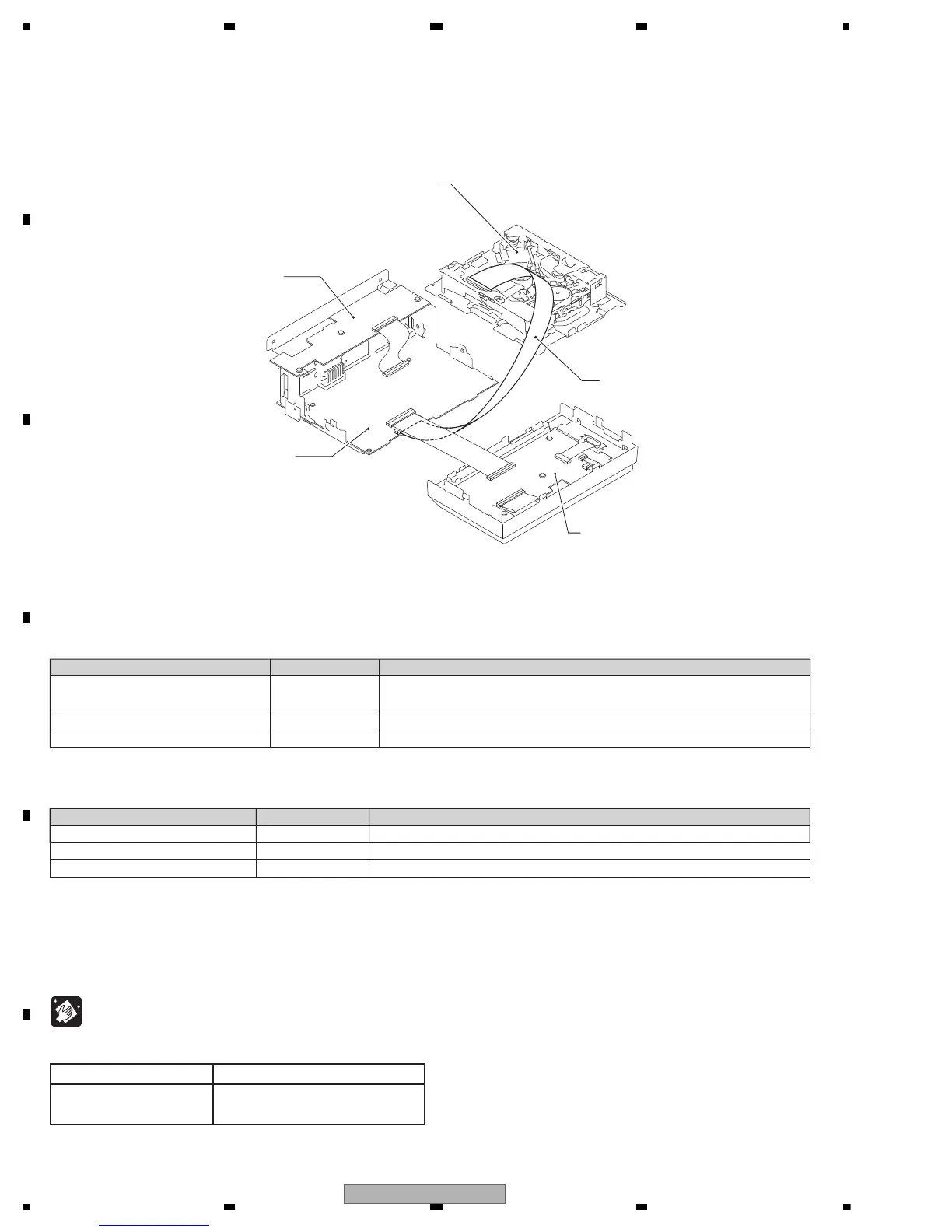

3.3 JIGS LIST

3.4 CLEANING

Service Unit (Monitor)

GGD1222

DVD Mechanism Module

Mother PCB

Interface PCB

- Grease List

- Jigs List

Name

Grease

Jig No.

GEM1024

GEM1038

GEM1045

Remarks

DVD Mechanism Module

Disc TDV-582 Skew adjustment, Check points after servicing,

Inspection method of Pickup Unit

Disc TCD-782 Inspection method of Pickup Unit

30P FFC GGD1222 DVD CORE UNIT <–> MOTHER PCB

Name Jig No.

Remarks

Before shipping out the product, be sure to clean the following portions by using the prescribed cleaning tools:

Portions to be cleaned Cleaning tools

DVD pickup lenses Cleaning liquid : GEM1004

Cleaning paper : GED-008
