Pioneer AVH-X1550DVD/XNRI User Manual

AVH-X1500DVD/XNUC
92
1234
1234
C
D
F
A
B
E
2
Note)

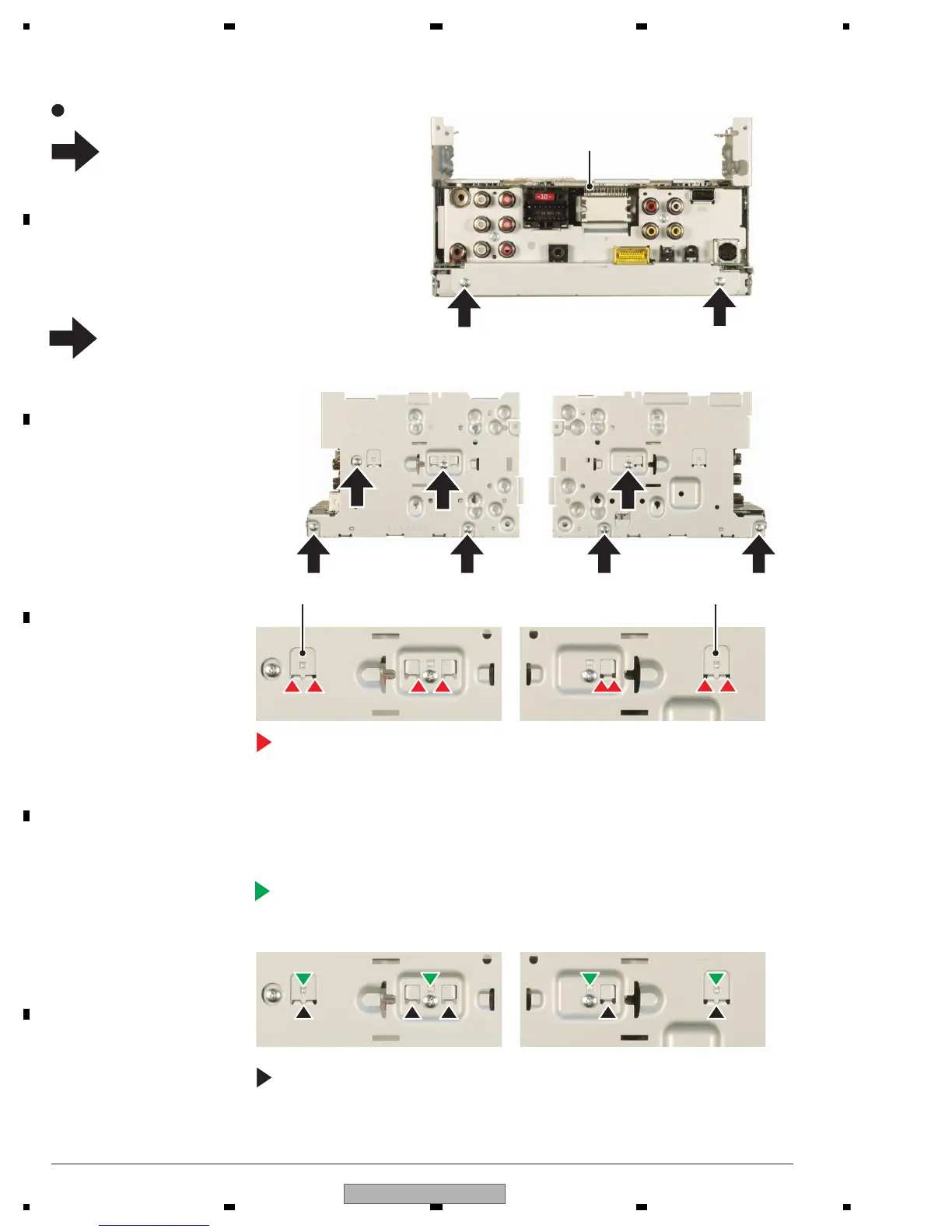

Remove the Service Unit Holder with tweezers.
If forcefully removed, it may be deformed.
Attention at assembly)
When you assemble the Service Unit Holder and the Bracket,
the Claw enters the hole.
They are hardly separated, so pay attention to the deformation.
The Service Unit Holder should contact the Bracket.
Fig.6
Service Unit (Mother I/F)
1
Removing the Service Unit (Mother I/F) (Fig.6)
Remove the two screws.
Remove the seven screws and then remove
the Service Unit (Mother I/F).
1
1
2
2
2
2 22 2
t
Service Unit Holder Service Unit Holder

Pioneer AVH-X1550DVD/XNRI Specifications

General

Display Size	6.2 inches
Resolution	800 x 480 pixels
Touchscreen	Yes
DVD Player	Yes
CD Player	Yes
USB Input	Yes
AUX Input	Yes
Bluetooth	Yes
Navigation	No
Rear View Camera Input	Yes
Preamp Outputs	3 pairs (front, rear, subwoofer)
AM/FM Tuner	Yes
Compatible Audio Formats	MP3, WMA, AAC
Power Output	50W x 4 Channels
Compatible Video Formats	MPEG-1, MPEG-2, MPEG-4
