Pioneer AVH-X1550DVD/XNRI User Manual

AVH-X1500DVD/XNUC
93
5 678
56
7
8
C
D
F
A
B
E
Fig.7
1
2
3
4
Mother PCB
Interface PCB
3
2
2
2
1
4
4
4

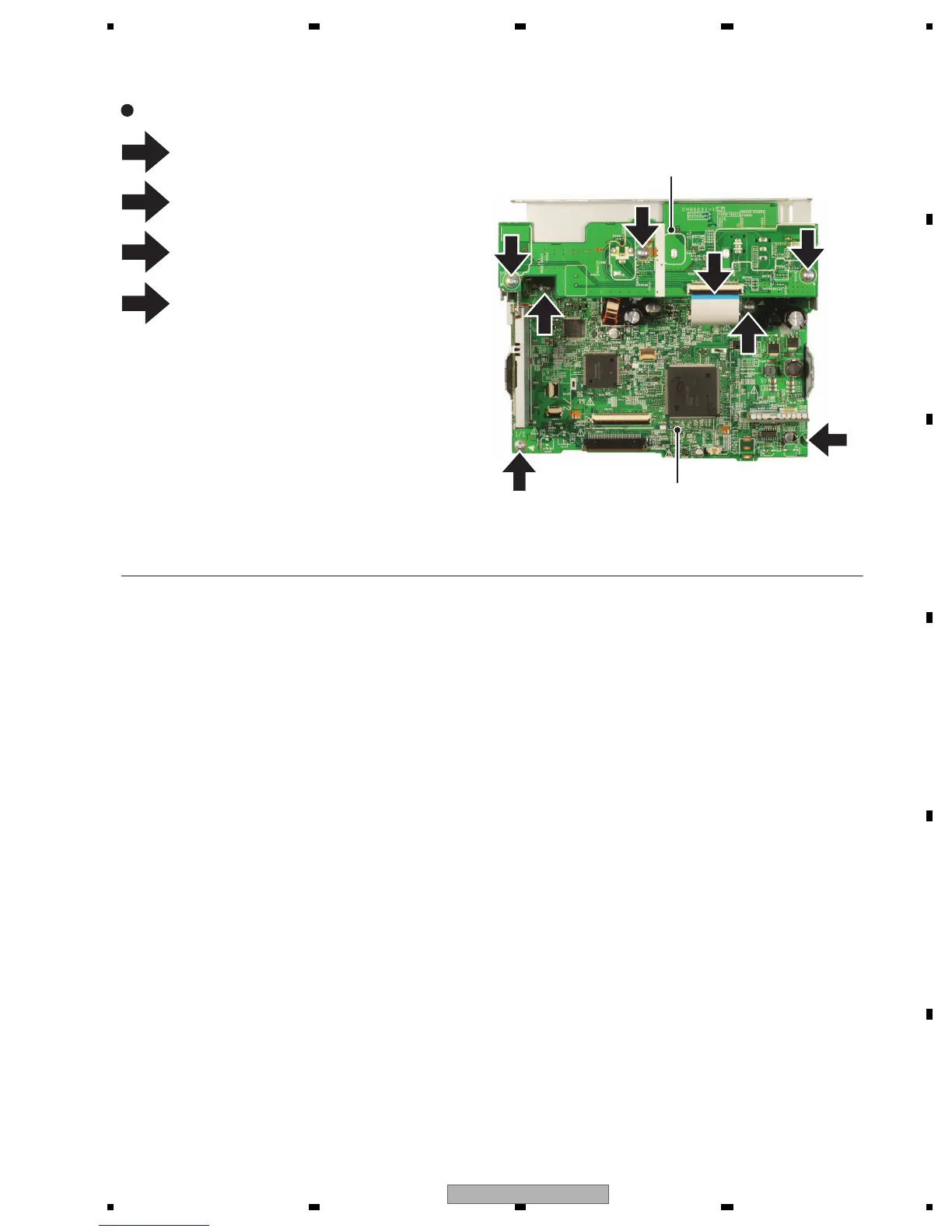

Removing the Interface PCB and the Mother PCB (Fig.7)
Disconnect the connector.
Remove the three screws and then remove
the Interface PCB.
Straighten the tab at location indicated.
Remove the three screws and then remove
the Mother PCB.

Pioneer AVH-X1550DVD/XNRI Specifications

General

Display Size	6.2 inches
Resolution	800 x 480 pixels
Touchscreen	Yes
DVD Player	Yes
CD Player	Yes
USB Input	Yes
AUX Input	Yes
Bluetooth	Yes
Navigation	No
Rear View Camera Input	Yes
Preamp Outputs	3 pairs (front, rear, subwoofer)
AM/FM Tuner	Yes
Compatible Audio Formats	MP3, WMA, AAC
Power Output	50W x 4 Channels
Compatible Video Formats	MPEG-1, MPEG-2, MPEG-4
