AVH-X1500DVD/XNUC

5 678

3rd point 4th point

Finished normally Finished abnormally

Operational description Remote controller key

Check is interrupted Band

Operational description Remote controller key

Check is finished Band

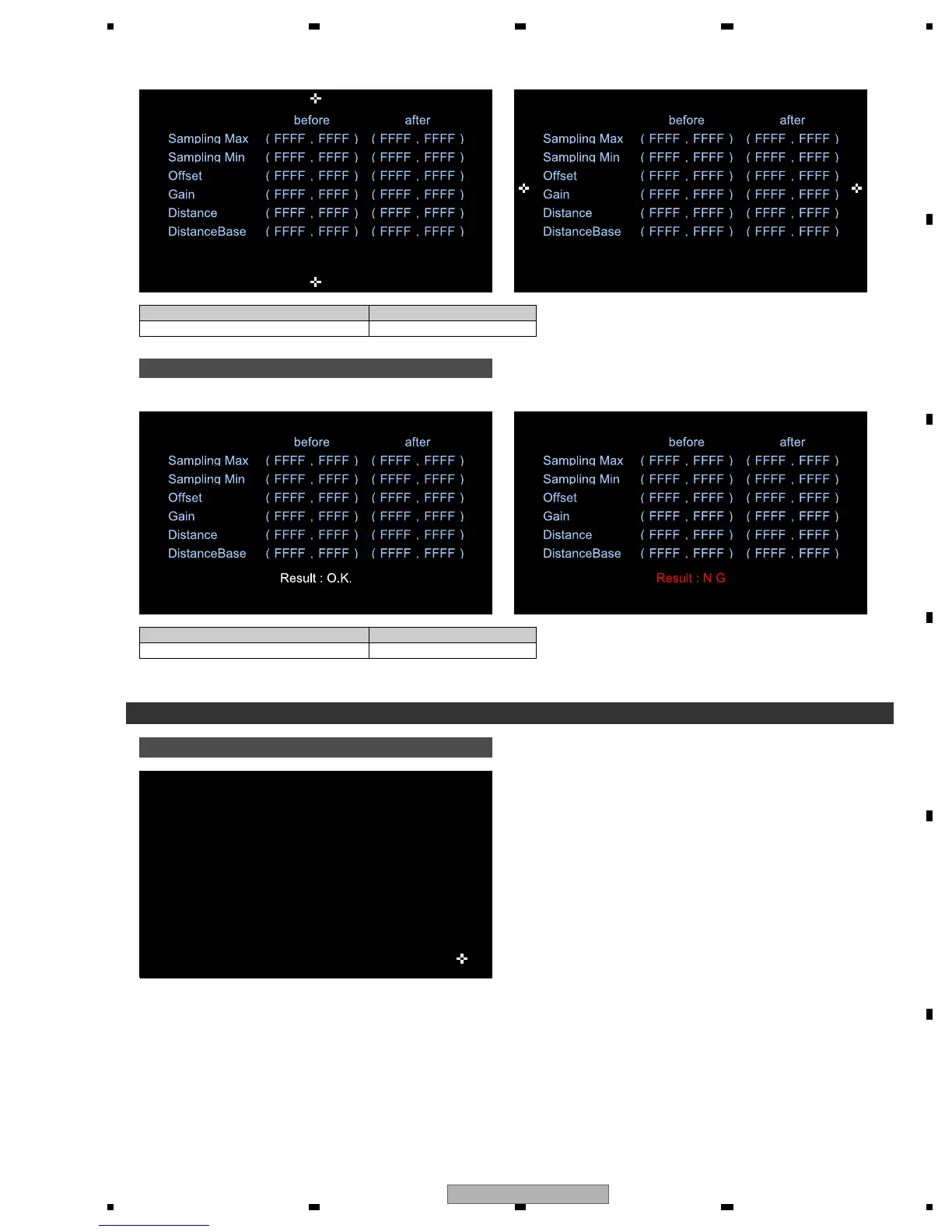

Outermost circle check result screen

3. 16 Point Calibration

Calibration check screen

Touch the cursor [+] displayed on the screen. By touching it correctly, it disappears and another cursor appears.

By repeating this action 16 times, obtain calibration value of each [+].

When touching the last 17th cursor, calibration values at 16 points and information of normal finish in 17 bytes

are written in EEPROM and the screen returns to TOP menu by pressing a key.
