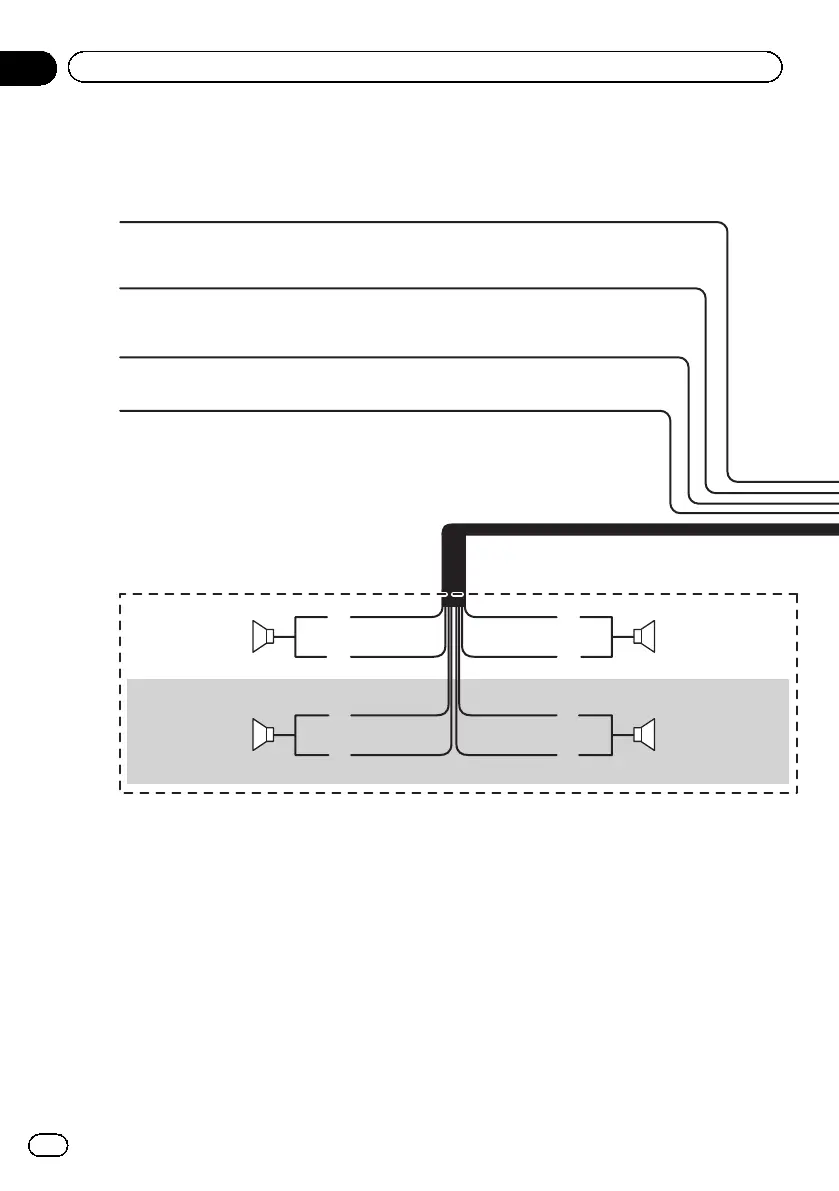

Connecting the power cord (1)








Yellow
To terminal supplied with power regardless of
ignition switch position.
Red
To electric terminal controlled by ignition
switch (12 V DC) ON/OFF.
Orange/white
To lighting switch terminal.
Black (earth)
To vehicle (metal) body.
With a two-speaker system, do not connect anything
to the speaker leads that are not connected to
speakers.
White
Grey
Front speakerFront speaker
White/black Grey/black
Left Right
Rear speaker Rear speaker
Green
Violet
Green/black
Violet/black
<CRB4539-A>8
Engb
8
Section
02
Connection

Pioneer AVIC-F70BT Specifications

General

Display Size	6.1 inches
Resolution	800 x 480 pixels
GPS Navigation	Yes
Bluetooth	Yes
USB Port	Yes
SD Card Slot	Yes
Audio Formats Supported	MP3, WMA, AAC
Rear View Camera Input	Yes
Touchscreen	Yes
iPod Control	Yes
DVD Playback	Yes
CD Playback	Yes
AM/FM Tuner	Yes
Voice Control	Yes
iPod/iPhone Compatibility	Yes
Video Formats Supported	DivX, WMV
Navigation Maps	Pre-loaded maps
