FEATURES
SIMPLE design
Based on the fundamental design concept that “‘simple is
best,”’ the number of circuit elements from input to output has
been made as small as possible.
Independent left, right, and control mono-
construction design.
The C-90 features a three power-transformer design with in-
dependent transformers for the left channel, right channel,
and control system, thus eliminating sound deterioration due
to mutual interference.

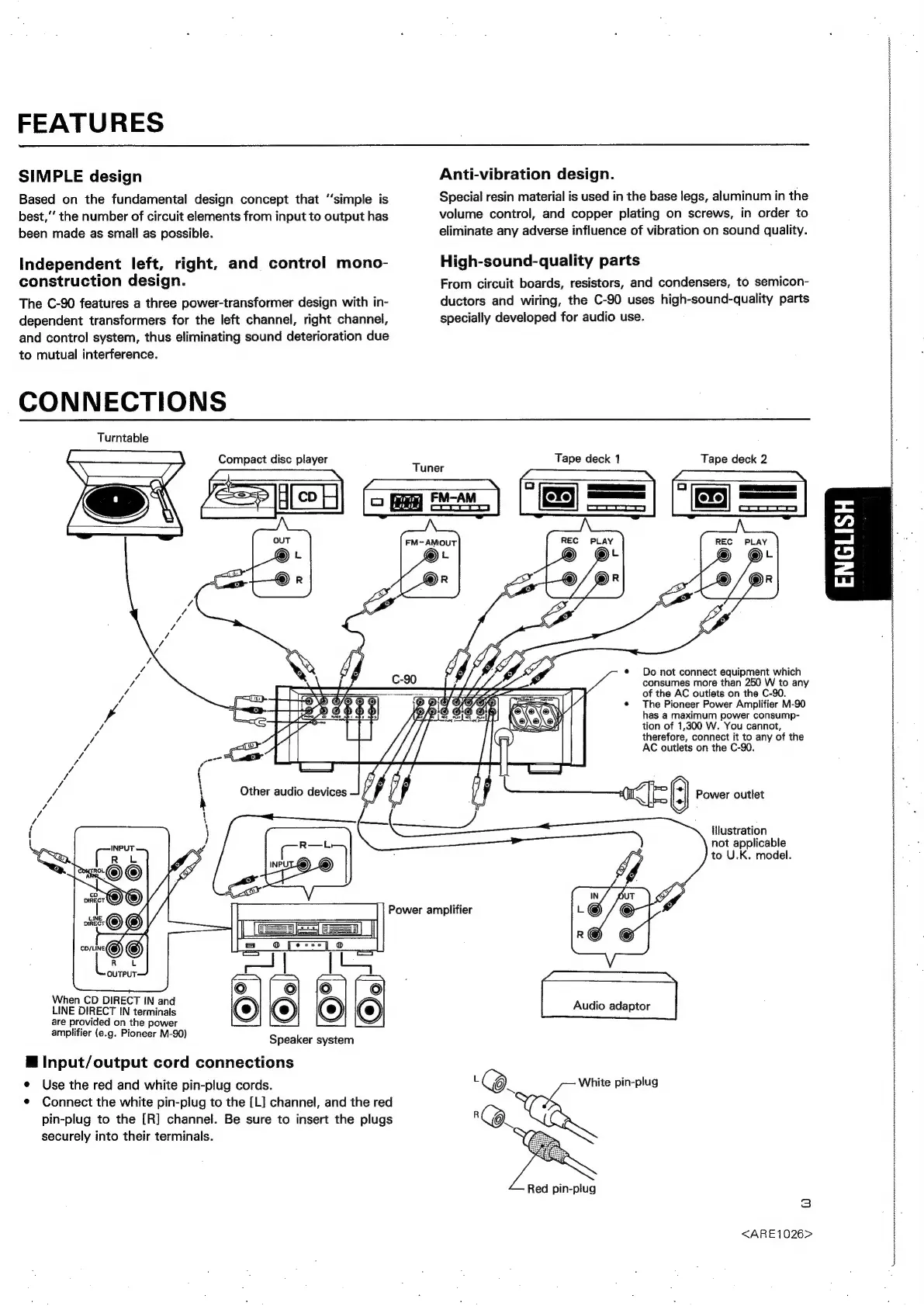

CONNECTIONS
Turntable
Anti-vibration design.
Special resin material is used in the base legs, aluminum in the
volume control, and copper plating on screws, in order to
eliminate any adverse influence of vibration on sound quality.
High-sound-quality parts
From
circuit
boards,
resistors,
and
condensers,
to
semicon-
ductors
and
wiring,
the
C-90
uses
high-sound-quality
parts
specially
developed
for
audio
use.
Tape deck 1
Tape deck 2
When CD DIRECT IN and
LINE DIRECT IN terminals
are provided on the power
amplifier (e.g. Pioneer M-90)
Speaker system
@ Input/output cord connections
e Use the red and white pin-plug cords.
e Connect the white pin-plug to the [L] channel, and the red
pin-plug to the [R] channel. Be sure to insert the plugs
securely into their terminals.
Power amplifier
Do not connect equipment which
consumes more than 250 W to any
of the AC outlets on the C-90.
® The Pioneer Power Amplifier M-90
has a maximum power consump-
tion of 1,300 W. You cannot,
therefore, connect it to any of the
AC outlets on the C-90.
Illustration
not applicable
to U.K. model.
Audio adaptor
L ite pin-
@. White pin-plug
R
@
Red pin-plug
3
<ARE1026>
