Pioneer CDJ-850 Service Manual

56
CDJ-850
1
2 3 4
A
B
C
D
E
F
1
2 3 4
9. EXPLODED VIEWS AND PARTS LIST

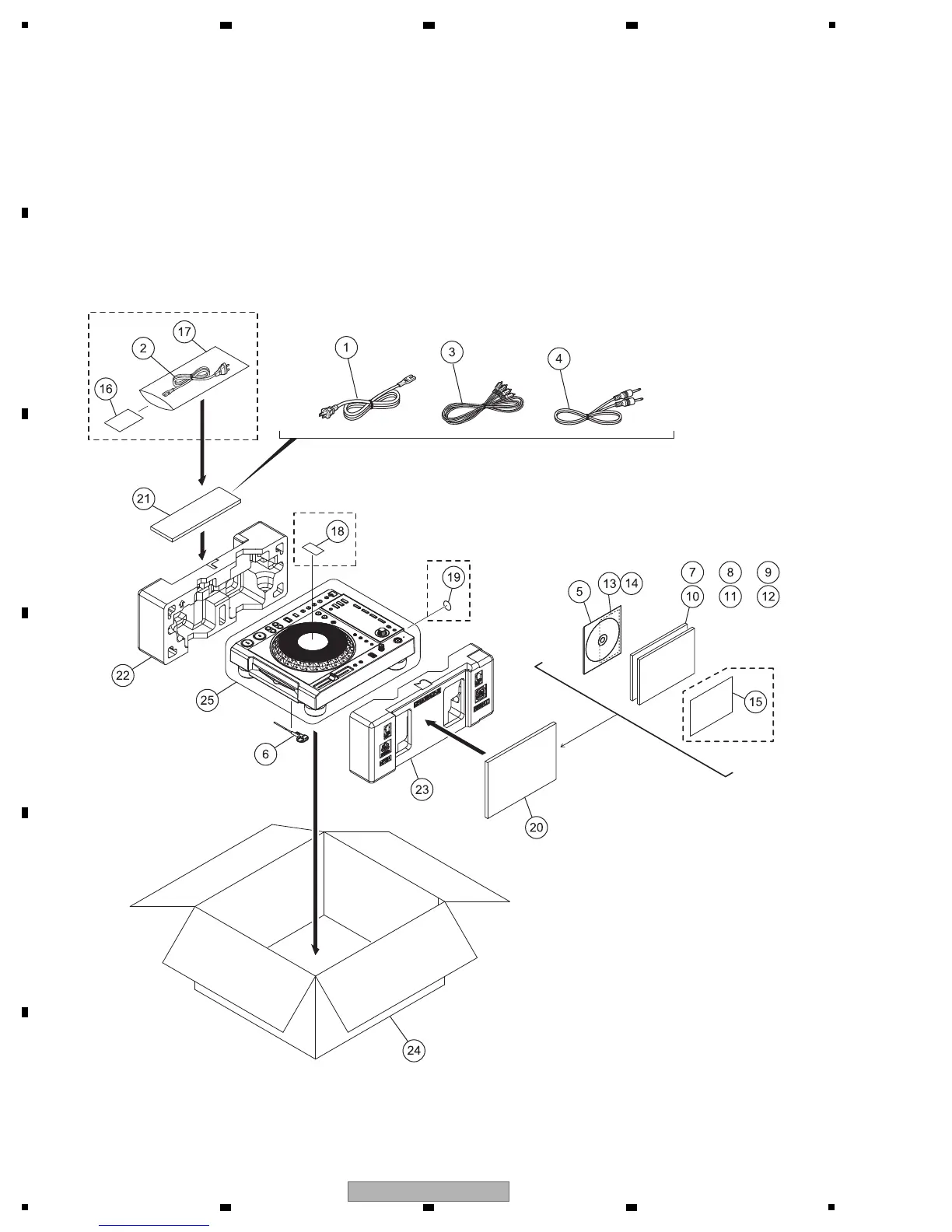

9.1 PACKING SECTION
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
-
Screws adjacent to b mark on product are used for disassembly.
-
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
or or
or or
SYXJ8 only
AXJ5 only
FLXJ only
KXJ5 only

Pioneer CDJ-850 Specifications

General

USB direct playback	Yes
Product color	Silver
Type	-
Nominal speeds	- RPM
Signal-to-Noise Ratio (SNR)	115 dB
Line outputs (RCA)	1
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	21 W

Weight and Dimensions

Depth	364.4 mm
Width	305 mm
Height	105 mm
Weight	3310 g
