7En
English

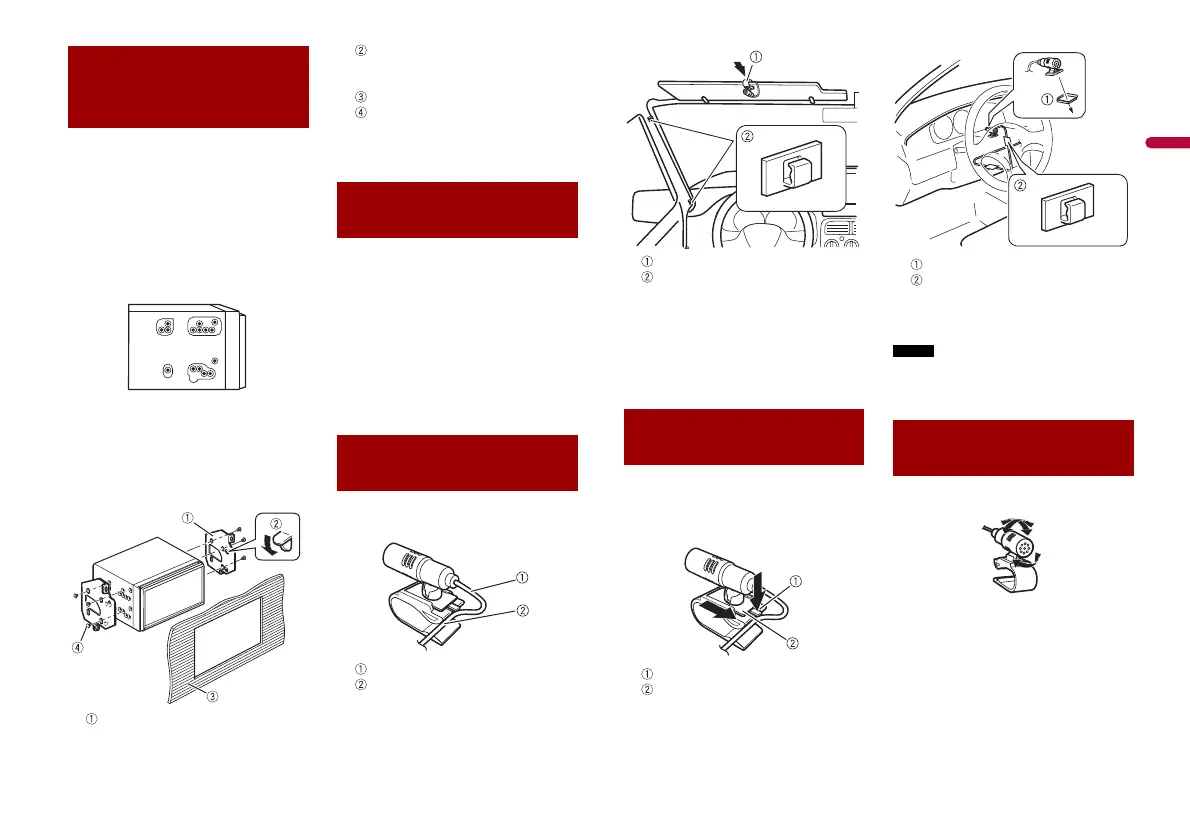

1 Fastening this product to the factory
radio-mounting bracket.
Position this product so that its screw
holes are aligned with the screw holes
of the bracket, and tighten the screws at
three locations on each side.
Use either the truss head screws (5 mm
× 9 mm) or flush surface screws (5 mm ×
9 mm), depending on the shape of the
bracket’s screw holes.
TIP
The amount of this unit's protrusion from
the dashboard/console can be adjusted by
shifting the position of the screw hole of
this unit to the factory radio-mounting
bracket.
Factory radio-mounting bracket
If the pawl interferes with
installation, you may bend it down
out of the way.
Dashboard or console
Truss head screw or flush surface
screw
Be sure to use the screws supplied
with this product.
Install the microphone in a place where
its direction and distance from the driver
make it easiest to pick up the driver’s
voice.
Be sure to turn off (ACC OFF) the product
before connecting the microphone.
Depending on the vehicle model, the
microphone cable length may be too
short when you mount the microphone
on the sun visor. In such cases, install the
microphone on the steering column.
1 Fit the microphone lead into the
groove.
Microphone lead
Groove
2 Attach the microphone clip to the sun
visor.
Installation using the screw
holes on the side of this
product
Installing the
microphone
Mounting on the sun
visor
Microphone clip
Clamps
Use separately sold clamps to secure
the lead where necessary inside the
vehicle.
Install the microphone on the sun visor
when it is in the up position. It cannot
recognise the driver’s voice if the sun
visor is in the down position.
1 Detach the microphone base from the
microphone clip by sliding the
microphone base while pressing the
tab.
Tab
Microphone base
2 Mount the microphone on the
steering column.
Double-sided tape
Clamps
Use separately sold clamps to secure
the lead where necessary inside the
vehicle.
NOTE
Install the microphone on the steering
column, keeping it away from the steering
wheel.
The microphone angle can be adjusted.
Installation on the
steering column
Adjusting the microphone
angle
