Pioneer DMH-A3300DAB User Manual

4En
Important
Front speaker and Rear speaker signals
(STD) or middle range speaker and high
range speaker signals (NW) are output
from the speaker leads when this
connection is in use.

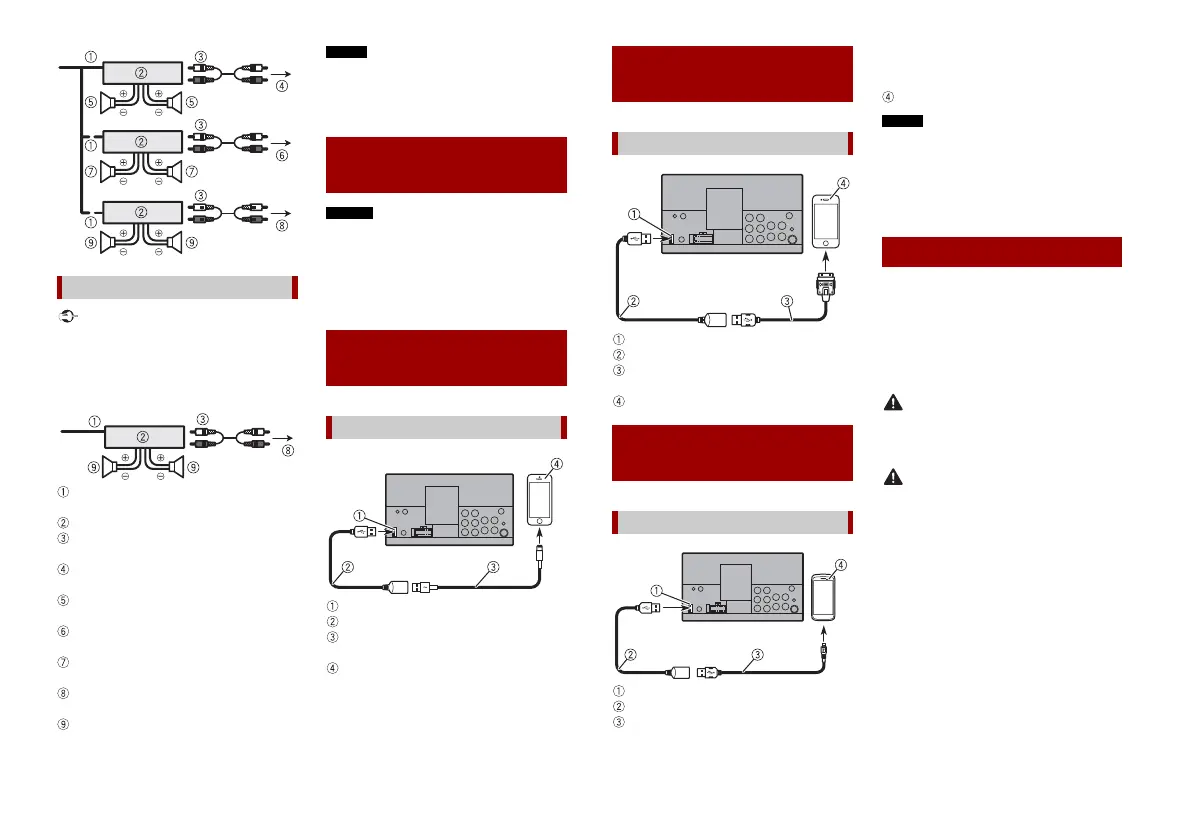

System remote control
Connect to Blue/white cable.
Power amp (sold separately)
Connect with RCA cable (sold
separately)
To Rear output (STD)
To middle range output (NW)
Rear speaker (STD)
Middle range speaker (NW)
To Front output (STD)
To high range output (NW)
Front speaker (STD)
High range speaker (NW)
To subwoofer output (STD)
To low range output (NW )
Subwoofer (STD)
Low range speaker (NW)
NOTE
Select the appropriate speaker mode
between standard mode (STD) and
network mode (NW). For details, refer to
the Operation Manual.
NOTES
• For details on how to connect an external
device using a separately sold cable, refer
to the manual for the cable.
• For details concerning the connection
and operations of iPhone or smartphone,
refer to the Operation Manual.
USB port
USB cable 1.5 m
USB interface cable for iPod/iPhone (CD-
IU52) (sold separately)
iPhone with Lightning connector
With internal amp
iPod/iPhone and
smartphone
iPod/iPhone with
Lightning connector
Connecting via the USB port
USB port
USB cable 1.5 m
USB interface cable for iPod/iPhone (CD-
IU51) (sold separately)
iPhone with 30-pin connector
USB port
USB cable 1.5 m
USB - micro USB cable (Type USB A -
micro USB B) (supplied with CD-MU200
(sold separately))
USB Type-C cable (Type USB A - USB C)
(supplied with CD-CU50 (sold
separately))
Smartphone
NOTE
The length of Type USB A - micro USB B
cable cannot exceed 2 m and Type USB A -
USB C cannot exceed 4 m according to the
USB cable standard. When using a cable
other than above conditions, the main unit
function may not operate properly.
About rear view camera
When you use the rear view camera, the
rear view image is automatically switched
from the video by moving the gearstick to
REVERSE (R). Camera View mode also
allows you to check what is behind you
while driving.
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR
IMAGE REAR VIEW CAMERA. OTHER USE
MAY RESULT IN INJURY OR DAMAGE.
CAUTION
• The screen image may appear reversed.
• With the rear view camera you can keep
an eye on trailers, or back into a tight
parking spot. Do not use for
entertainment purposes.
• Objects in rear view may appear closer or
more distant than in reality.
• The image area of full-screen images
displayed while backing or checking the
rear of the vehicle may differ slightly.
iPhone with 30-pin
connector
Connecting via the USB port
Smartphone (Android™
device)
Connecting via the USB port
Camera

Pioneer DMH-A3300DAB Specifications

General

Aspect ratio	16:9
Display type	TFT
Display diagonal	6.2 \
DIN size	2 DIN
Output power	- W
Product color	Black
Disc types supported	No
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Analog signal format system	NTSC, PAL, PAL M, PAL N, SECAM
Mobile operating systems supported	Android, iOS
Supported radio bands	DAB, DAB+, FM
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
USB ports quantity	1
Bluetooth functions	Audiostreaming, Handsfree calling
USB direct playback	-
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPEG
Video formats supported	DIVX, FLV, H.264, MKV, MPEG2, MPEG4
Cables included	USB
Hands-free calling	Keep your hands on wheel with Bluetooth™ Hands-free calling. After pairing your compatible Bluetooth mobile phone to your TomTom GPS, you’ll be able to see incoming call information, make and answer calls, and talk hands-free through your device. You’ll e
Phonebook capacity	800 entries
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Weight	1100 g
