Pioneer F-225L User Manual

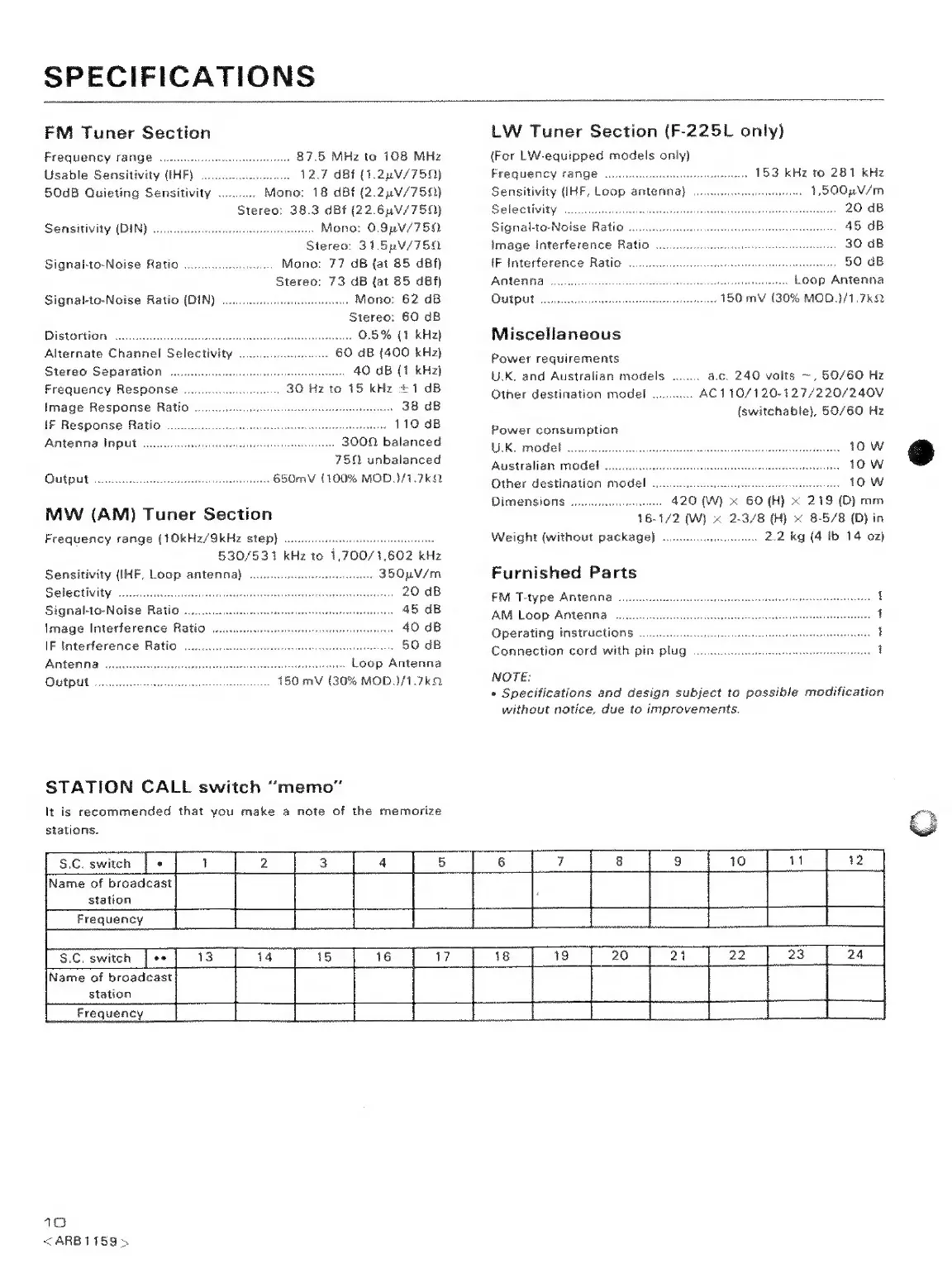

SPECIFICATIONS
FM Tuner Section
Frequency range
Usable Sensitivity (IHF) .
50dB Quieting Sensitivity
. 87.5 MHz to 108 MHz
12.7 dBF (1.22V/759)
Mono: 18 dBf (2.2nV/750)
Stereo: 38.3 dBf (22.6uV/759)
Sensitivity (DIN) 0... eee eee renee Mono: 0.9pV/752
Stereo: 31.5pV/750
Signal-to-Noise Ratio oe Mono: 77 dB {at 85 dBf)
Stereo: 73 dB (at 85 dBf)
Sigmal-to-Noise Ratio (DIN) cc ccc Mono: 62 dB
Stereo: 60 dB
Distortion Be 0.5% (1 kHz}
Alternate Channel Selectivity 60 dB {400 kHz}
Siereo Separation sii0:2 ence nities 40 dB (1 kHz}
30 Hz to 15 kHz +1 dB
38 dB
110 dB
3000 balanced
759 unbalanced
QUtpUL a ttia Sona i ehosedetas 650mV (100% MOD.}/1.7k2
Frequency Response
image Response Ratio
IF Response Ratio
Antenna Input ....
MW (AM) Tuner Section
Frequency range (10kH2/9kHz step)
530/531 kHz to f,
Sensitivity (IHF, Loop antenna)
Selectivity
Signal-to-Noise Ratio
image Interference Ratio .
IF Interference Ratio
Antenna .
Output ....
00/1,602 kHz
. 350nV/m
20 dB
45 dB
40 dB
50 dB
Loop Antenna
150 mV (30% MOD.)/1.7k2
STATION CALL switch “memo”
It is recommended that you make a note of the memorize
stations.
LW Tuner Section (F-225L only)
(For LW-equipped models only)
FreQUenCy FANQE cess cere 153 kHz to 281 kHz
Sensitivity (HF, Loop antenna) » 1,500nV/m
Selectivity .. 20 dB
Signal-to-Noise Ratio . 45 dB
image Interference Ratio . 30 dB
iF interference Ratio 50 dB
Antenna . Loop Antenna
Qu tpat ccs iecciciticasintadt esses narnieeediecene 150 mV (30% MOO.3/1.7k2
Miscellaneous
Power requirements
U.K, and Australian models ....... ac. 240 valts ~, 50/60 Hz
Other destination model .......... AC110/120-127/220/240V
(switchable), 50/60 Hz
Power consumption
UK. modelos, cudnt andes gate acon inane
Australian model
Other destination model . é
Dimensions 0.00.0... 420 (W) x 60 (H) x 219 (D) mm
16-1/2 (W) x 2-3/8 (H} x 8-5/8 (D) in
Weight (without package) oo... 2.2 kg (4 ib 14 az)
Furnished Parts
FM T-type Antenna
AM Loop Antenna .
Operating instructions
Connection cord with pin plug
NOTE:
* Specifications and design subject to possible modification
without notice, due to improvements.
S.C. switch | « 7 2 3 a | 5
Name of broadcast
station
Frequency
S.C. switch L: 13 |
[18 19 20 21
24
Name of broadcast
station
Frequency | [
10
<ARBI159>
6 | 7 8 9 | 1 [ 4 12
}
22 23 |

Pioneer F-225L Specifications

General

Tuning Bands	FM, MW, LW
Signal to Noise Ratio (FM)	70 dB
Signal to Noise Ratio (AM)	50 dB
Distortion (FM Mono)	0.3%
Distortion (FM Stereo)	0.5%
Output (FM)	650mV
Output (MW)	150 mV
Output (AM)	150 mV
Power Supply	AC 220-240V, 50/60 Hz
Type	Stereo Tuner
FM Tuning Range	87.5 to 108 MHz
MW Tuning Range	522 kHz - 1611 kHz
LW Tuning Range	153 to 281 kHz
Frequency Response (FM)	30 Hz - 15 kHz
