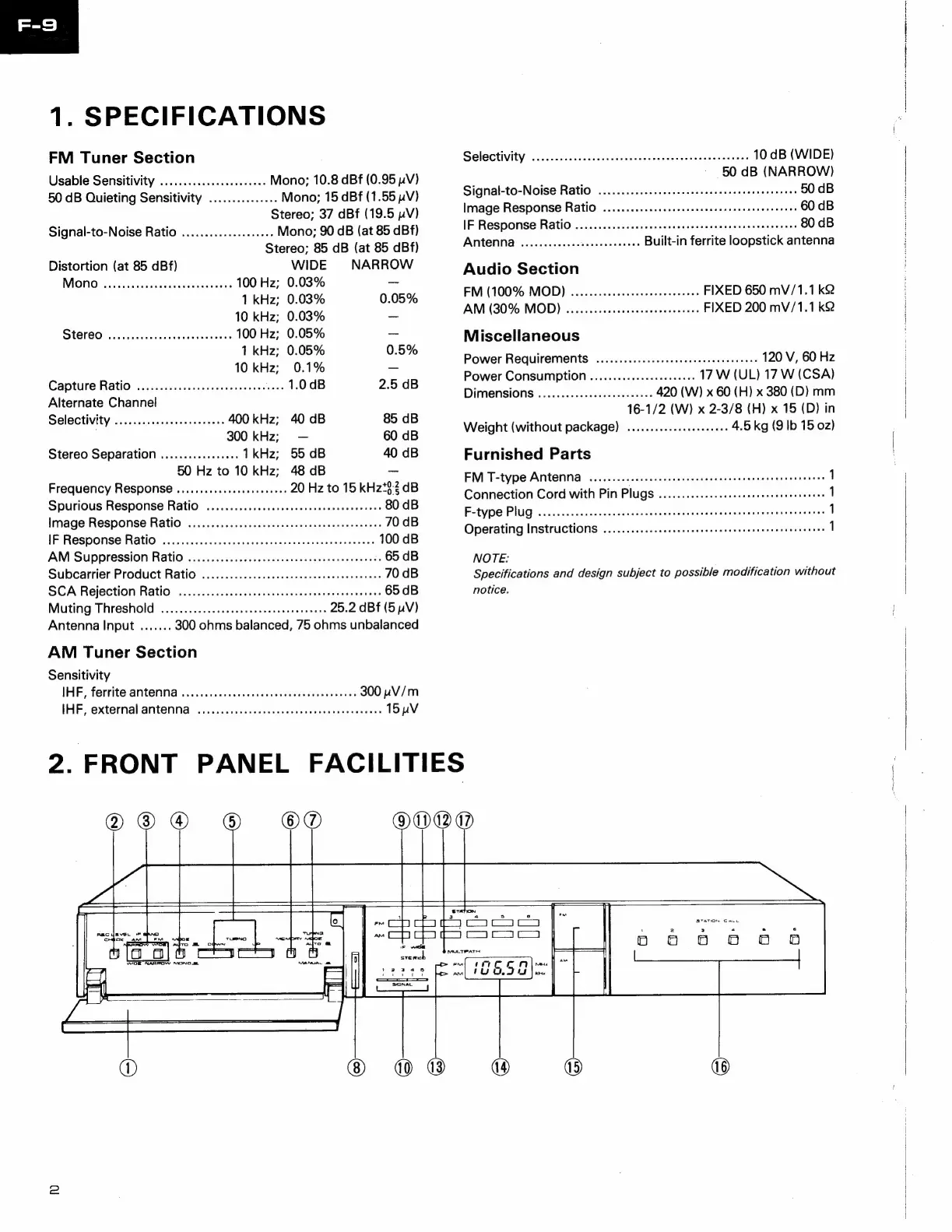

1. SPECIFICATIONS
FM Tuner Section
Usable Sensitivity ...........cccceeeeeees Mono; 10.8 dBf (0.95 pV)
50 dB Quieting Sensitivity ............... Mono; 15 dBf (1.55 nV)
Stereo; 37 dBf (19.5 pV)
Signal-to-Noise Ratio .............00.08 Mono; 90 dB (at 85 dBf)
Stereo; 85 dB (at 85 dBf)
Distortion (at 85 dBf) WIDE NARROW
MONG tected icccaneiaees woweceed 100 Hz; 0.03% _
1 kHz; 0.03% 0.05%
10 kHz; 0.03% _
STOlOG canciiccesasavgcedtehen owns 100 Hz; 0.05% —
1 kHz; 0.05% 0.5%
10 kHz; 0.1% —
Capture Ratio ...........cceseeeeeeneee ees vee. 1.0dB 2.5 dB
Alternate Channel
Selectivity .........cc:cceeeeeeeeee 400 kHz; 40 dB 85 dB
. 300 kHz; — 60 dB
Stereo Separation ..............065 1kHz; 55 dB 40 dB
50 Hz to 10 kHz; 48 dB —
Frequency ReSponse ..........csceeeseeeeees 20 Hz to 15 kHz*?2 dB
Spurious Response Ratio ...........cccccseeeeeeseeenaeeeeeeees 80 dB
Image Response Ratio ...........ccecceseeeeeeeeeteeeeeeeeenenes 70 dB
IF Response Ratio -.cv.vcsecinet aries icecataisacesseutensas 100 dB
AM Suppression Ratio ...........:ccceeeeceeeeeeeenenereneneeees 65 dB
Subcarrier Product Ratio .............:cseeeeee ences eneeeeenees 70 dB
SCA: Rejection: Ratio sxccwwessiesasieavinas seecde cdaceceerediviiers 65 dB
Muting Threshold ............:cccceceeeeeeeeeeeeeeees 25.2 dBf (5 pV)
Antenna Input ....... 300 ohms balanced, 75 ohms unbalanced
AM Tuner Section
Sensitivity
IFFF, Ferrite ANtenNa wiewiteincraesa gasses vee eeecwsa we 300 uV/m
IHF, external antenna ...........:cceeeeeee sete eee eeereeeeaes 15 uV
SGIOCHIVIEY. sassdantacetsatevadieceend ite cxsewansesan tends 10 dB (WIDE)
50 dB (NARROW)
Signal-to-Noise Ratio ..........ccceseeeeeee eee eee eeeeneeeeees 50 dB
Image Response Ratio ..........cccesereceeeeeeeeeeeneeeenereees 60 dB
IF Response Ratio ............cecceesceasecescnseeneesenatsanenens 80 dB
ANTONIN :issised sa cedes is iecueenns Built-in ferrite loopstick antenna
Audio Section
FM (100% MOD) .........cceeeeeeeeeeeeeeees FIXED 650 mV/1.1 k@
AM (30% MOD) .......sccceseeseserececcees FIXED 200 mV/1.1 k&2
Miscellaneous
Power Requirements ........::ccseseeseeeeeeeeneeneeees 120 V, 60 Hz
Power Consumption ..........-.:ecseeeeees 17 W (UL) 17 W (CSA)
Dimensions ...........cceeeeeneeeees 420 (W) x 60 (H) x 380 (D) mm
16-1/2 (W) x 2-3/8 (H) x 15 (D) in
Weight (without package) ...........:scceeeeeeee 4.5 kg (9 Ib 15 oz)
Furnished Parts
FM T-type Antenna .........ececeee eset ee eeeeeeeeeneeeeeaenenneneoans 1
Connection Cord with Pin PIUGS ........:.::eeeeeeeeeeeeeeeereteeees 1
F-type PlUG ......ccccscececssscecrscsensennsrevscseescestaearaceoeeresnes 1
Operating
INStructioNS
..........cccceceeeeee
ee
ee
eee
ee
tena
en
tn
eaeenens
1
NOTE:
Specifications
and
design
subject
to
possible
modification
without
notice.
2. FRONT PANEL FACILITIES
