C
S_e_tt_in---=g=--t_h_e_u_n_it
)
SectIon
C )
&I

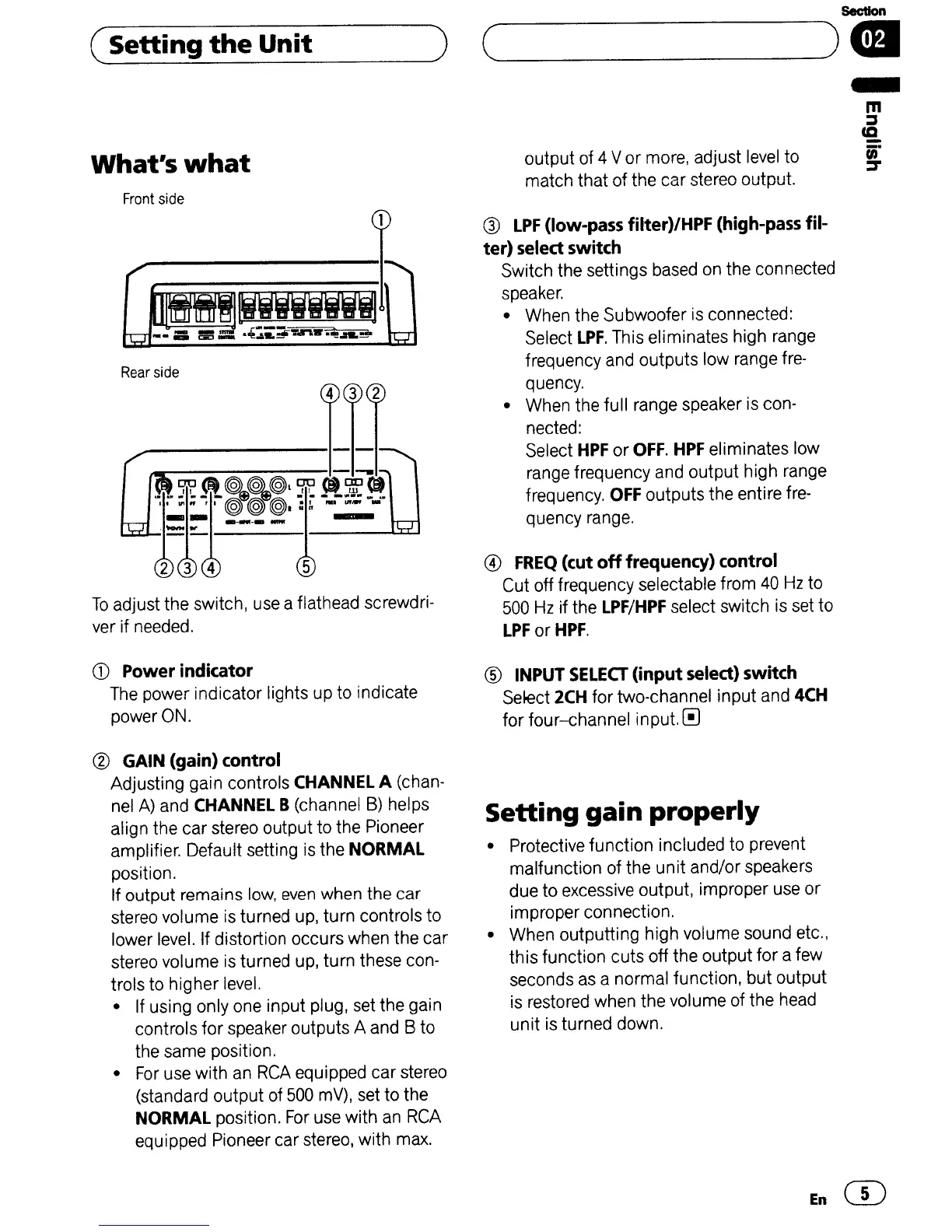

What's
what
Front
side
Rear
side
.,.-±rJ
~
"--~~~~~@~~:I~
~~
~
-
---.-_......
~
. _
...
2 3 4 5
To
adjust the switch, use a flathead screwdri-
ver if needed.
CD
Power indicator
The power indicator lights up to indicate
power ON.
tIl
GAIN
(gain) control
Adjusting gain controls
CHANNEL
A (chan-
nel
A)
and
CHANNEL
B (channel
B)
helps
align the car stereo output to the Pioneer
amplifier. Default setting
is
the NORMAL
position.
If output remains
low,
even
when the car
stereo volume
is
turned up, turn controls to
lower level. If distortion occurs when the car
stereo volume
is
turned up, turn these con-
trols to higher level.
• If using only one input plug, set the gain
controls for speaker outputs A and B to
the same position.
•
For
use with an
RCA
equipped car stereo
(standard output of
500
mV),
set to the
NORMAL position.
For
use with
an
RCA
equipped Pioneer car stereo, with
max.
output of 4 V
or
more, adjust level to
match that of the car stereo output.
® lPF (low-pass filter)/HPF (high-pass fil-
ter)
select
switch
Switch the settings based on the connected
speaker.
• When the Subwoofer is connected:
Select
lPF.
This eliminates high range
frequency and outputs low range fre-
quency.
• When the full range speaker is con-
nected:
Select
HPF
or
OFF.
HPF
eliminates low
range frequency and output high range
frequency.
OFF
outputs the entire fre-
quency range.
@
FREQ
(cut
off
frequency) control
Cut off frequency selectable from
40
Hz
to
500
Hz
if the lPF/HPF select switch
is
set to
lPF
or
HPF.
®
INPUT
SELECT
(input select) switch
Select
2CH
for two-channel input and
4CH
for four-channel input.
~
Setting gain properly
• Protective function included to prevent
malfunction of the
unit
and/or speakers
due to excessive output, improper use or
improper connection.
• When outputting high volume sound etc.,
this function cuts off the output for a few
seconds as a normal function, but output
is
restored when the volume of the head
unit is turned down.
En
