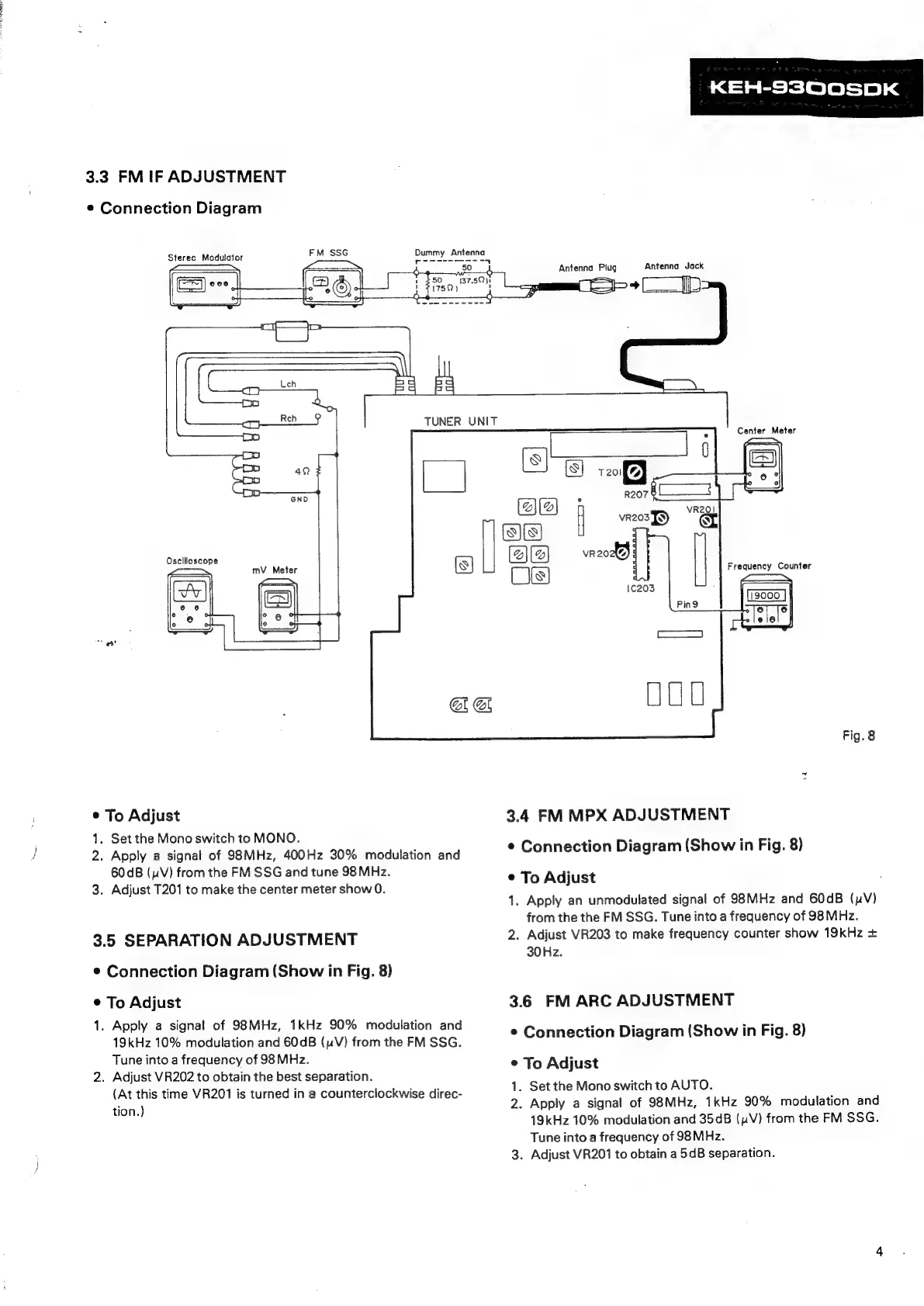

3.3 FM IF ADJUSTMENT
e Connection Diagram
Oscilloscope
© To Adjust
1. Set the Mono switch to MONO.
2. Apply a signal of 98MHz, 400Hz 30% modulation and
60dB (uV) from the FM SSG and tune 98MHz.
3. Adjust T201 to make the center meter show 0.
3.5 SEPARATION ADJUSTMENT
¢ Connection Diagram (Show in Fig. 8)
© To Adjust
1. Apply a signal of 98MHz, 1kHz 90% modulation and
19kHz 10% modulation and 60dB (nV) from the FM SSG.
Tune into a frequency of 98MHz.
2. Adjust VR202 to obtain the best separation.
(At this time VR201 is turned in a counterclockwise direc-
tion.)
TUNER UNIT
S
a oe :
KEH-S300SDK
Antenna Plug Antenna Jack
CES +(___ 1D
Center Meter
VR201
@
Frequency Counter
* Ewe.
=—=S
aol
vr2od
Cs)
Fig. 8
3.4 FM MPX ADJUSTMENT
¢ Connection Diagram (Show in Fig. 8)
e To Adjust
1. Apply an unmodulated signal of 983MHz and 60dB (pV)
from the the FM SSG. Tune into a frequency of 98 MHz.
2. Adjust VR203 to make frequency counter show 19kHz +
30 Hz.
3.6 FM ARC ADJUSTMENT
¢ Connection Diagram (Show in Fig. 8)
¢ To Adjust
1. Set the Mono switch to AUTO.
2.
Apply
a
signal
of
98MHz,
1kHz
90%
modulation
and
19kHz
10%
modulation
and
35dB
(nV)
from
the
FM
SSG.
Tune
into
a
frequency
of
98MHz.
3. Adjust VR201 to obtain a 5dB separation.
