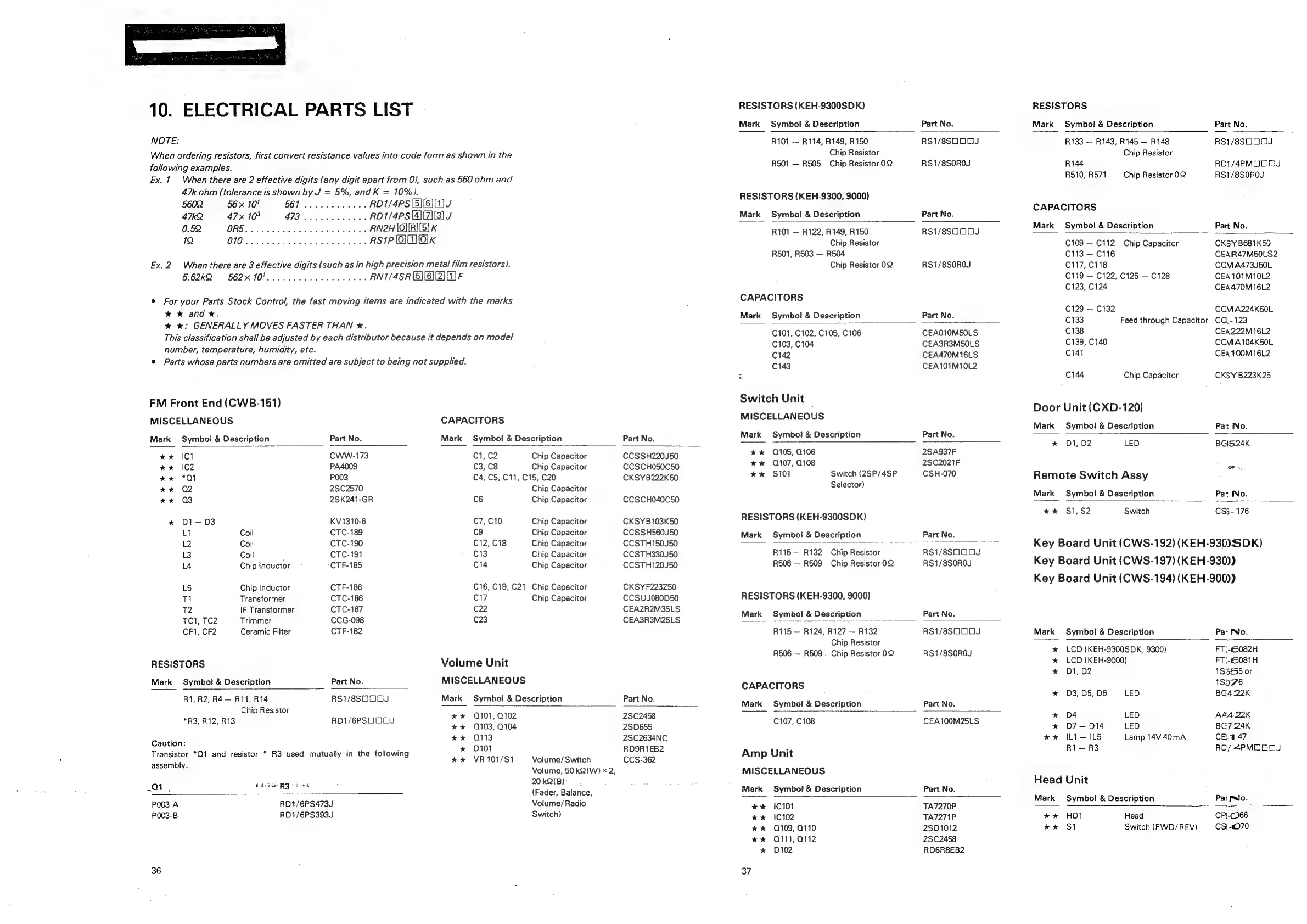

10. ELECTRICAL PARTS LIST
NOTE:
When ordering resistors, first convert resistance values into code form as shown in the
following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0}, such as 560 ohm and
47k ohm (tolerance is shown by J = 5%, and K = 10%).
5602 56 x 10! 567
47kQ 47x 10° 473
0.52 ORS kee ves
72 ONO inn Mech Ge des
Ro1/4Ps SG) 6My
RoO1/4Psa|Bly
RN2H [O}IRIB) K
Rs1P OIG
Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).
§.62kQ. 562x10'.........
RN1/4SR (I BIZIMF
e For your Parts Stock Control, the fast moving items are indicated with the marks
xk k and.
*% #2 GENERALLY MOVES FASTER THAN x.
This classification shall be adjusted by each distributor because it depends on model
number, temperature, humidity, etc.
© Parts whose parts numbers are omitted are subject to being not supplied.
FM Front End (CWB-151)
MISCELLANEOUS
Mark Symbol & Description Part No.
x 1C1 CWW-173
**x C2 PA4009
xk* *01 P003
xx Q2 2SC2570
xx Q3 2SK241-GR
x DI-D3 KV1310-6
L1 Coil CTC-189
L2 Coil CTC-190
L3 Coil CTC-191
L4 Chip Inductor CTF-185
L5 Chip Inductor CTF-186
T1 Transformer CTC-186
T2 IF Transformer CTC-187
TC1, TC2 Trimmer CCG-098
CFi, CF2 Ceramic Filter CTF-182
RESISTORS
Mark Symbol & Description Part No.
R1, R2, R4 — R11, R14 RS1/8SOO0J
Chip Resistor
*R3, R12, R13 RD1/6PSOOOS
Caution:
Transistor *Q1 and resistor * R3 used mutually in the following
assembly.
_O1 Pecereds - MaEonS
P003-A RD1/6PS473J
P003-8 RD1/6PS393J
36
CAPACITORS
Mark Symbol & Description Part No.
C1, C2 Chip Capacitor CCSSH220550
C3, C8 Chip Capacitor CCSCHO050C50
C4, C5, C11, C15, C20 CKSYB222K50
Chip Capacitor
cé6 Chip Capacitor CCSCH040C50
C7, C10 Chip Capacitor CKSYB103K50
cg Chip Capacitor CCSSH560J50
C12, C18 Chip Capacitor CCSTH150J50
C13 Chip Capacitor CCSTH330J50
C14 Chip Capacitor CCSTH120J50
C16, C19, C21 Chip Capacitor CKSYF223Z50
Ci7 Chip Capacitor CCSUJ080D50
C22 CEA2R2M35LS
C23 CEA3R3M25LS
Volume Unit
MISCELLANEOUS
Mark Symbol & Description Part No.
* x 0101, Q102 2SC2458
* * 0103, 0104 2SD655
** 0113 2SC2634NC
* D101 RDOR1EB2
* * VR101/S1 Volume/ Switch CCS-362
Volume, 50 k2(W) x 2,
20 kQ(B):
(Fader, Balance,
Volume/ Radio
Switch)
RESISTORS (KEH-9300SDK)
Mark Symbol & Description Part No.
R101 — R114, R149, R150 RS1/8SOOOJ
Chip Resistor
R501 — R505 Chip Resistor 02 RS1/8SOROJ
RESISTORS (KEH-9300, 9000)
Mark Symbol! & Description Part No.
R101 — R122, R149, R150 RS1/8SOOOJ
Chip Resistor
R501, R503 — R504
Chip Resistor 02 RS1/8SOROJ
CAPACITORS
Mark Symbol & Description Part No.
C101, C102, C105, C106 CEA010M50LS
C103, C104 CEA3R3M50LS
C142 CEA470M16LS
C143 CEA101M10L2
Switch Unit
MISCELLANEOUS
Mark Symbol & Description Part No.
* * 0105, 0106 2SA937F
* * =Q107, Q108 2SC2021F
** $101 Switch (2SP/4SP CSH-070
Selector)
RESISTORS (KEH-9300SDK)
Mark Symbol & Description Part No.
R115 — R132 Chip Resistor RS1/8SOO0OJ
R506 — R509 Chip Resistor 0Q RS1/8S0RO0J
RESISTORS (KEH-9300, 9000)
Mark Symbol & Description Part No.
R115 — R124, R127 — R132 RS1/8SOOOJ
Chip Resistor
R506 — R509 _ Chip Resistor 0Q RS1/8SO0ROJ
CAPACITORS
Mark Symbol & Description Part No.
C107, C108 CEA100M25LS
Amp Unit
MISCELLANEOUS
Mark Symbol & Description Part No.
* x 10101 TA7270P
* * 10102 TA7271P
** 109, 0110 2SD1012
*x* Q111,0112 2S8C2458
* D102 RD6R8EB2
37
RESISTORS
Mark Symbol & Description Part No.
R133 — R143, R145 — R148 RS1/8SOOOJ
Chip Resistor
R144 RO1/4PMOO00J
R510, R571 Chip Resistor 02 RS1/8S0ROJ
CAPACITORS
Mark Symbol & Description Part No.
C109 — C112 Chip Capacitor CKSYB681K50
C113 — C116 CEAR47M50LS2
C117, C118 COMA473J50L
C119 — C122, C125 — C128 CEA101M10L2
C123, C124 CEA470M16L2
C129 — C132 CQMA224K50L
C133 Feed through Capacitor CC.-123
C138 CEA222M16L2
C139, C140 COMA104K50L
C141 CEA100M16L2
C144 Chip Capacitor CKSYB223K25
Door Unit (CXD-120)
Mark Symbol & Description Pat No.
«x D1,D2 LED BGI524K
. > a
Remote Switch Assy
Mark Symbol & Description Pat INo.
** $1,S2 Switch CS3- 176
Key Board Unit (CWS-192) (KEH-930SDK)
Key Board Unit (CWS-197) (KEH-930))
Key Board Unit (CWS-194) (KEH-900))
Mark Symbol & Description Pat No.
* LCD (KEH-9300SDK, 9300) FT|-6082H
%* LCD (KEH-9000) FT|-€6081H
* D1,D2 1$5555 or
18076
* D3, D5, D6 LED BG4 22K
x D4 LED AAA 22K
*x D7—D14 LED BG7 24K
wx IL1—IL5 Lamp 14V 40mA CE. 4 47
R1 — R3 RO/4PMOOgJ
Head Unit
Mark Symbol & Description Pat Po.
*x* HD! Head CP-O66
we SI Switch (FWD/REV) CS-e070
