M-IS21
5
35
35
17
30
30
33
33
12
33
33
30
30
18
23
3
23
22
21
2
1 AF Assy AWU7337
2 AMP Assy AWU7340
3 POWER SUPPLY Assy AWU7344
NSP 4 PRIMARY Assy AWU7345
NSP 5 SECONDARY Assy AWU7350
6 HP Assy AWU7351
7 METER Assy AWU7353
8 METER CONNECT Assy AWU7356
9 Power Transformer ATS7249
10 Fuse (FU1 : T2.5A) REK1026
11 VU Meter AAW7002
12 DC FAN Motor AXM7003
NSP 13 Chassis A ANA7086
14 Rear Panel See Contrast table (2)
15 Lens A AAK7614
16 Rubber Sheet AEB1111
17 Mold A AMR7005
18 Mold B AMR7006
19 Lens Holder A AMR7245
20 Refrector AMR7248
21 Holder ANG7009
22 Power PAC Holder ANG7109
23 Heat Sink ANH7058
24 • • • • •
25 Escutcheon A AAK7617
26 Top Panel AAN7192
27 Front Panel A AMB7564
28 Side Bonnet ANE7242
29 Screw With Washer ABA1005
30 Screw ABA1021
31 Screw FBT40P060FZK
32 Screw BBZ30P080FMC
33 Screw BBZ30P180FMC
34 Screw BMZ30P060FZK
35 Screw BPZ30P350FZK
36 Screw VPZ30P080FMC
37 Binder ZCA-SKB90BK
NSP 38 BIND Assy AWU7349
Mark No. Description Part No.
Mark No. Description Part No.

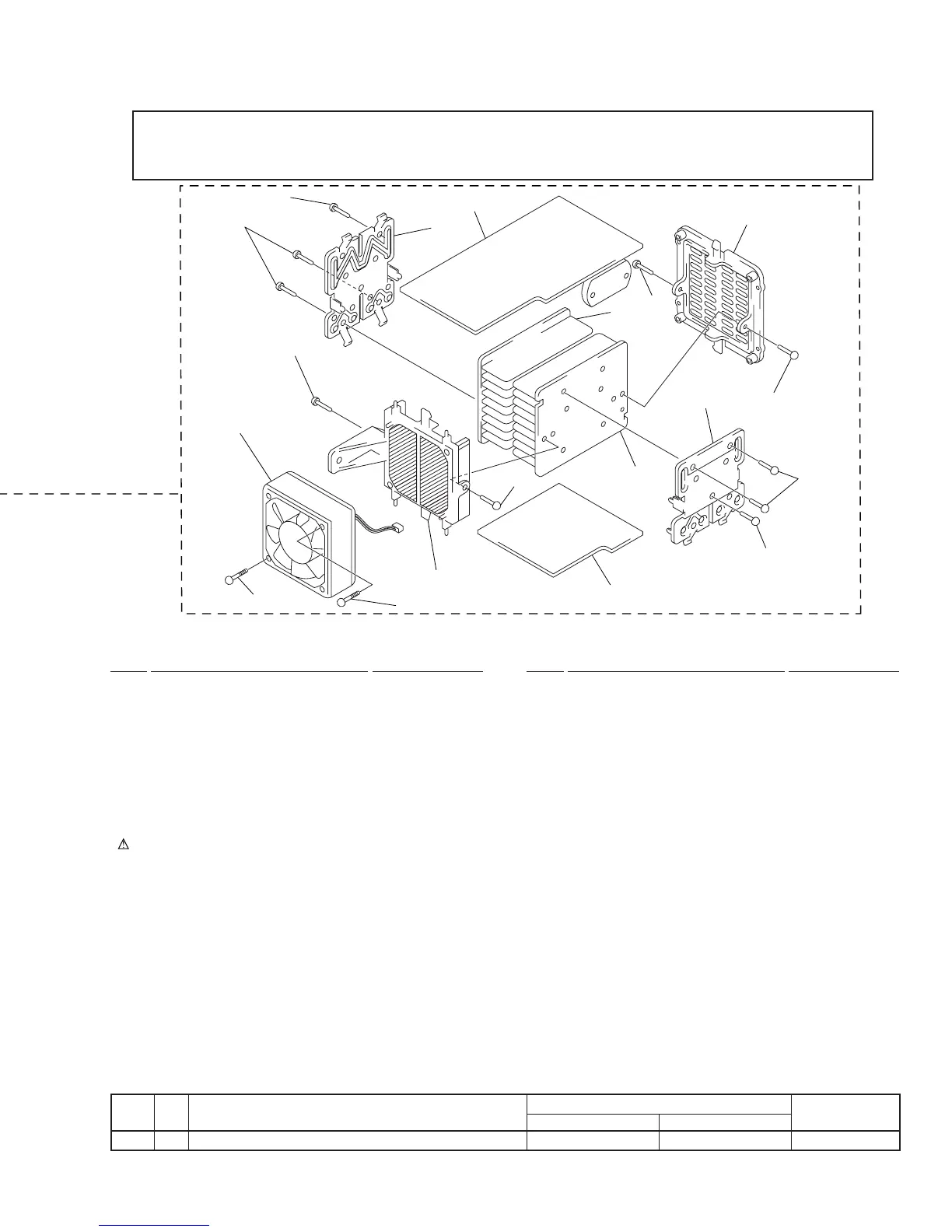

(1) EXTERIOR PARTS LIST
Mark No. Symbol and Description
Part No.
Remarks
MYXJ Type NVXJ Type
14 Rear Panel ANC7823 ANC7839
(2) CONTRAST TABLE
M-IS21/MYXJ and NVXJ are constructed the same except for the following :
Caution when disassemble.
Even if the power supply code is pulled out from the outlet, neither C11 nor C12 of AF ASSY are discharged.
Please discharge C11 and C12 of AF ASSY by the resistor of 100 Ω or more before removing AF ASSY or POWER SUPPLY ASSY.
There is a possibility to destroy the transistor, and Please discharge by the resistor of 100 Ω or more.
To Next Page
