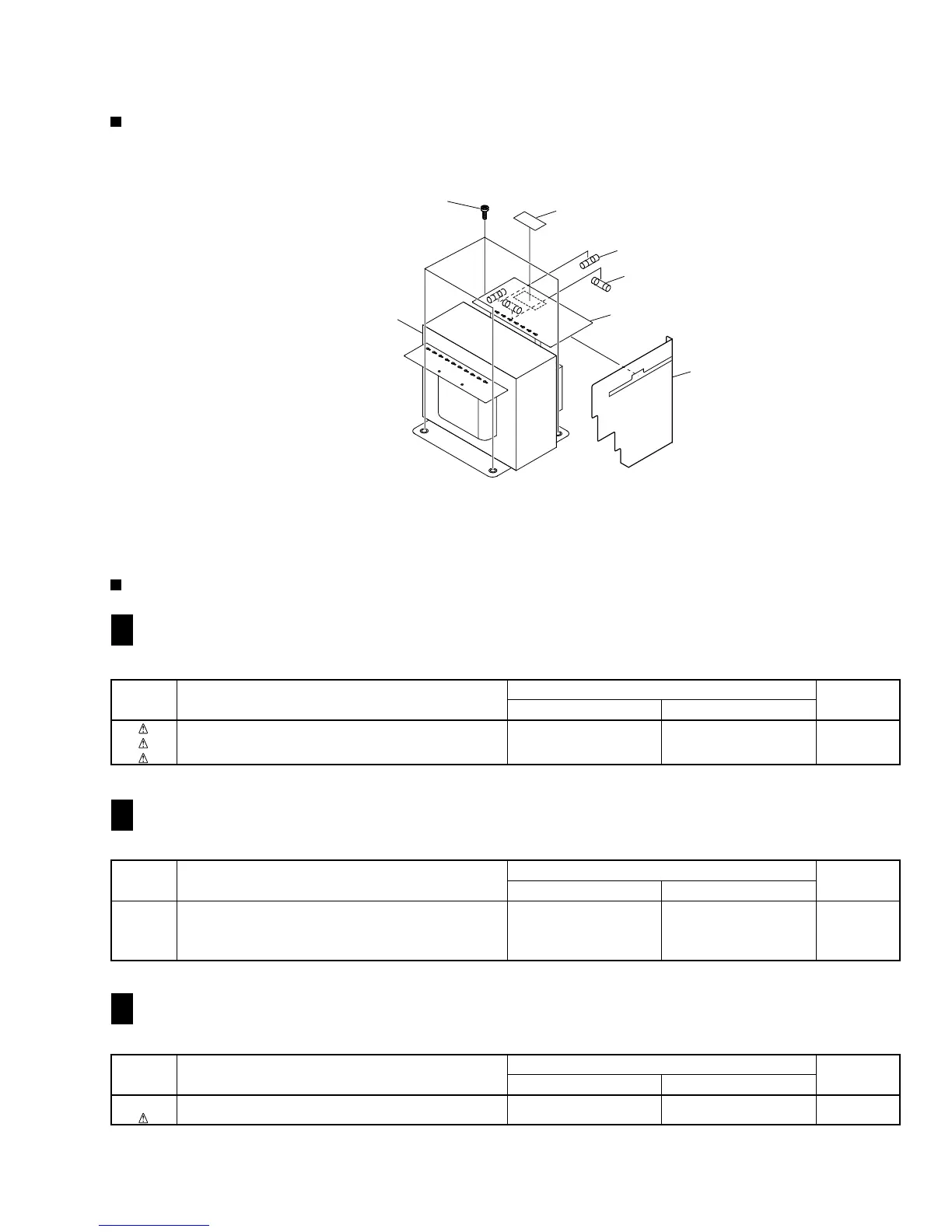

Pioneer M-IS21 - Exploded Views

M-IS21
3
Screw (FBT40P060FZK)
No.1
No.1
No.3
PRIMARY ASSY
No.2
Power Transformer
AMP ASSY
F
B
Mark Symbol and Description
Part No.
Remarks
AWU7337 AWU7338
L1 LINE FILTER ATF7019 ATF7020
S2 VOLTAGE SELECT SWITCH Not used AKX7013
T1 STANDBY TRANSFORMER ATT7050 ATT7048
PRIMARY ASSY
F
D
AF ASSY
F
A
AWU7338 and AWU7337 are constructed the same except for the following :
CONTRAST OF PCB ASSEMBLIES
EXPLODED VIEWS
Mark Symbol and Description
Part No.
Remarks
AWU7340 AWU7341
C3308 CKSQYB822K50 Not used
C3319, C3320 CCSQCH6R0D50 CCSQCH100D50
C3327, C3328 CCSQCH680J50 Not used
R3307 RS1/10S100J Not used
AWU7341 and AWU7340 are constructed the same except for the following :
Mark Symbol and Description
Part No.
Remarks
AWU7345 AWU7346
H103–H106 FUSE CLIP Not used AKR7001
S1 VOLTAGE SELECT SWITCH Not used AKX7006
AWU7346 and AWU7345 are constructed the same except for the following :
