M-IS21
2
1. CONTRAST OF MISCELLANEOUS PARTS
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
561
473
R50
1R0
5621
560
47k
0.5
1
RD1/4PU J
RD1/4PU J
RN2H K
RS1P K
56 x 10
1
47 x 10
3
R50
1R0
561
473
5.62k RN1/4PC F562 x 10
1
5621

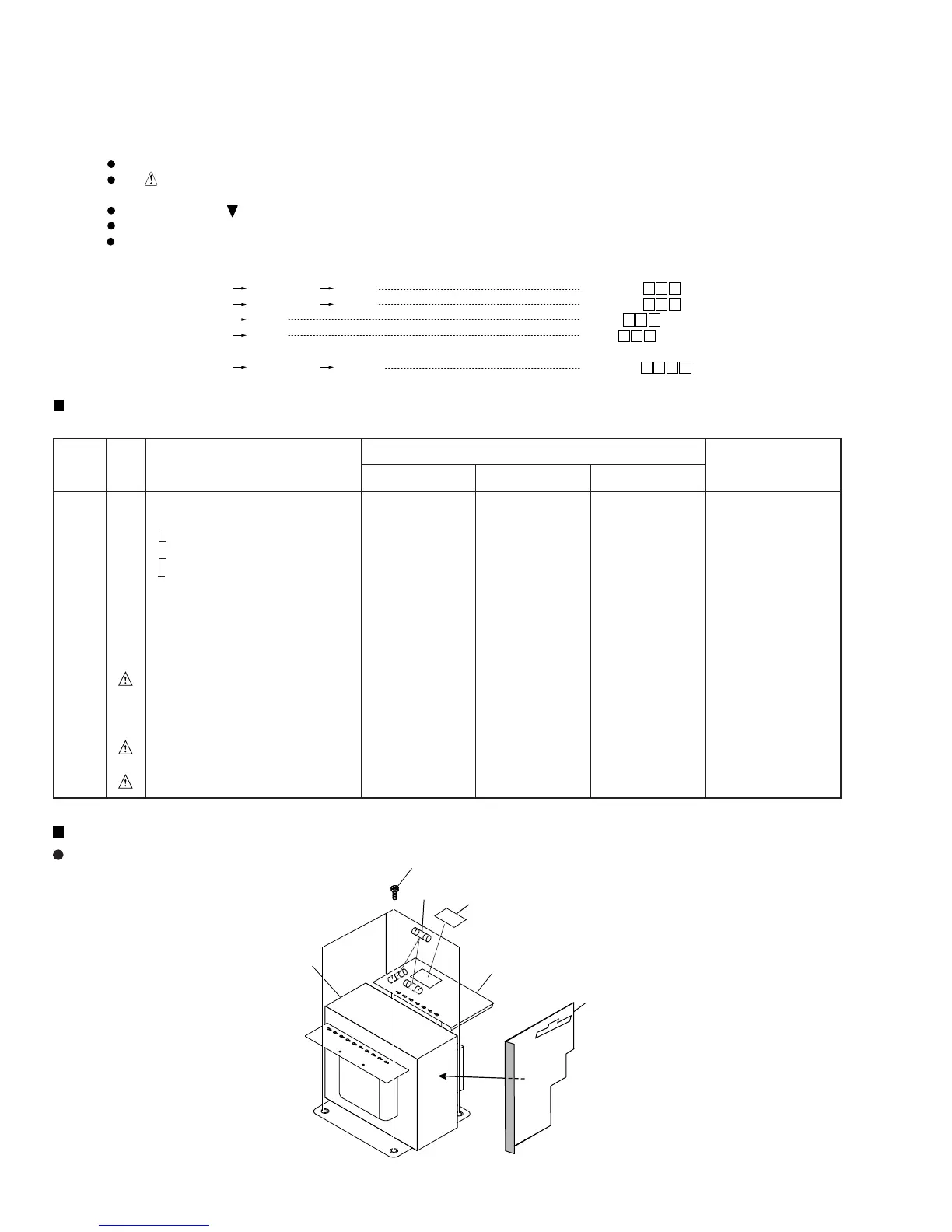

M-IS21/DBDXJ, DLXJ/NC and MYXJ are constructed the same except for the following :
CONTRAST TABLE
Part No.
Remarks
MYXJ type DBDXJ type DLXJ/NC type
PCB ASSEMBLEIES
NSP MAIN ASSY AWK7521 AWM7513 AWM7513
P5-1 AF ASSY AWU7337 AWU7338 AWU7338
P5-2 AMP ASSY AWU7340 AWU7341 AWU7341
P5-4 NSP PRIMARY ASSY AWU7345 AWU7346 AWU7346
PACKING
P3-3 Packing Case AMP AHD7747 AHD7759 AHD7673
EXTERIOR
P5-9 Power Transformer ATS7249 ATS7247 ATS7247
P5-14 Rear Panel ANC7823 ANC7843 ANC7734
Barrier Not used AAK7726 AAK7726 No.1
NSP Fuse Card Not used AAX7098 AAX7098 No.2
Fuse (FU1 ) REK1026 REK1029 REK1029
(FU1 : T2.5A) (FU1 : T5A) (FU1 : T5A)
Fuse (FU2, FU3 : T2.5A) Not used REK1026 REK1026 No.3
Ref.
No.
Mark Symbol and Description
Note : • The numbers in the remarks column correspond to the numbers on the exploded diagram. Refer to “EXPLDED VIEWS”
EXPLDED VIEWS
EXTERIOR SECTION
Screw (FBT40P060FZK)
No.3
Power Transformer
PRIMARY ASSY
No.2
No.1
To Next Page
