Pioneer PD-F607 - Exploded Views; Packing Section Diagrams; Exterior and Front Panel Diagrams

PD-F607, PD-F507
5

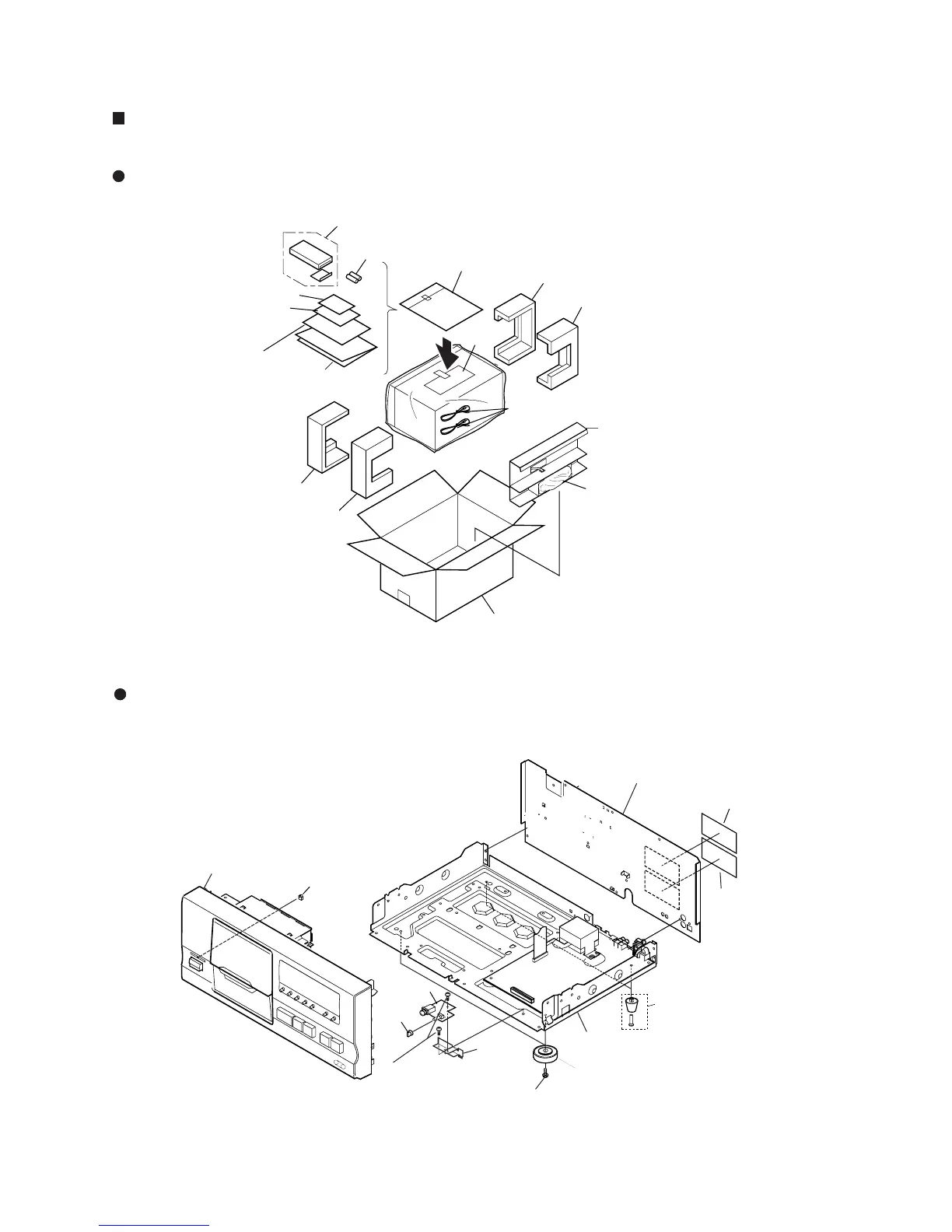

EXTERIOR and FRONT PANEL SECTION
EXPLODED VIEWS
PACKING SECTION
No.4
Packing Case
No.2
No.1
Front
Polyetylene Bag
No.3
Protecter F
Protecter F
Protecter R
Protecter R
Operating Instructions
Warranty Card
Remote Control unit
Batteery
Control Cable
N0.13
Rear Base
Under Base
Foot
Screw (BBZ30P060FMC)
Screw (IBZ30P080FMC)
No.12
Control Panel
No.5
No.6,No.8
No.7
No.11
No.10
No.9
