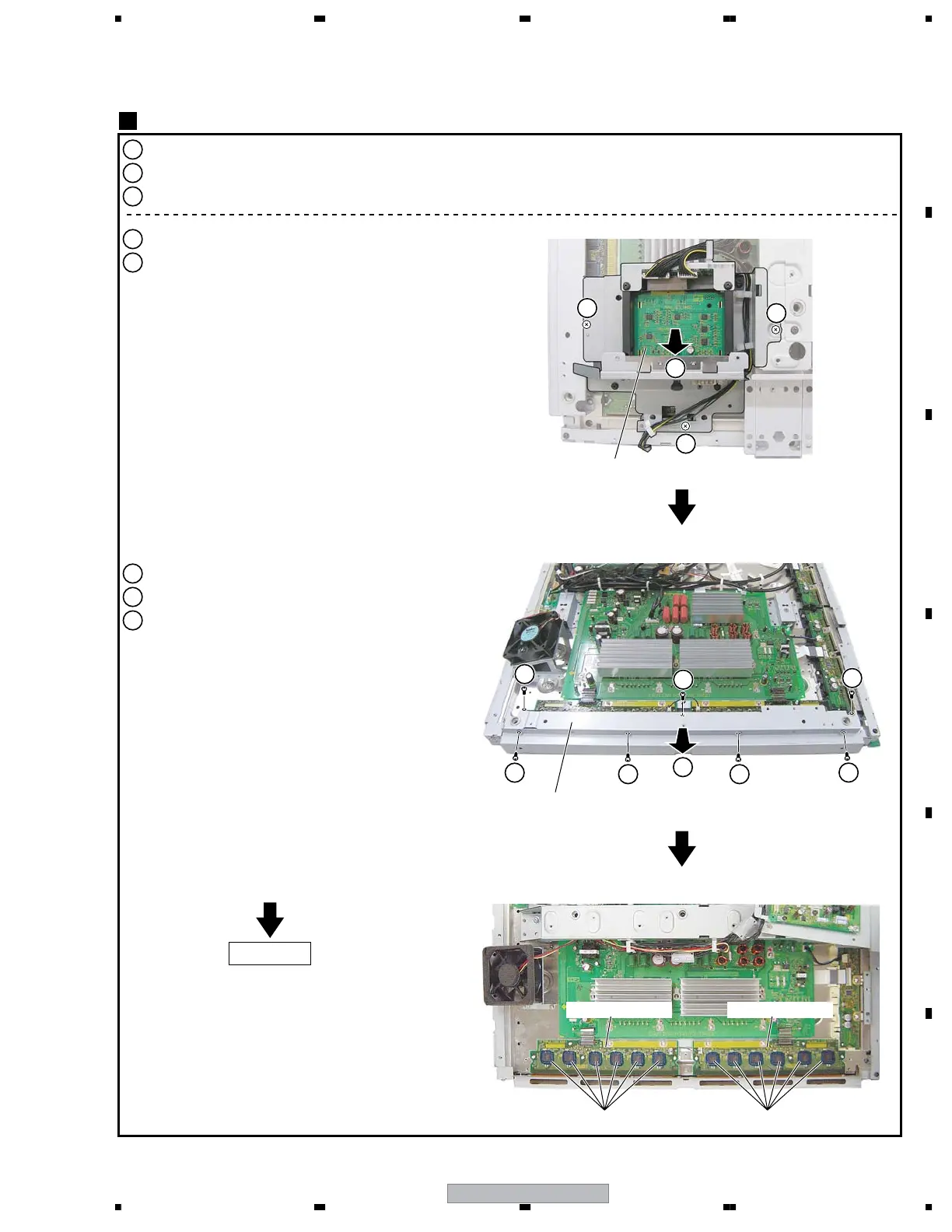

Exchange of SCAN IC
6
1
Remove the front case Assy. (See step ¥ .)
2
Remove the rear case. (See step ø .)
3
Remove the bottom cover. (See step π .)
4
Remove the three screws.
5
Remove the COMM bracket section.
6
Remove the three screws.
7
Remove the four screws.
8
Remove the front chassis LB.
6
6
6
7
7 7
7
Front chassis LB
42 SCAN B Asssy
SCAN IC ×6
42 SCAN A Asssy
4
4
4
COMM bracket section
5
8
SCAN IC ×6
Exchange
