Pioneer PDP-4270XA Service Manual

PDP-427XD
141
5678
56
7
8
C
D
F
A
B
E
9. RS-232C
9.1 OUTLINE OF RS-232C COMMAND
9.1.1 PREPARED TOOLS
9.1.2 USING RS-232C COMMANDS
It is necessary to prepare the following one to use 232C command.
• PC
• Application for control
• 232C cable (straight)
∗ It is likely not to move correctly in Win 98 faction/Me and Win for foreign countries.
∗ The setting of the Com port cannot be communicated if it doesn't do correctly.
(Please follow a set explanation of PC in the Com port)
For the PDP-4270XD, PDP-4270XA, PDP-427XD and PDP-427XA series Plasma Displays, the circuitry is structured as
shown in the diagram below to support the SR+ system. Controlling with either the SR+ system or RS-232C commands can
be selected.
As the SR+ system is selected at shipment, to control with RS-232C commands in servicing it is necessary to switch the
paths. After servicing, be sure to return the setting to the SR+ system.
There are "How to switch SR+/RS-232C by remote control in the Standby Mode" and "How to switch SR+/RS-232C by
remote control in the INTEGRATOR MENU" as a Method
1 To select SR+/RS-232C by remote control in Standby Mode.
• During Standby mode, hold the keys other than the [POWER] key on the remote control, the following operation is
done within 10 seconds.
To select from SR+ to RS-232C/To select from RS-232C to SR+.
• During standby mode, hold the [VOLUME+ (or -)] key on the remote control unit pressed for 3 to 10 seconds.
→Then within 3 seconds after the key is released, hold the [2-screen] key released, use the [SET (ENTER)] key on
the remote control unit to set to RS-232C (the baud rate last selected is chosen) or the [HOME MENU] key to set to
SR+.
• During IF Standby mode (once 10 seconds or more has passed after the LED goes dark during communication), the
first keypress may not be accepted. In such a case, for a key operation, first press any key other than the [POWER]
key and [CH] keys, then the desired key.
• At the switch SR+/RS-232C, the LED will be blinked on the fixed time.
2 To select SR+/RS-232C in the INTEGRATOR MENU.
• How to enter INTEGRATOR MENU.
During standby mode, press the [Home Menu] key, and then press the [POWER] key within 3 seconds. During
factory mode, hold the [INTEGRATOR] key.
• In INTEGRATOR MENU, there is a OSD where SR+ (or RS-232C) is turned on/off, and it switches on the screen.

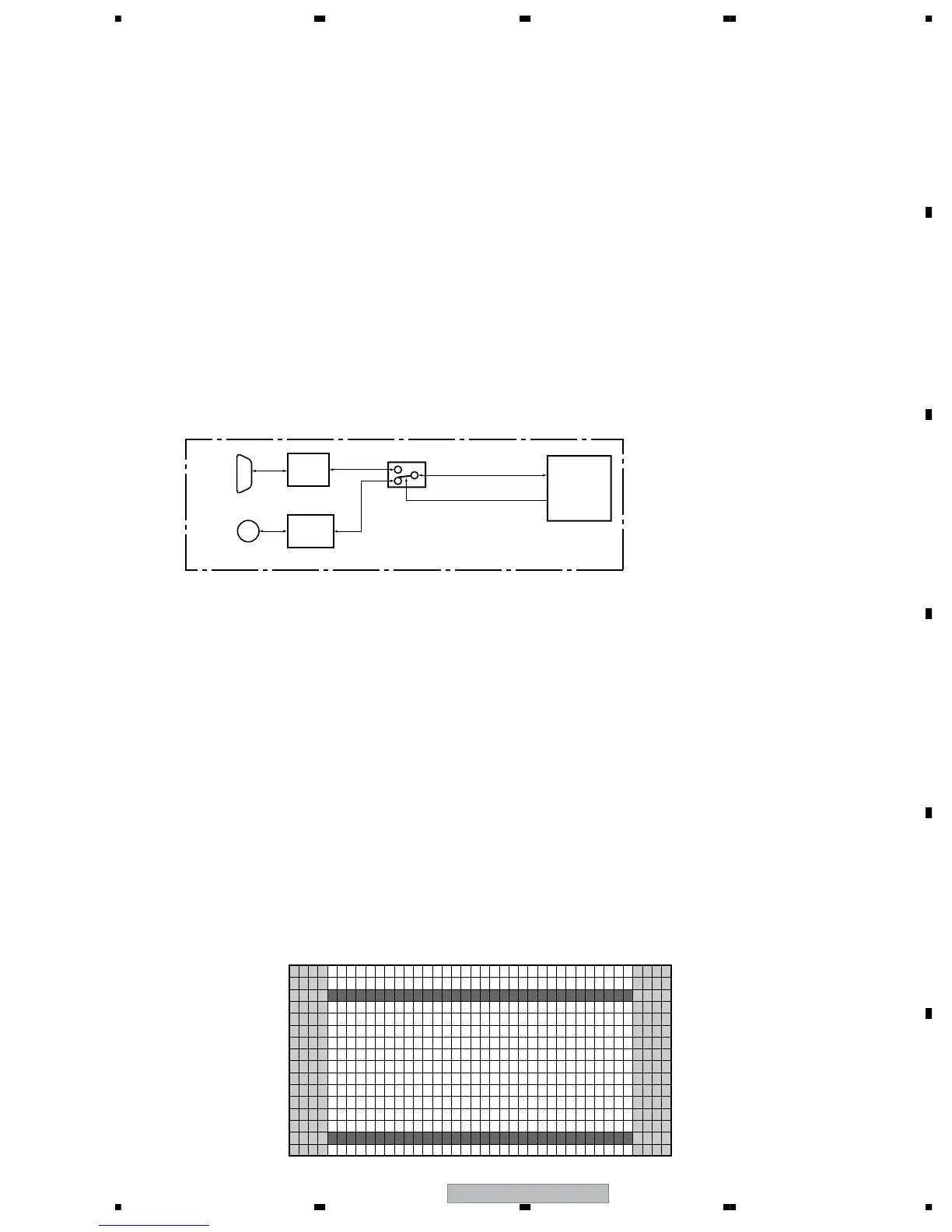

7 Rough diagram of switching between SR+ and RS-232C (STEP-UP Model Only)
7 How to switch SR+/RS-232C (STEP-UP Model Only)
SR BLOCK
MAIN Assy
IF UCOM BLOCK
232C (DSUB_9P)
TXD (EXT), RXD (EXT)
SR_EN_B
SR+ (SR out)
232C
Driver
IC8301
(IF UCOM)
SR+
Interface
R+S
NTIEGARTORMENU
O
<=> N
1
5
10
15
16
15 10 15 20 25 30 35 40

Pioneer PDP-4270XA Specifications

General

3D	No
Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	31500 g
Tuner type	Analog
Pixel pitch	- mm
Product color	Black, Silver
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	42 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
USB 2.0 ports quantity	0
Annual energy consumption	- kWh
Display diagonal (metric)	106 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	287 W
Digital signal format system	-
Sound enhancement technology	FOCUS, SRS, TruBass
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE
