Pioneer PDP-4270XA Service Manual

PDP-427XD
4
1234
1234
C
D
F
A
B
E

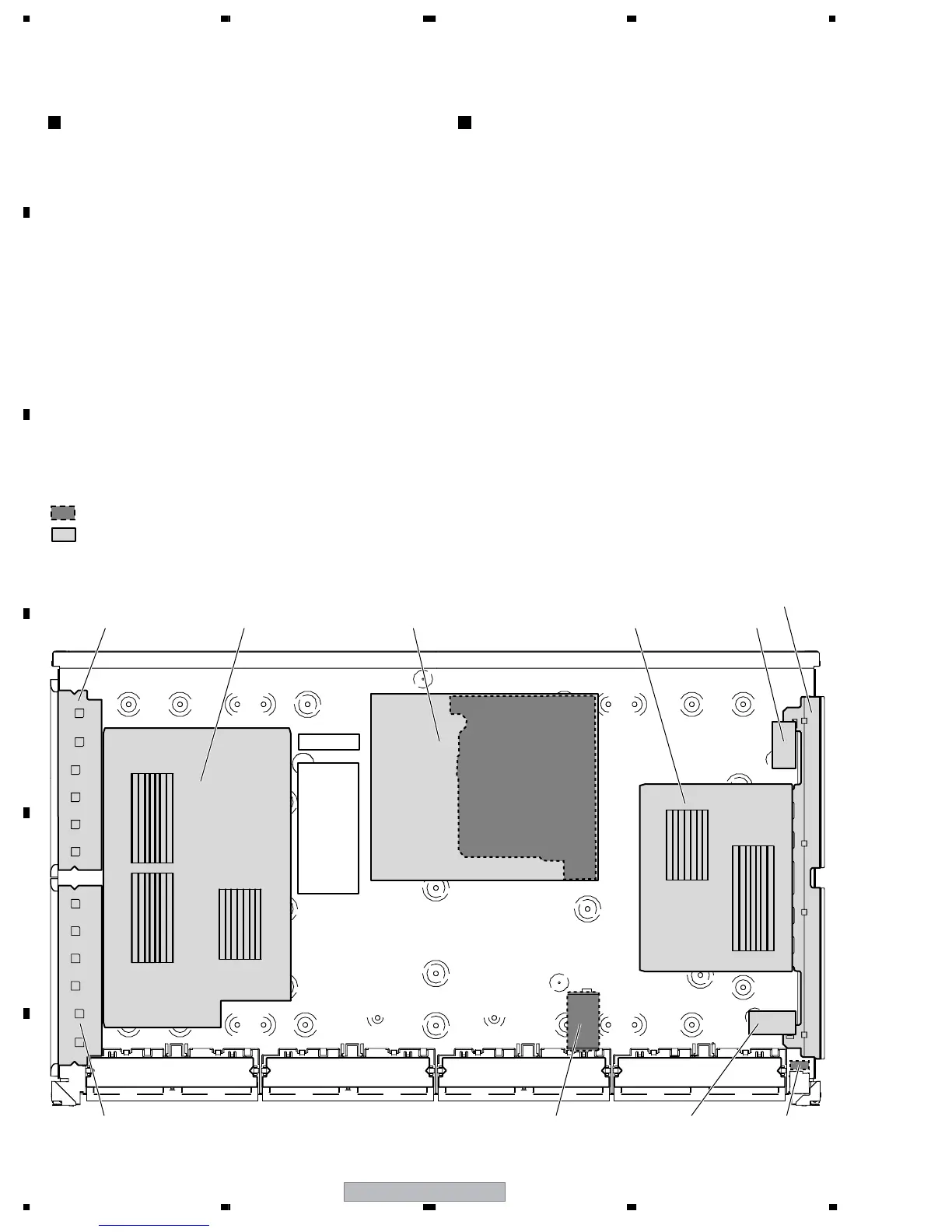

Fig. High Voltage Generating Point (Rear view)
42 SCAN B Assy
SUS CLAMP 2 Assy
Conductive plate X
42 Y DRIVE Assy 42 X DRIVE Assy SUS CLAMP 1 AssyPOWER SUPPLY Unit
AC inlet Power switch (S1)42 SCAN A Assy
: Part is the High Voltage Generating Points
other than the Charged Section.
The places where the commercial AC power is used without
passing through the power supply transformer.
If the places are touched, there is a risk of electric shock. In
addition, the measuring equipment can be damaged if it is
connected to the GND of the charged section and the GND of the
non-charged section while connecting the set directly to the
commercial AC power supply. Therefore, be sure to connect the
set via an insulated transformer and supply the current.
1. Power cord
2. AC inlet
3. Power switch (S1)
4. Fuse (In the POWER SUPPLY Unit)
5. STB transformer and Converter transformer
(In the POWER SUPPLY Unit)
6. Other primary side of the POWER SUPPLY Unit
: Part is Charged Section.
Charged Section
The places where voltage is 100 V or more except for the charged
places described above. If the places are touched, there is a risk of
electric shock.
The VSUS voltage remains for several minutes after the power to
the unit is turned off. These places must not be touched until
about 10 minutes after the power is turned off, or it is confirmed
with a tester that there is no residual VSUS voltage.
If the procedures described in “10.3 POWER ON/OFF
FUNCTION FOR THE LARGE-SIGNAL SYSTEM” are
performed before the power is turned off, the voltage will be
discharged in about 30 seconds.
POWER SUPPLY Unit........................................................(205 V)
42 X DRIVE Assy...............................................(–180 V to 205 V)
42 Y DRIVE Assy...............................................................(500 V)
42 SCAN A Assy............................................................... (500 V)
42 SCAN B Assy............................................................... (500 V)
SUS CLAMP 1 Assy...........................................(–180 V to 205 V)
SUS CLAMP 2 Assy...........................................(–180 V to 205 V)
High Voltage Generating Point

Pioneer PDP-4270XA Specifications

General

3D	No
Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	31500 g
Tuner type	Analog
Pixel pitch	- mm
Product color	Black, Silver
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	42 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
USB 2.0 ports quantity	0
Annual energy consumption	- kWh
Display diagonal (metric)	106 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	287 W
Digital signal format system	-
Sound enhancement technology	FOCUS, SRS, TruBass
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE
