(Caution) Take care for the cable handling. Careless handling inproduction line may cause this Failure.

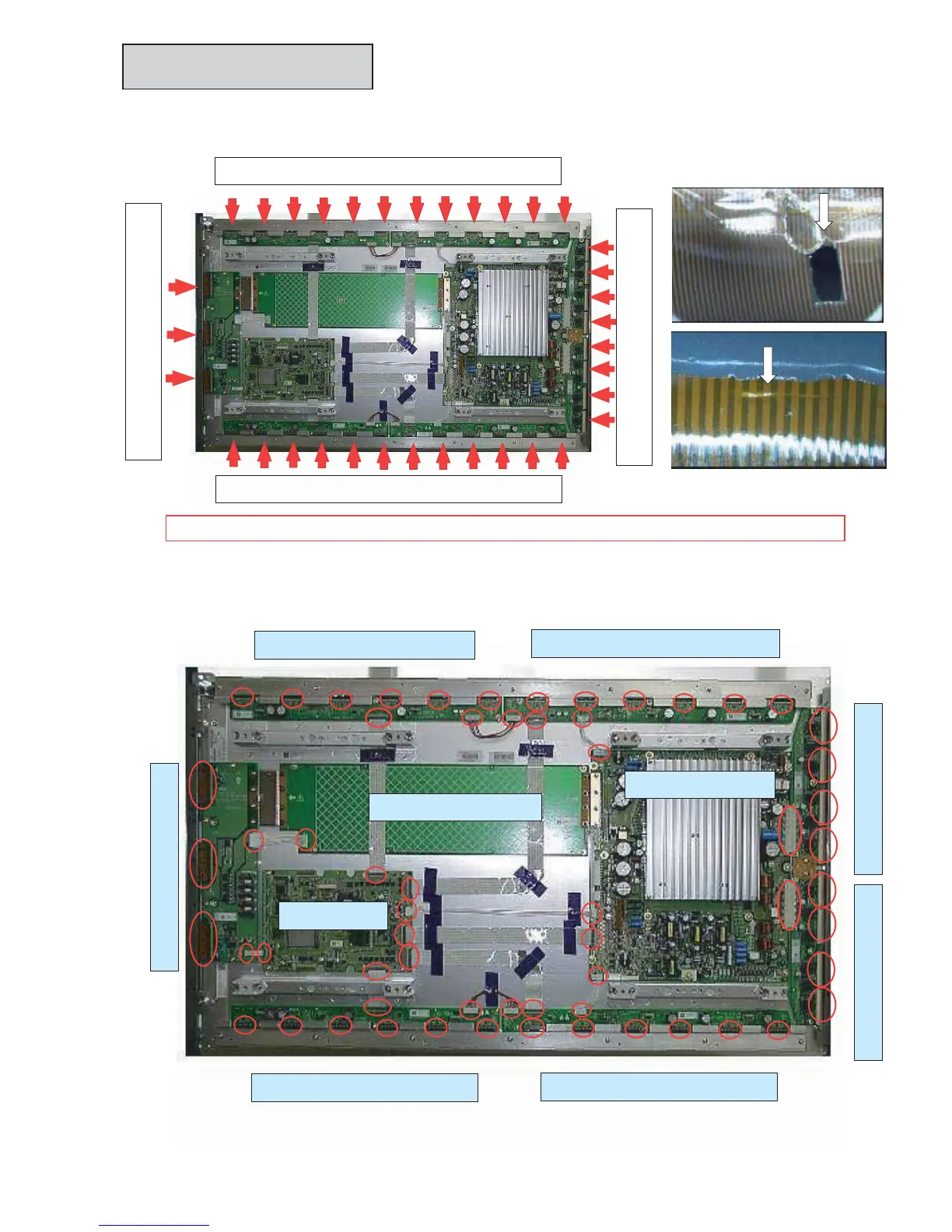

(3-1) Check connectors and cables for breakage or disconnection referring to the photos below.
(3) Connectors/Cables
Scan Voltage Flexible Cable
Data Relay Flexible Cable (UP)
Data Relay Flexible Cable (Down)
Common Voltage Flexible Cable
(3-2) Check connectors and cables whether they are connected and locked right.
See Page 114-115 for the right procedure of connection.
Data Relay Board (LU)
Data Relay Board (RU)
Common Connection Board
Data Relay Board (LD)
Data Relay Board (RD)
Scan Relay Board (D) Scan Relay Board(U)
Digital Board
Common Relay Board
High Voltage Board
