PDR-W839
AUTOMATIC ADJUSTMENT
[Procedure]
1. Press the INPUT key so that "OPTICAL" appears on the FL display.
\ If it was not displayed the Focus Offset Adjustment, press the AUTO SPACE key and shift to the
Focus Offset Adjustment.
2. Monitor the MPX signal with VC and set a CD disc.

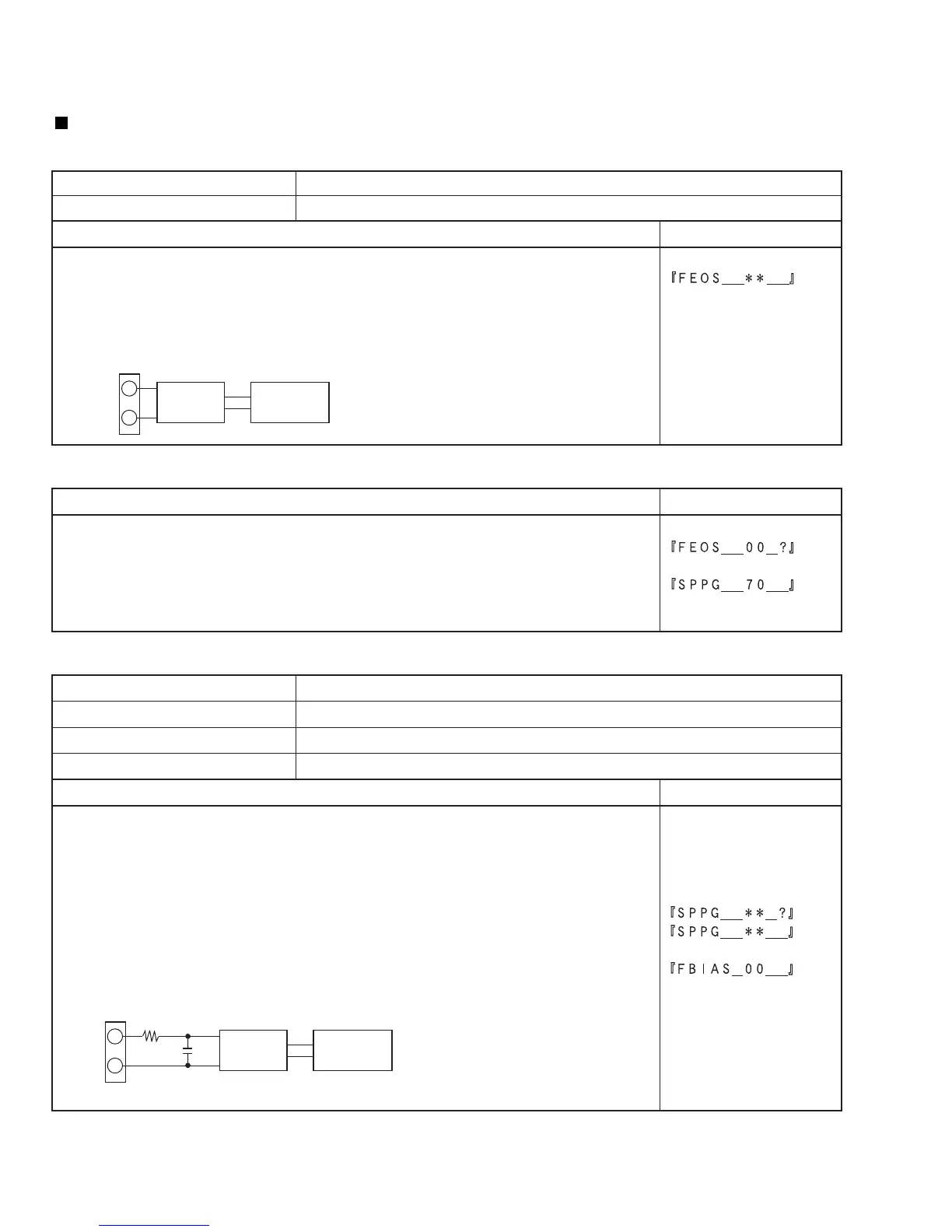

6.8.10 Preparation
CD test disc (STD-903)
CN102-pin 3 (MPX)
Test Point
Discs to be Used
Method
FL Indication
CN102
MPX
VC
3
6
10: 1 prove Oscilloscope
[Procedure]
1. Press the REC/REC MUTE key to start the automatic adjustment.
\ Execute it from "6.8.1 preparations" to "6.8.6 SPP Offset Adjustment" of the Manual Adjustment
automatically. And stop by the state that selected an item of next "6.8.7 Tracking Gain Adjustment" once.
6.8.11 Automatic Adjustment Start
Method
FL Indication
[Procedure]
1. Move the Pickup to center of the disc by pressing the SCAN key. ( 41 ¡¢ )
2. Monitor the MPX signal with VC and set a CD disc.
3. Press the FINALIZE key to FOCUS IN.
4. Press the PLAY/PAUSE key to turn the SPINDLE. (CAV)
5. Adjust the JOG key so that MPX waveform (MPP+SPP) becomes minimum.
6. Press the ENTER key to register the adjustment.
\ Stop the disc rotation and Excute "6.8.8 MPP Offset Readjustment" automatically. And select an item
of next "6.8.9 Focus Bias Adjustment", and stop with the state completed to average processing.
6.8.12 Tracking Gain Adjustment
Minimize (MPP + SPP)
CN102-pin 3 (MPX)
Test Point
Adjustment Value
Matching gains of pickup main signal output and sub-signal output.
Playback does not function, or incapable of searching.
Purpose
Symptom when Out of Adjustment
Adjustment method
FL Indication
CN102
MPX
VC
3
6
10: 1 prove Oscilloscope
39kΩ
0.001µF
To Next Page
