2 Connecting
Connecting16
Connecting
2
Assemble the speakers
Speaker Setup for BCS-414

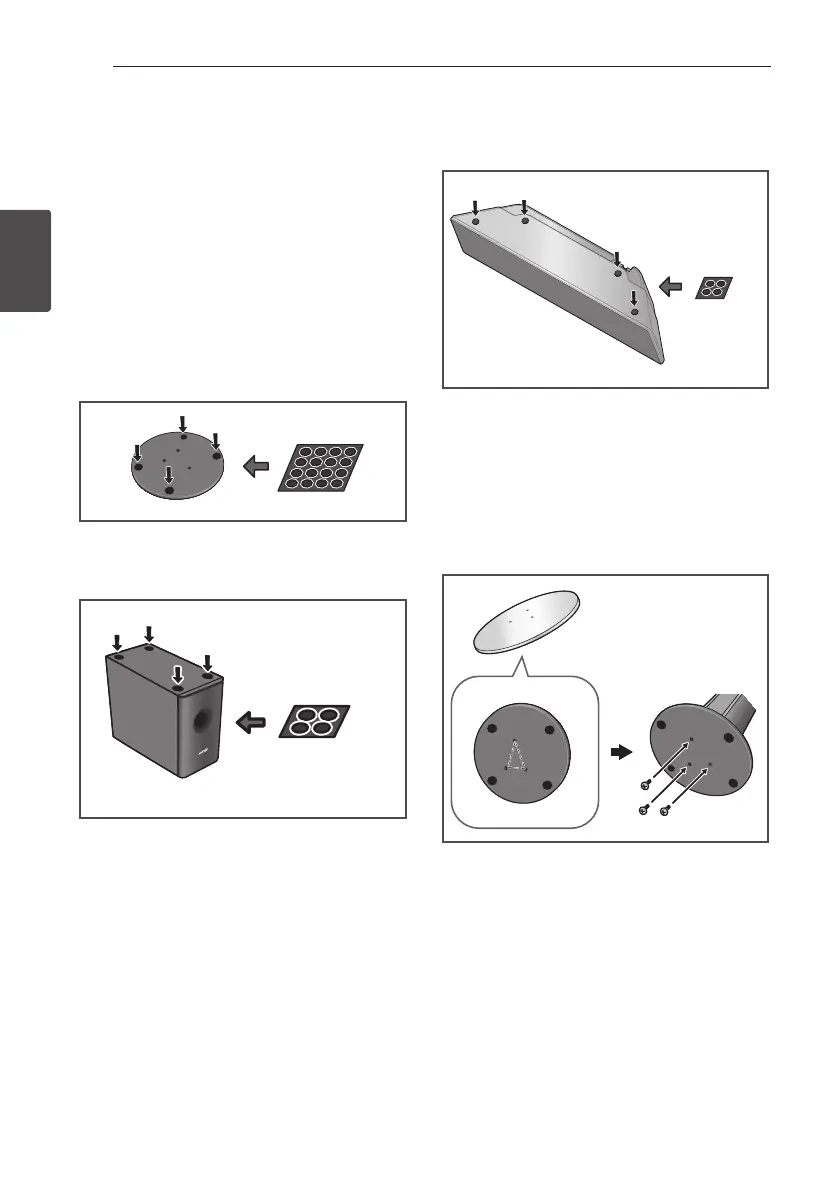

Preparing the speakers
1. Attach the non-skid pads to the base of each
speaker stand bases, the subwoofer and the
center speaker.
For speaker stand bases:
Use the supplied adhesive to attach four middle
pads to the base (bottom) of each speaker
stand base.
middle non-skid pads
Large non-skid pads
Rear
Front
small non-skid pads
thick cord
Plastic catch
5 mm
10 mm
5 mm to 7 mm
Mounting screw
(not supplied)
For subwoofer:
Use the supplied adhesive to attach four large
pads to the base of subwoofer.
Large non-skid pads
Rear
Front
small non-skid pads
thick cord
Plastic catch
5 mm
10 mm
5 mm to 7 mm
Mounting screw
(not supplied)
For center speaker:
Use the supplied adhesive to attach four small
pads to the base of center speaker.
middle non-skid pads
Large non-skid pads
Rear
Front
small non-skid pads
thick cord
Plastic catch
5 mm
10 mm
5 mm to 7 mm
Mounting screw
(not supplied)
2. Attach the speaker stand bases to the stems
using the screws provided.
Once you have aligned the stem and base,
secure with the small screws at the points
shown below. Note that the speaker should
face in the direction of the base of the isosceles
triangle.
middle non-skid pads
Large non-skid pads
Rear
Front
small non-skid pads
thick cord
Plastic catch
5 mm
10 mm
5 mm to 7 mm
Mounting screw
(not supplied)
