Pioneer S-RS3SW - 3 Basic Items for Service; Pcb Locations

7
S-RS3SW
5
6 7 8
5
6 7 8
A
B
C
D
E
F
3. BASIC ITEMS FOR SERVICE

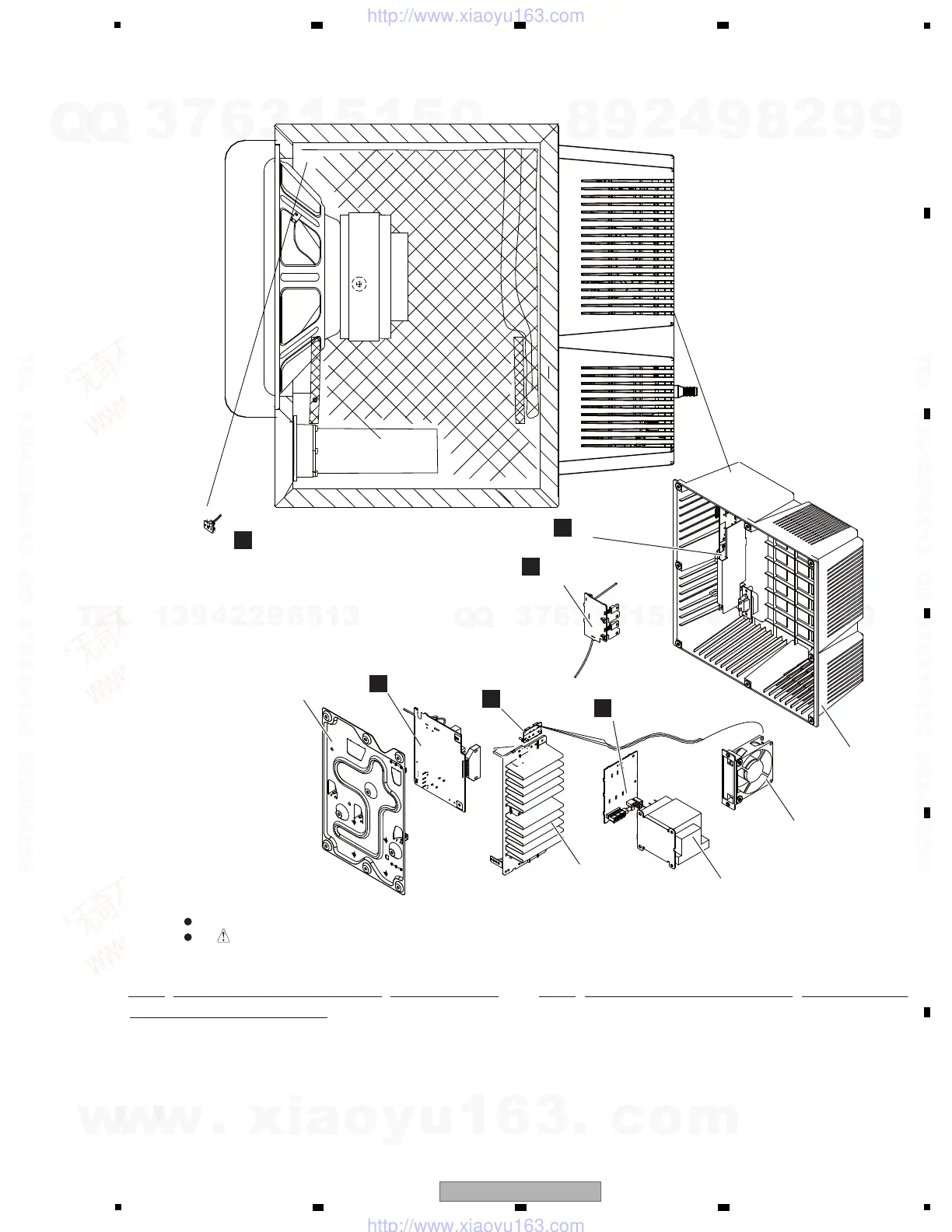

3.1 PCB LOCATIONS
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
NOTES:
Mark No. Description Part No.
LIST OF ASSEMBLIES
Mark No. Description Part No.
1..AMP ASSY XWZ4360
1..JACK ASSY XWZ4351
1..REGULATOR ASSY XWZ4358
> 1..TRANS ASSY XWM3442
1..LED ASSY XWM3438
1..FAN ASSY XWZ4359
A
TRANS ASSY
Chassis PSW
H/Sink PSW
PSW Trans
D
LED ASSY
F
FAN ASSY
E
JACK ASSY
B
DC FAN Motor
R/Cover PSW
REGULATOR
ASSY
AMP ASSY
C
