I
Z

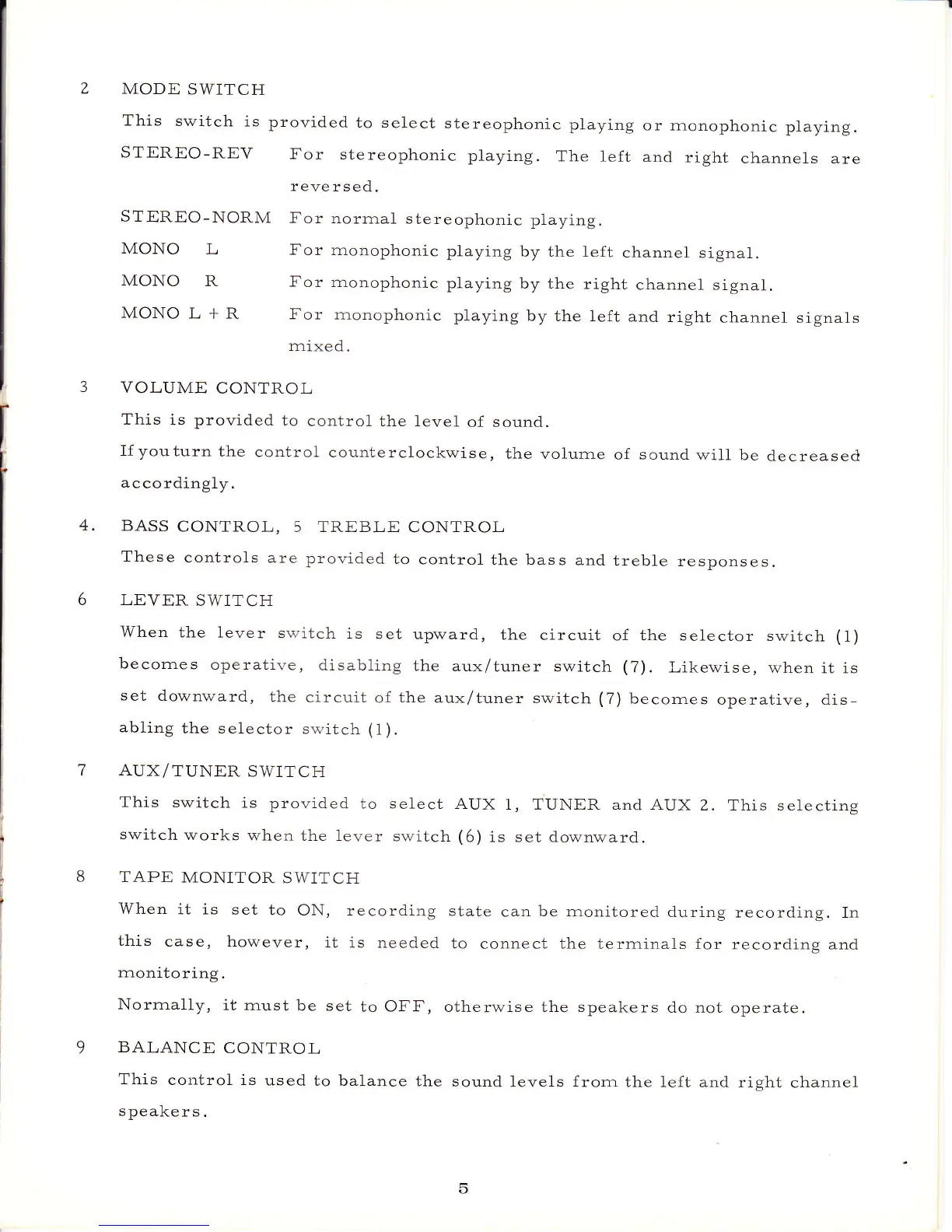

MODE
SWITCH
This
switch
is
provided
to
select
stereophonic
playing
or rrronophonic
playing.
STEREO-REV
For
stereophonic
playing.
The
left
and
right
channels
are
reversed.
STEREO-NORM
For
norrnal
stereophonic
playing.
MoNo
L
For
rnonophonic
playing
by the left
channel
signal.
MONO R
For
rnonophonic
playing
by the
right
channel
signal.
MONO
L +
R
For rnonophonic
playing
by
the
le{t and
right
channel
signals
rnixed.
3
VOLUME
CONTROL
This
is provided
to
control
the level
of
sound.
If
youturn
the
control
counterclockwise,
the volurne
of
sound
will be
decreased
accordingly.
4.
BASS
CONTROL,
5 TREBLE
CONTROL
These controls
are
provided
to
control
the bass and
treble
responses.
6
LEVER
SWITCH
ll/hen
the lever
switch
is
set
upward,
the
circuit
of the selector
switch
(
1)
becornes
operative,
disabling
the
aux/tuner
switch
(7).
Likewise,
when it is
set
downward,
the
circuit
of
the
aux/tuner
switch
(?)
becornes
operative,
dis-
abling
the selector
switch
(1).
7 AUX/TUNER
SWITCH
This switch
is
provided
to select
AUX
l, TUNER and AUX
2. This selecting
switch
works
when
the lever
switch (6)
is
set
downward.
B
TAPE
MONITOR
SVT]TCH
When it is
set
to
ON, recording
state
can
be
rnonitored
during
recording.
In
this
case,
however,
it is needed
to
connect the terrninals
for
recording and
rnonitoring.
Norrnally,
it rnust
be set
to OFF, otherwise the
speakers
do not
operate.
9
BALANCE
CONTROL
This
control
is used
to balance
the
sound
levels
frorn
the left
and right
channel
speakers.
5
