En
9
01
Before you start

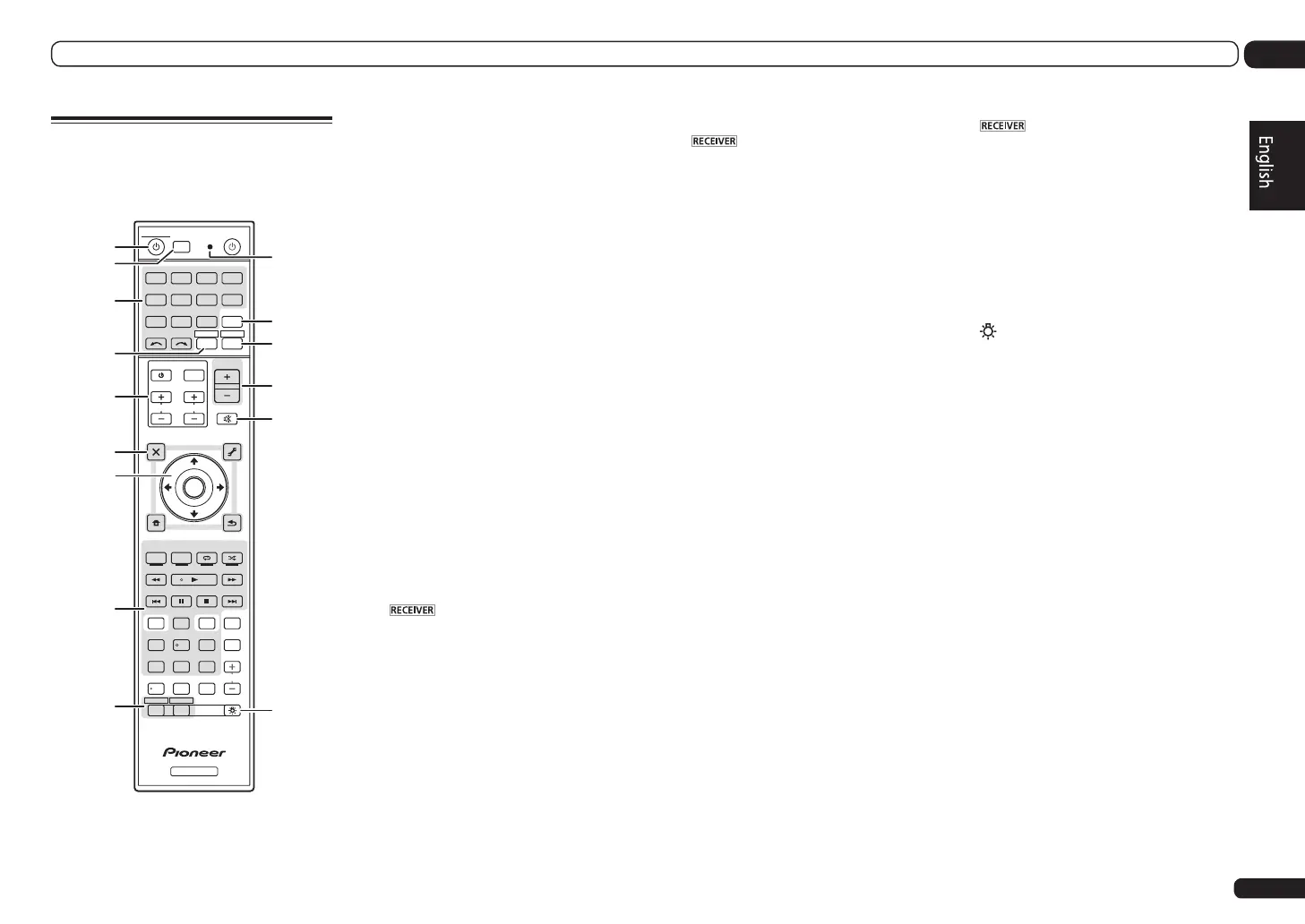

Remote control
(In case of SC-LX75)
This section explains how to operate the remote
control for the receiver.
LIGHT
RECEIVER
D.ACCESS
CH
LEVEL A.ATT DIMMER
SIGNAL SEL
MCACC SLEEP
TV
/
DTVMPX PQLS
PHASE
CTRL STATUSTHX
iPod CTRL
HOME
MENU
TUNE
TUNE
TOOLS
LIST
CH
TV CONTROL
INPUT
INPUT
SELECT
iPod
USBOPTION
SAT
TUNER
VIDEO
TV CTRL
ZONE 2 ZONE 3
ADPT
CDTV
RCU SETUP
SOURCERECEIVER
MULTI
OPERATION
BDR
BD DVDDVR
HMG
HDMI
RECEIVER
MUTE
MASTER
VOLUME
VOL
PRESET
TOP MENU
BAND GUIDE
T.EDIT
VIDEO
PARAMETER
AUDIO
PARAMETER
ENTER
PRESET
RETURN
PTY
SEARCH
AUTO
/
ALC
/
DIRECT
PGM
STEREO STANDARD
MENU
ADV SURR
AUDIO
INFO
CLASS
ENTER
DISP
HDDDVD
546
8
0
79
132
/
CLR
CH
3
HDMI OUT
1
2,3
4
5
9
10
6
7
8
11
13
12
14
15
16
The remote has been conveniently color-coded
according to component control using the follow-
ing system:
! White – Receiver control, TV control
! Blue – Other controls (See the Operating
Instructions in CD-ROM for detail.)
1 u RECEIVER
This switches between standby and on for this
receiver.
2 MULTI OPERATION
Use this button to perform multi operations.
3 RCU SETUP
Use to input the preset code when making
remote control settings and to set the remote
control mode.
4 Input function buttons
Press to select control of other components.
Use INPUT SELECT c/ d to select the input
function (page 28).
5 TV CTRL
Set the preset code of your TV’s manufacturer
when controlling the TV.
6 TV CONTROL buttons
These buttons are dedicated to control the TV
assigned to the TV CTRL button.
7 Receiver setting buttons
Press first to access:
! AUDIO PARAMETER – Use to access the
Audio options.
! VIDEO PARAMETER – Use to access the
Video options.
! HOME MENU – Use to access the Home
Menu.
! RETURN – Press to confirm and exit the
current menu screen.
8 i/j/k/l/ENTER
Use the arrow buttons when setting up your
surround sound system and the Audio or Video
options.
9 Receiver Control buttons
Press first to access:
! AUTO/ALC/DIRECT – Switches between
Auto Surround, Auto Level Control, Optimum
Surround mode and Stream Direct mode.
! STEREO – Press to select stereo playback
mode.
! STANDARD – Press for Standard decoding
and to switch various modes (2 Pro Logic,
Neo:X, etc.) (page 28).
! ADV SURR – Use to switch between the
various surround modes (page 28).
! THX – Press to select a Home THX listening
mode (page 29).
! PHASE CTRL – Press to switch on/off Phase
Control or Full Band Phase Control.
! STATUS – Press to check selected receiver
settings.
! PQLS – Press to select the PQLS setting.
! HDMI OUT – Switch the HDMI output
terminal.
! SIGNAL SEL – Use to select an input signal.
! MCACC – Press to switch between MCACC
presets.
! SLEEP – Use to put the receiver in sleep
mode and select the amount of time before
sleep.
! CH LEVEL – Press repeatedly to select a
channel, then use k/l to adjust the level.
! A.ATT – Attenuates (lowers) the level of an
analog input signal to prevent distortion.
! DIMMER – Dims or brightens the display.
10 MULTI-ZONE select buttons
Switch to perform operations in ZONE 2 and
ZONE 3.
11 Remote control LED
Lights when a command is sent from the
remote control.
12 OPTION
The preset codes of desired devices can be
registered in the remote control and button
operations can be registered using the learning
mode.
13
Switches the remote to control the receiver
(used to select the white commands).
Switch to perform operations in the main zone.
Also use this button to set up surround sound.
14 MASTER VOLUME +/–
Use to set the listening volume.
15 MUTE
Mutes the sound or restores the sound if it has
been muted (adjusting the volume also restores
the sound).
16 LIGHT
Press to turn on/off the illumination for the
buttons.
The way the buttons light can be selected from
four modes.

Table of Contents

Other manuals for Pioneer SC-LX85

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Pioneer SC-LX85 and is the answer not in the manual?

Pioneer SC-LX85 Specifications

General IconGeneral
Frequency range5 - 100000 Hz
Output impedance6 Ω
Input sensitivity400 mV
Audio output channels9.2 channels
Audio A/D Converter (ADC)24-bit/192kHz
Signal-to-Noise Ratio (SNR)103 dB
Power output per channel (1KHz@6 Ohm)190 W
Power output per channel (20-20KHz@8 Ohm)- W
HDMI in7
AC (power) inYes
Composite video in4
Digital audio coaxial in2
Ethernet LAN (RJ-45) ports1
Component video (YPbPr/YCbCr) in3
Headphone connectivity3.5 mm
Connectivity technologyWired & Wireless
Speakers connectivity typeRCA
Wi-Fi-
Supported radio bandsAM, FM
Preset stations quantity63
Optical drive includedNo
Product colorBlack
Audio decodersDolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-ES, DTS-HD, THX Surround EX
Volume controlRotary
Apple docking compatibilityiPad, iPhone, iPod
Graphical user interface (GUI) languageEnglish, French, German, Italian, Russian, Spanish
AC input voltage220-230 V
AC input frequency50 - 60 Hz
THX-certifiedTHX
Weight and Dimensions IconWeight and Dimensions
Depth442 mm
Width435 mm
Height185 mm
