PIPER AIRCRAFT CORPORATION SECTION 7
PA-28-181, ARCHER IE DESCRIPTION & OPERATION
. ALTIMETER
. AIRSPEED INDICATOR
. PITOT HEAT SWITCH ;
. VERTICAL SPEED INDICATOR NN 5
. PITOT READ
. DRAIN VALVES
. ALTERNATE STATIC SOURCE
NOU
P
WH

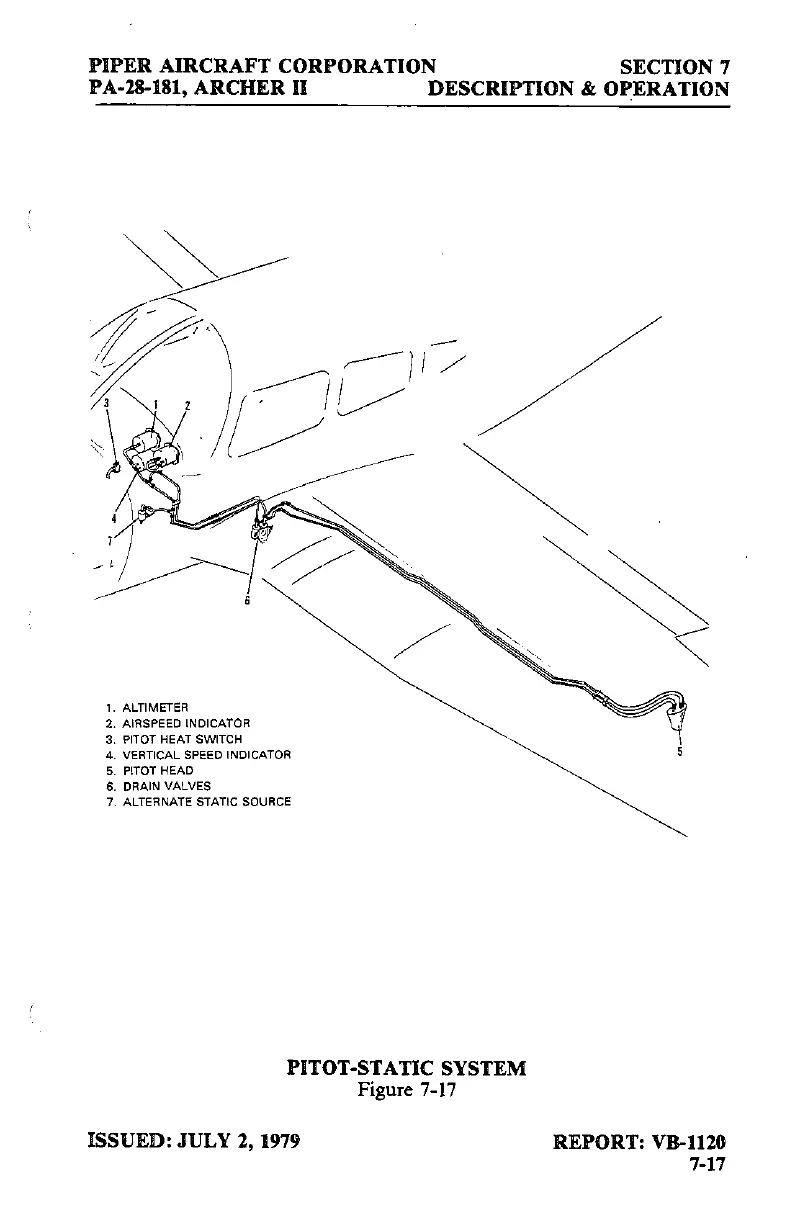

PITOT-STATIC SYSTEM
Figure 7-17
ISSUED: JULY 2, 1979 REPORT: VB-1120
7-17
