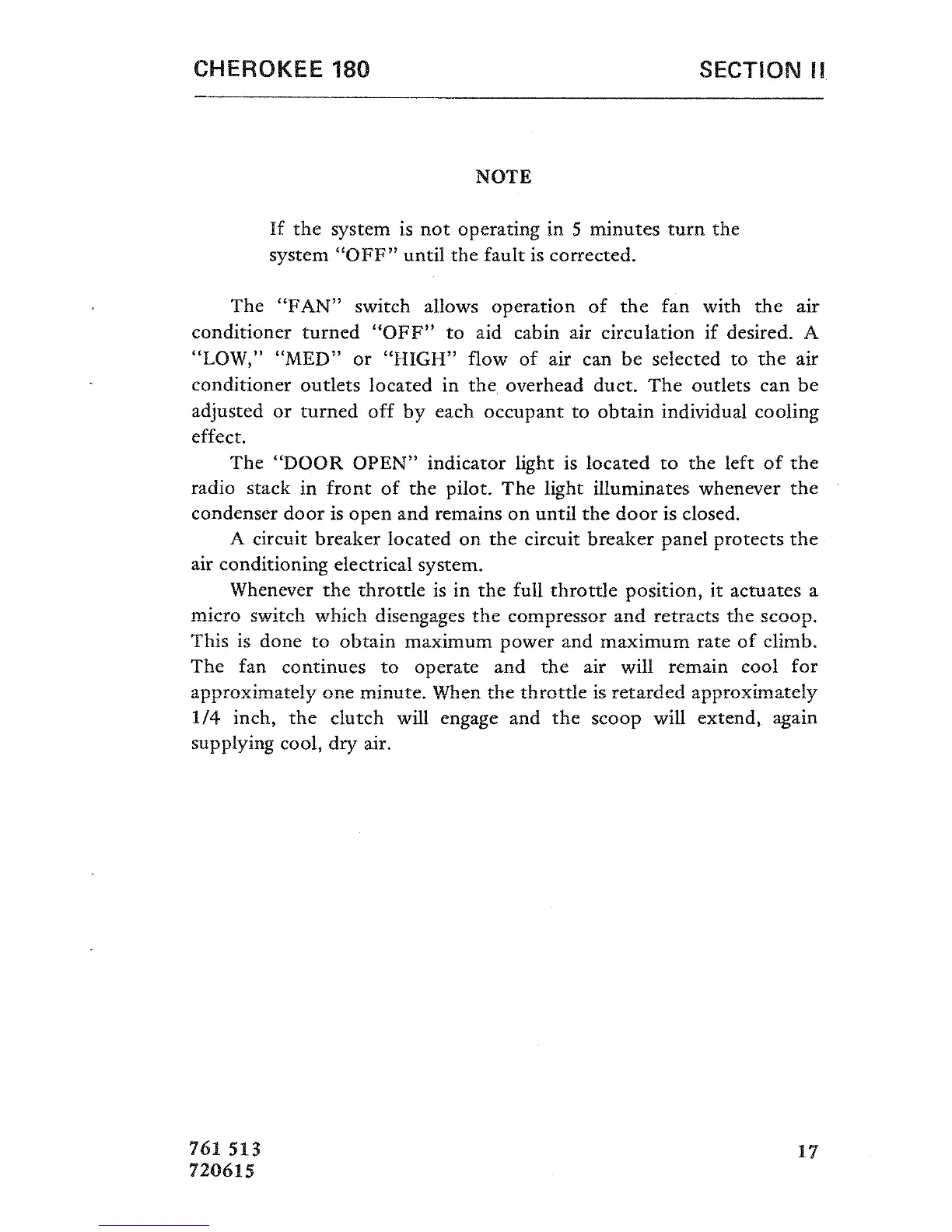

CHEROKEE
180
SECTION
II
NOTE
If the system
is
not operating in
5
minutes
turn the
system "OFF"
until
the fault
is corrected.
The "FAN" switch
allows
operation of the
fan with the air
conditioner
turned
"OFF" to
aid
cabin air circulation
if desired.
A
"LOW,"
"MED" or
"HIGH"
flow of
air can be
selected to
the air
conditioner
outlets
located in the overhead duct. The
outlets can
be
adjusted
or
turned
off
by each occupant
to
obtain
individual
cooling
effect.
The "DOOR OPEN" indicator light is located to
the
left
of
the
radio stack in front of the pilot. The light
illuminates whenever
the
condenser
door
is open and remains on until the door is
closed.
A
circuit breaker
located on the circuit breaker
panel protects the
air
conditioning
electrical system.
Whenever the
throttle is in the full throttle
position,
it
actuates a
micro switch which
disengages the compressor and
retracts
the
scoop.
This
is
done to obtain
maximum power and
maximum
rate
of
climb.
The
fan continues
to
operate
and the air will
remain cool
for
approximately one minute. When the throttle is
retarded
approximately
1/4
inch,
the
clutch will engage and
the
scoop will
extend,
again
supplying cool,
dry air.
