LUIRICANT
THE PIPER C
C
RUDDER HINGES
100
AND HORN
STABILATOR
100
HINGES
STABILATOR TRIM
100
TAB
STABILATOR
AD.I.JSTAENT
100
MECHANISM
STABILATOR
CONTROL
PULLEYS
100
BAGGAGE DOOR
AND MAIN DOOR
100
HINGES
AILERON AND FLAP
TORQUE TUBE.
PULLEYS,
BELLCRANK.
LEFT
AHO
RIGHT
100
AILERON HINGES
SO
RAIN LANDING GEAR so
TORQUE LINKS
MAIN KNEEL
BEARINGS
LEFT AND RIGHT
PIOUS
I. FUEL SYSTEM • THE FOLLOYING POINTS REQUIRE REGULAR
SERVICING .• FUEL PURI STRAINER. CARBURETOR SCREEN.
FILTER BOwL.
attic0
DRAIN UNIT.
2. LANDNG GEAR STRUTS FOLLOW INSTRUCTION PLACARD
ON OLEO STRUT.
1. MISCELLANEOUS DURING ROUTINE MAINTENANCE CHECKS.
APPLY LUBRICATION TO MISCELLANEOUS LINKAGES.
4. BATTERY • CHECK BATTERY FLUID LEVEL
a.
BATTERY
CONDITION EVERY 23
HOURS.
100
670615
TION V

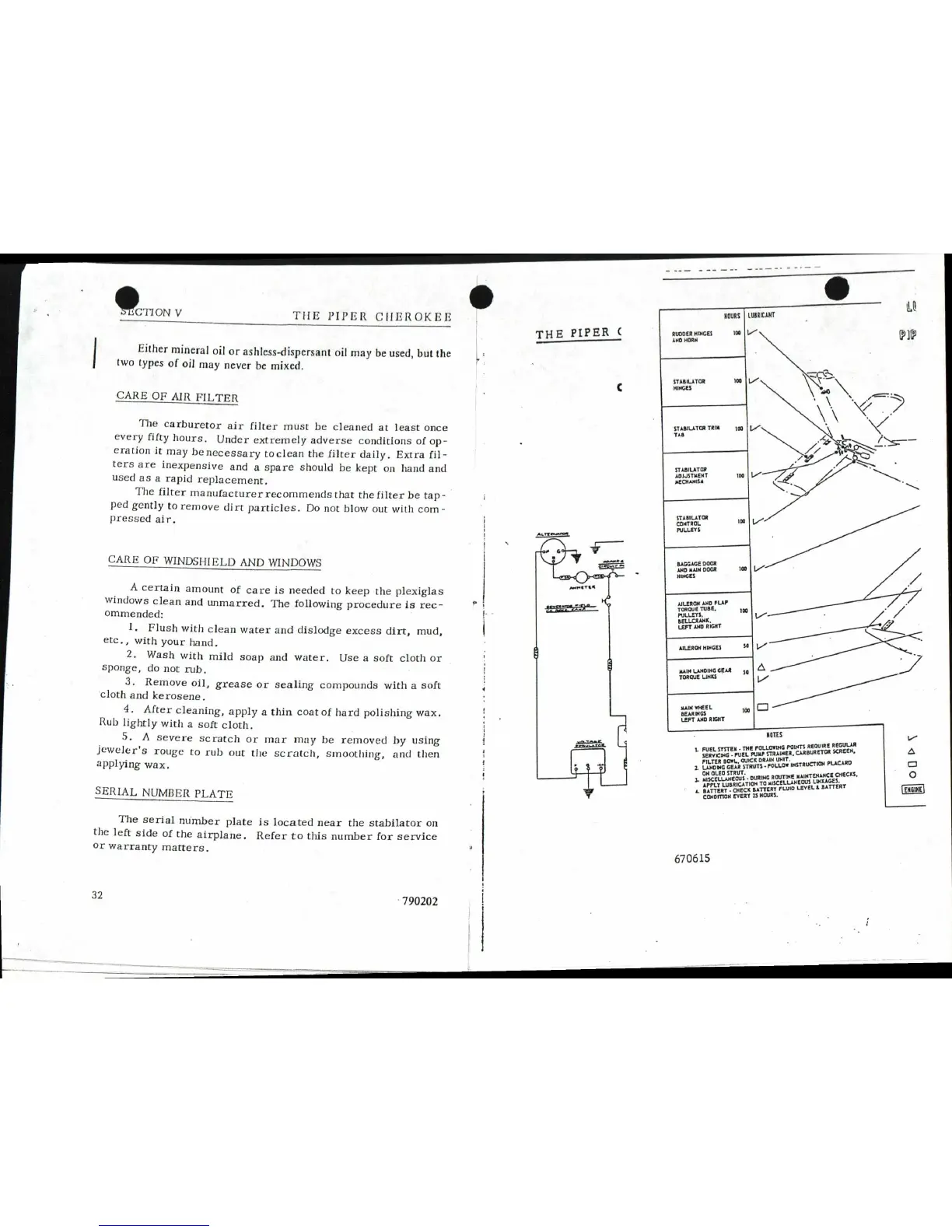

TINE PIPER CHEROKEE
Either mineral oil or ashless-dispersant oil may be used, but the
two types of oil may never be mixed.
CARE OF AIR FILTER
The carburetor air filter must be cleaned at least
once
every fifty hours. Under extremely adverse conditions of op-
eration it may be necessary to clean the filter daily. Extra fil-
ters are inexpensive and a spare should be kept on hand and
used as a rapid replacement.
The filter manufacturer recommends that the filter be tap-
ped gently to remove dirt particles. Do not blow out with com-
pressed air.
CARE OF WINDSHIELD AND WINDOWS
A certain amount of care is needed to keep the plexiglas
windows clean and unmarred. The following procedure is rec-
ommended:
1.
Flush with clean water and dislodge excess dirt, mud,
etc., with your hand.
2.
Wash with mild soap and water. Use a soft cloth or
sponge,
do not rub.
3.
Remove oil, grease or sealing compounds with a soft
cloth and kerosene.
Rub lightly with a soft cloth.
4.
After cleaning, apply a thin coat of hard polishing wax.
5.
A severe scratch or mar may be removed by using
jeweler's rouge to rub out the scratch, smoothing, and then
applying wax.
SERIAL NUMBER PLATE
The serial number plate is located near the stabilator on
the left side of the airplane. Refer to this number for service
or warranty matters.
32
790202
