PARTS BREAKDOWN

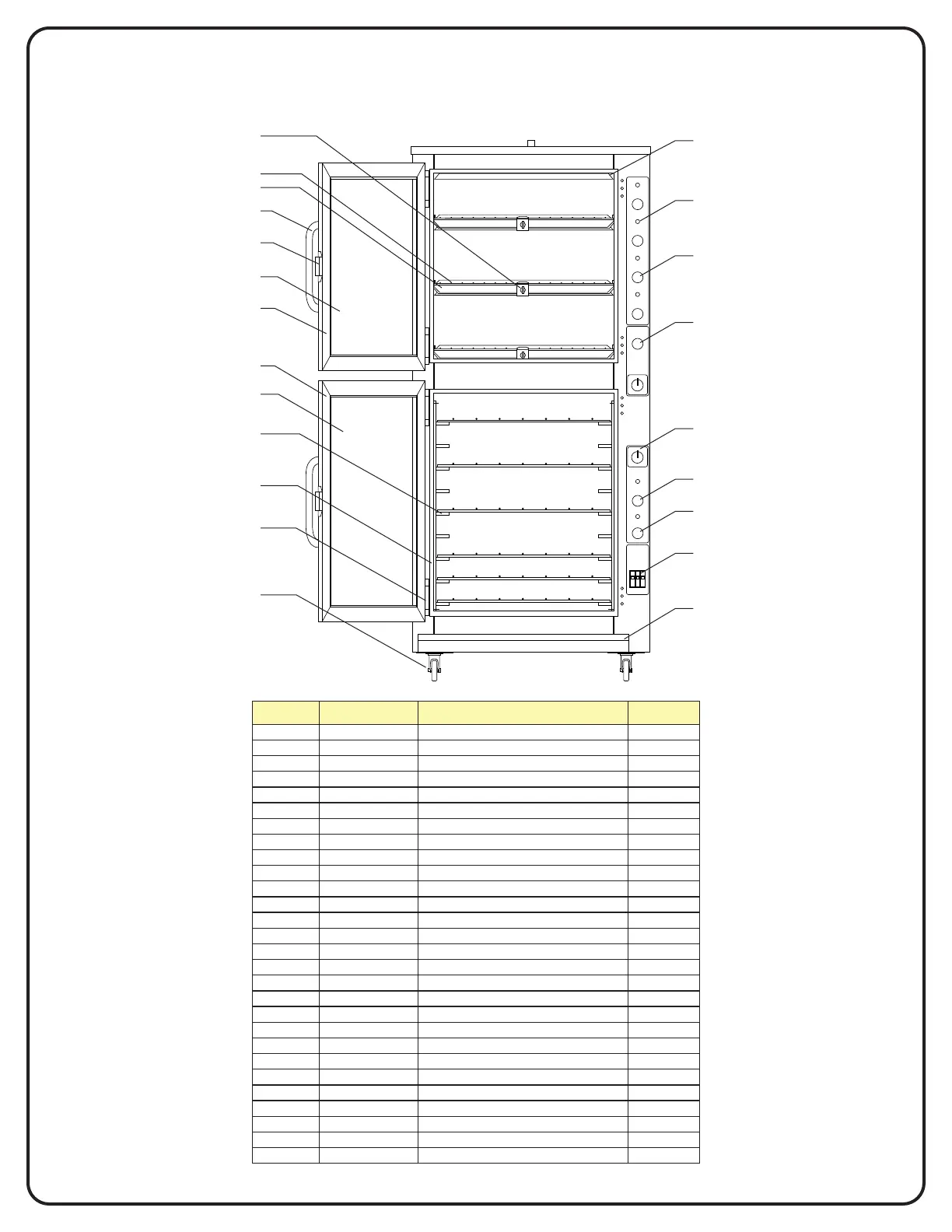

FRONT VIEW
ITEM NO. PART NUMBER DESCRIPTION QUANTITY
1 705160 INDICATOR LIGHT, RED 250V 6
2 706103 KNOB, ROGAN CONTROL 7
2 705721 THERMOSTAT, OVEN 450 DEG. 4
3 706155 TIMER, MOTOR DRIVEN 60 MIN 1
4 705484 SWITCH, DISCONNECT 3-POLE 30A 2
5 705705 THERMOSTAT, PROOFER 60-125 DEG. 1
6 705757 SWITCH, INFINITE 120V HUM. CONTROL 1
7 705529 CIRCUIT BREAKER, 20A 3
8 104106 DRIP TROUGH 1
9 101106 STOP, BAKE RACK 3
9 401040 SCREW, SHOULDER THUMB 3
10 302000 RACK, BAKE - FOR OVEN 3
11 101041 DECK, 29.5” x 25.125” 3
12 305002 HANDLE, DOOR 2
12 305002A PHENOLIC SPACER 4
12 400285 SCREW, 10-32 x 3.5” FLAT HEAD 4
13 305612 MAGNETS, S/S ENCLOSED 2
14 200016 GLASS, OVEN 22.5” x 29.5” 1
15 306003 DOOR ASSEMBLY, OVEN 1
16 306077 DOOR ASSEMBLY, PROOFER 1
17 200017 GLASS, PROOFER 22.5” x 29.5” 1
18 300012 RACK, SIDE SHELF, NYLON 2
18 301000 RACK, HORIZONTAL PROOFER, NYLON 6
19 305206 GASKET, GRAY BULB 19
20 305012 HINGE, ALUMINUM 4
21 CSTR-3POP CASTER W/O BRAKE 2
21 CSTR-3POPB CASTER W/ BRAKE 2
22 101034 DECK LINER (22.375” x 26.5”) 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
