PARTS BREAKDOWN
PROOFER
17
REV
THREE PLACE DECIMAL
PIPER PRODUCTS, INC. ANY
WITHOUT THE WRITTEN PERMISSION OF
msweeney
PIPER PRODUCTS, INC.
DRAWING IS THE SOLE PROPERTY OF
THE INFORMATION CONTAINED IN THIS
PROOFER PARTS
SHEET 1 OF 1
REPRODUCTION IN PART OR AS A WHOLE
UNLESS OTHERWISE SPECIFIED:
05-06-20
SCALE:
manual, configuration:Default
DO NOT SCALE DRAWING
DWG. NO.
PIPER PRODUCTS IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
DATE
NAME
TITLE:
SIZE
B
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL

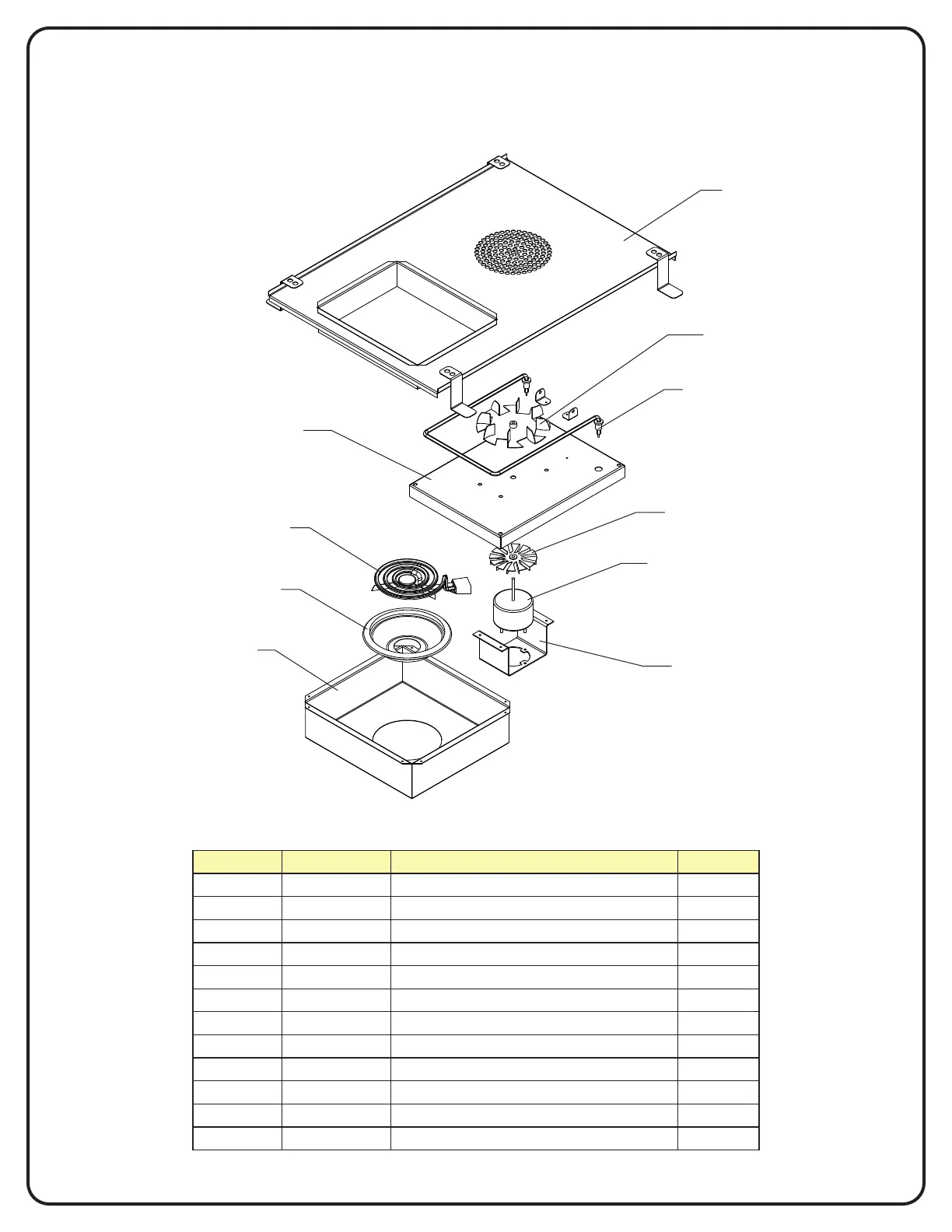

Proofer parts assembly for
ITEM NO. PART NUMBER DESCRIPTION QUANTITY
1 704761 ELEMENT, U-SHAPED 120V / 750W 1
2 705846 FAN BLADE, RADIAL 6 1/4” 1
3 705705 THERMOSTAT, PROOFER 60-125 1
4 705847 FAN BLADE, RADIAL 4” 1
5 706400B MOTOR, SHADED POLE 115V/60 HZ 1
6 305506 PAN, WATER, STAINLESS STEEL 1
7 704410* ELEMENT, RANGE TYPE HUMIDITY, 120V, 1250W 1
8 704414 BOWL, REFLECTOR 1
9 305502 MOUNTING PAN 1
10 105190 REMOVABLE FALSE BOTTOM 1
11 102158 BRACKET, MOTOR, RADIAL FAN 1
12 102162 MOTOR MOUNT 1
10
1
5
4
7
8
9
11
12
2
*Contact Piper tech support for special volatages
